TL42WW05000 APEM On-(On) Momentary Subminiature Washable PCB Toggle Switch DPDT

by APEM
SKU 487239

MPN: TL42WW05000

Availability:
797 in stock
Original price £2.79 - Original price £2.79
Original price
£2.79
£2.79 - £2.79
Current price £2.79

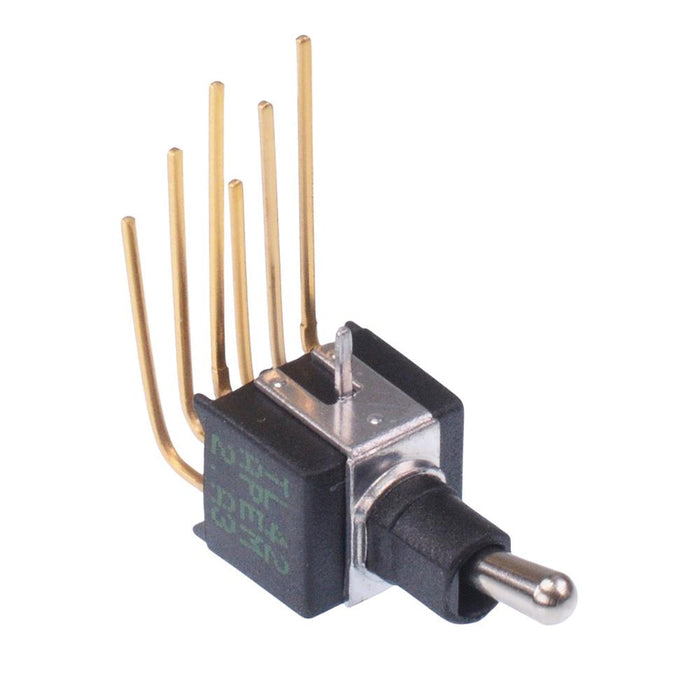

The TL42WW05000 is a momentary sub-miniature toggle switch manufactured by APEM featuring DPDT contacts, designed for PCB mounting. The toggle switch features a single piece sealed case making them suitable for a wide range of applications including telecommunications.

  • On-(On) momentary operation
  • DPDT contacts
  • Right angle PCB terminals
  • Vertical PCB mounting
  • Short lever
  • Gold plated brass terminals
  • 2.54mm pitch
  • Rating: 0.4A 20VAC/DC
  • Specification
    Actuation Momentary
    Back Order Lead Time 10 Days
    Contact Configuration DPDT
    Contact Material Gold Plated Brass
    Contact Rating 0.4A 20AC/DC
    Current Rating 0.4A
    Electrical Life 60,000 Cycles
    Illuminated No
    Mounting Style PCB
    Number of Poles 2
    Number of Positions 2
    Operating Temperature -30°C to +85°C
    Pitch 2.54mm
    Product Series TL
    Switch Operation On-(On)
    Terminal Type Through Hole
    Voltage Rating 20VAC/DC
