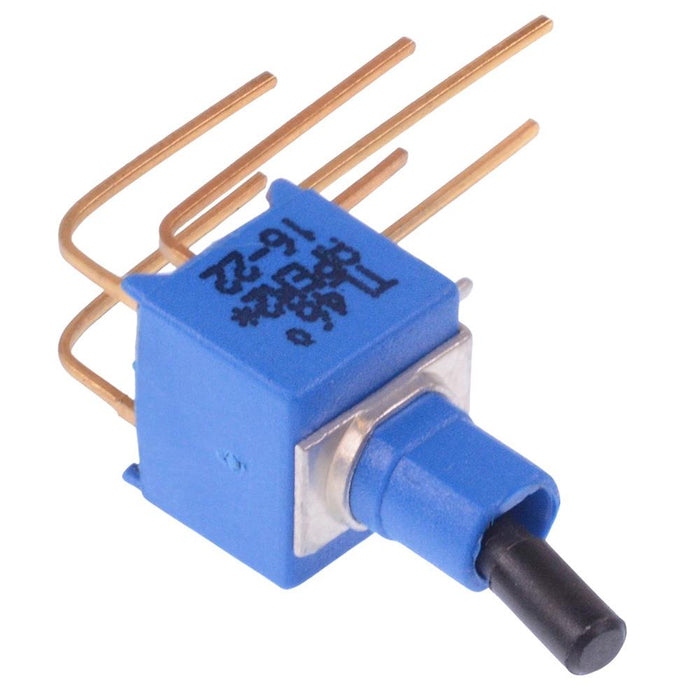

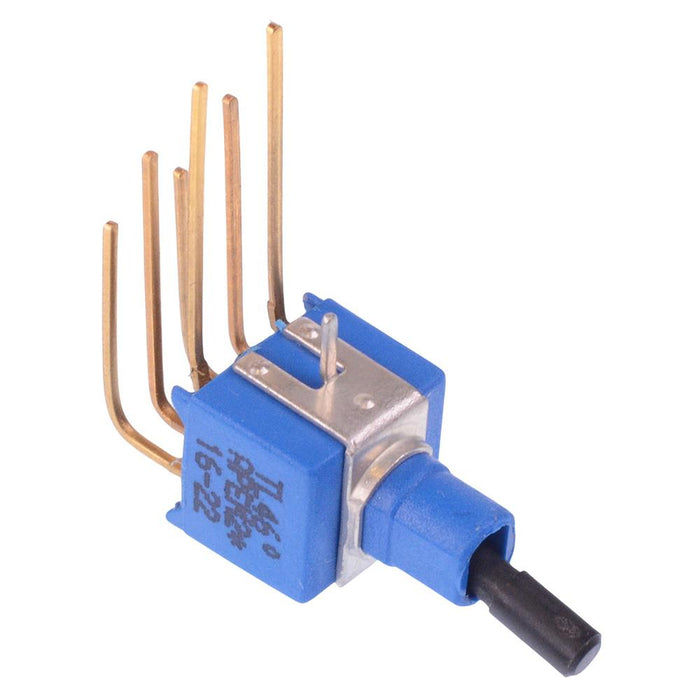

TL46WW04000 APEM On-On Subminiature Washable PCB Toggle Switch DPDT
by APEM
SKU 487354
MPN: TL46WW04000
Availability:
171 in stock
Original price
£5.81
-
Original price
£5.81
Original price
£5.81
£5.81
£5.81
-
£5.81
Current price
£5.81
The TL46WW04000 is a sub-miniature toggle switch manufactured by APEM featuring DPDT contacts, designed for PCB mounting. The toggle switch features a single piece sealed case making them suitable for a wide range of applications including telecommunications.
On-On operation DPDT contacts Vertical mounting Right angle PCB terminals Short insulated lever Gold plated brass terminals 2.54mm pitch Rating: 0.4A 20VAC/DC
Specification
| Actuation | Latching |
| Back Order Lead Time | 10 Days |
| Contact Configuration | DPDT |
| Contact Material | Gold Plated Brass |
| Contact Rating | 0.4A 20AC/DC |
| Current Rating | 0.4A |
| Electrical Life | 60,000 Cycles |
| Illuminated | No |
| Mounting Style | PCB |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Operating Temperature | -30°C to +85°C |
| Pitch | 2.54mm |
| Product Series | TL |
| Switch Operation | On-On |
| Terminal Type | Through Hole |
| Voltage Rating | 20VAC/DC |
