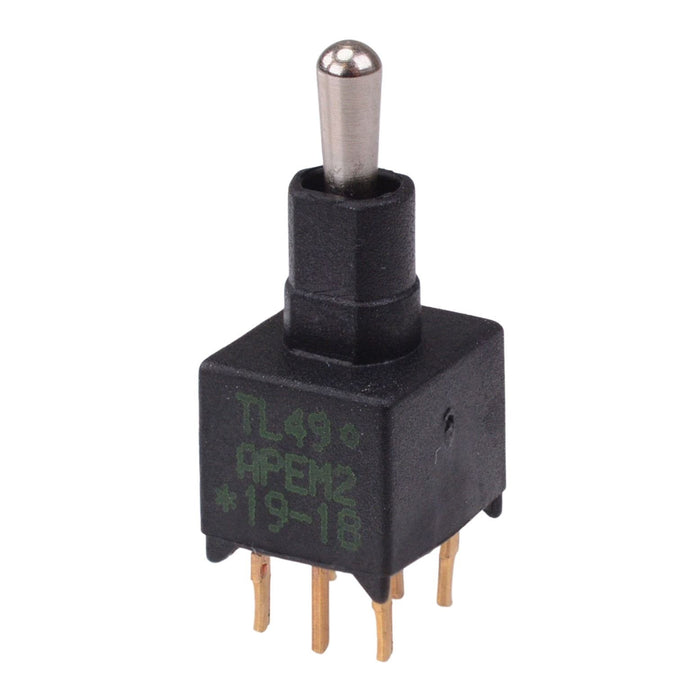

TL49P005000 On-Off-On Sub-Miniature PCB Toggle Switch DPDT APEM
by APEM
SKU 486207
MPN: TL49P005000
Availability:
48 in stock
Original price
£6.79
-
Original price
£6.79
Original price
£6.79
£6.79
£6.79
-
£6.79
Current price
£6.79
The TL49P005000 is a sub-miniature toggle switch manufactured by APEM featuring DPDT contacts, designed for PCB mounting. The toggle switch features a single piece sealed case making them suitable for a wide range of applications.
On-Off-On operation DPDT contacts PCB mounting Gold plated brass terminals 2.54mm pitch Rating: 0.4A 20V
Specification
| Actuation | Latching |
| Back Order Lead Time | 120 |
| Contact Configuration | DPDT |
| Contact Material | Gold Plated Brass |
| Contact Rating | 0.4A 20VAC/DC |
| Current Rating | 0.4A |
| Electrical Life | 30,000 Cycles |
| Illuminated | No |
| Material | PBT |
| MOQ | 1 |
| Mounting Style | PCB |
| Number of Poles | 2 |
| Number of Positions | 3 |
| Operating Temperature | -30°C to 85°C |
| Pitch | 2.54mm |
| Product Series | TL |
| Switch Operation | On-Off-On |
| Terminal Type | Solder |
| Voltage Rating | 20VAC/DC |
