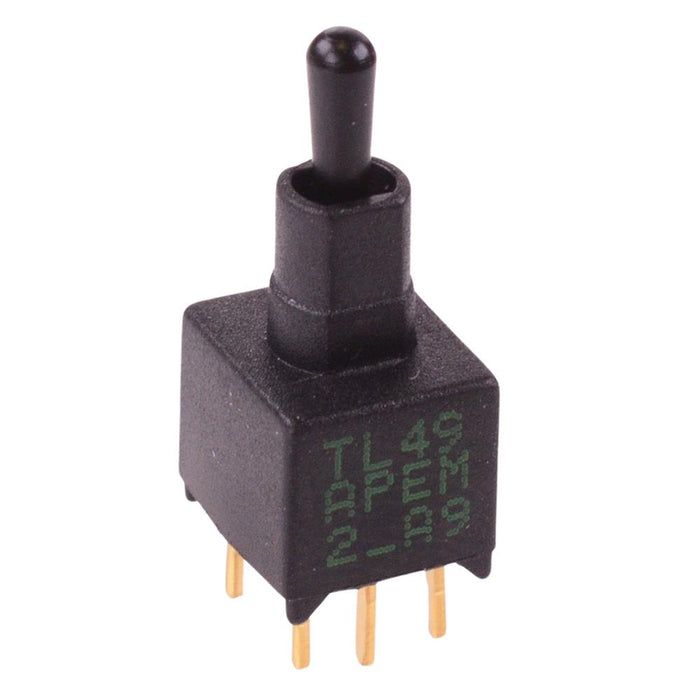

TL49P005100 APEM On-Off-On Subminiature Washable PCB Toggle Switch DPDT
by APEM
SKU 487385
MPN: TL49P005100
Availability:
395 in stock
Original price
£2.64
-
Original price
£2.64
Original price
£2.64
£2.64
-
£2.64
Current price
£2.64
The TL49P005100 is a sub-miniature toggle switch manufactured by APEM featuring DPDT contacts, designed for PCB mounting. The toggle switch features a single piece sealed case making them suitable for a wide range of applications including telecommunications.
On-Off-On operation DPDT contacts Straight PCB terminals Black short lever Gold plated brass terminals 2.54mm pitch Rating: 0.4A 20VAC/DC
Specification
Actuation | Latching |
Back Order Lead Time | 10 Days |
Contact Configuration | DPDT |
Contact Material | Gold Plated Brass |
Contact Rating | 0.4A 20AC/DC |
Current Rating | 0.4A |
Electrical Life | 30,000 Cycles |
Illuminated | No |
Mounting Style | PCB |
Number of Poles | 2 |
Number of Positions | 3 |
Operating Temperature | -30°C to +85°C |
Pitch | 2.54mm |
Product Series | TL |
Switch Operation | On-Off-On |
Terminal Type | Through Hole |
Voltage Rating | 20VAC/DC |
