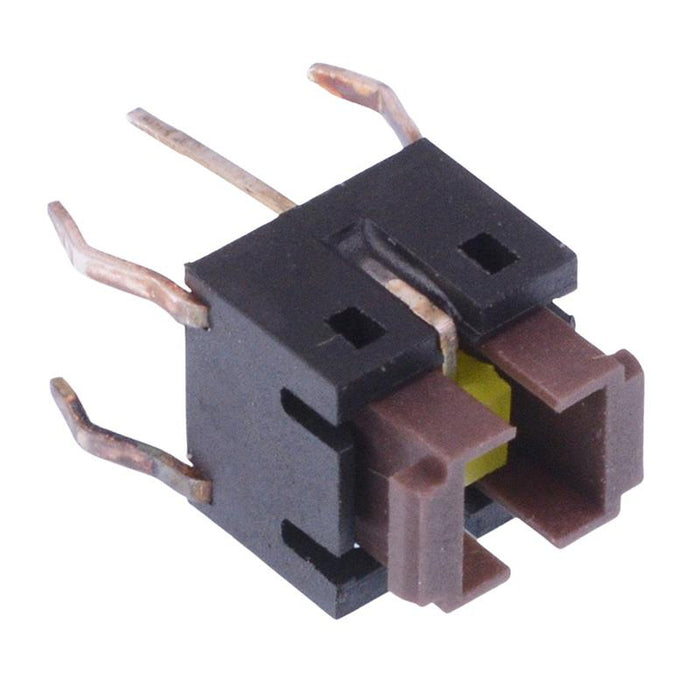

TLL62AWV White LED 6x6mm Through Hole PCB Tactile Switch 160gf SPST
by APEM
SKU 488166
MPN: TLL62AWV
Availability:
Out of stock
Sold out
Original price
£1.35
-
Original price
£1.35
Original price
£1.35
£1.35
£1.35
-
£1.35
Current price
£1.35
The TLL62AWV is an illuminated tactile switch featuring a 6x6mm square package and 160gf operating force. The switch features a 6.5 x 4.5mm pitch and is suitable for through hole PCB applications including computing and telecommunications.
White LED Operating force: 160gf Through hole mounting 6.1 x 6.1mm square package Mounting pitch: 6.5 x 4.5mm Contact rating: 50mA 12VDC LED forward voltage: 3.0V LED viewing angle: 140dg LED intensity: 350mcd Fits KTL series of caps
Specification
| Actuation | Momentary |
| Back Order Lead Time | 10 Days |
| Contact Configuration | SPST |
| Contact Rating | 50mA 12VDC |
| Current Rating | 50mA |
| Electrical Life | 500,000 Cycles |
| Height | 7mm |
| Illumination Colour | White |
| Illumination Voltage | 3.0V |
| Mounting Style | PCB |
| Number of Positions | 2 |
| Operating Force | 160gf |
| Operating Temperature | -25°C to +70°C |
| Pitch | 6.5 x 4.5mm |
| Product Series | TLL |
| Switch Operation | Off-(On) |
| Terminal Type | Through Hole |
| Voltage Rating | 12VDC |
