TLL62BRV Red LED 6x6mm Through Hole PCB Tactile Switch 160gf SPST
by APEM
SKU 488133
MPN: TLL62BRV
Availability:
225 in stock
Original price
£0.99
-
Original price
£0.99
Original price
£0.99
Inc VAT
£0.99
-
£0.99
Current price
£0.99
Inc VAT

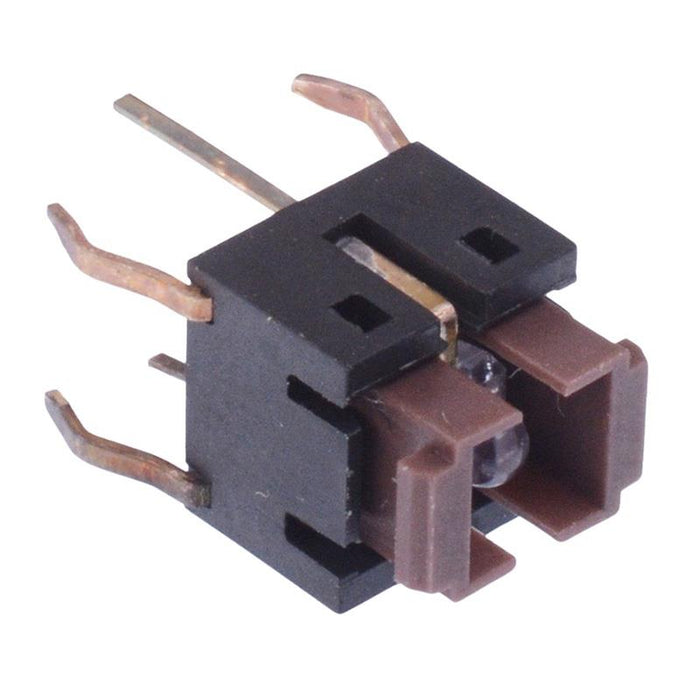

The TLL62BRV is an illuminated tactile switch featuring a 6x6mm square package and 160gf operating force. The switch features a 6.5 x 4.5mm pitch and is suitable for through hole PCB applications including computing and telecommunications.
Red LED Operating force: 160gf Through hole mounting 6.1 x 6.1mm square package Mounting pitch: 6.5 x 4.5mm Contact rating: 50mA 12VDC LED forward voltage: 2.0V LED viewing angle: 30dg LED intensity: 1000mcd LED wavelength: 630nm Fits KTL series of caps
Specification
| Actuation | Momentary |
| Back order lead time | 10 Days |
| Contact configuration | SPST |
| Contact rating | 50mA 12VDC |
| Current rating | 50mA |
| Electrical life | 500,000 Cycles |
| Height | 7mm |
| Illumination colour | Red |
| Illumination voltage | 2.0V |
| Mounting style | PCB |
| Number of positions | 2 |
| Operating force | 160gf |
| Operating temperature | -25°C to +70°C |
| Pitch | 6.5 x 4.5mm |
| Product series | TLL |
| Switch operation | Off-(On) |
| Terminal type | Through Hole |
| Voltage rating | 12VDC |
