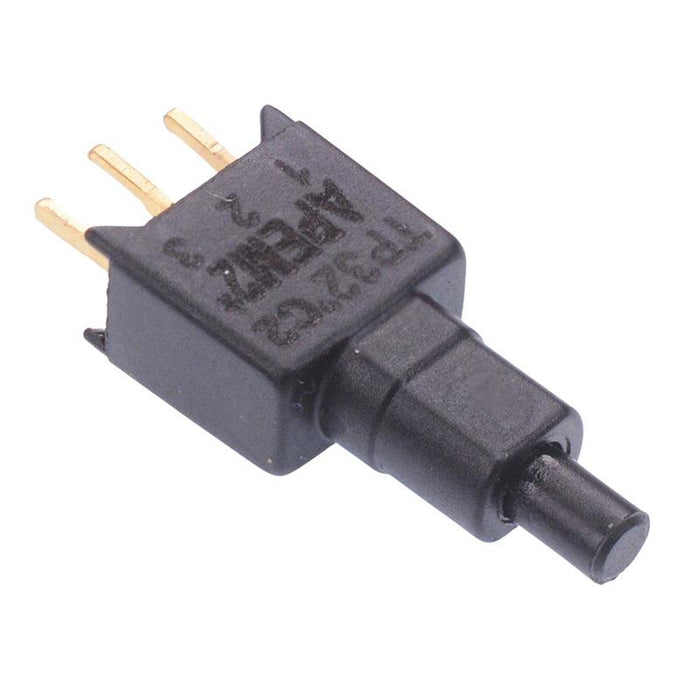

TP32P008000 On-(On) Momentary Sub-Miniature PCB Push Button Switch SPDT APEM
by APEM
SKU 486209
MPN: TP32P008000
Availability:
49 in stock
Original price
£5.46
-
Original price
£5.46
Original price
£5.46
£5.46
-
£5.46
Current price
£5.46
The TP32P008000 is a sub-miniature momentary push button switch manufactured by APEM featuring SPDT contacts, designed for PCB mounting. The switch features a single piece sealed case making them suitable for a wide range of applications.
On-(On) momentary operation SPDT contacts PCB mounting Gold plated brass terminals 2.54mm pitch Rating: 0.4A 20V
Specification
| Actuation | Momentary |
| Back Order Lead Time | 10 Days |
| Contact Configuration | SPDT |
| Contact Material | Gold Plated Brass |
| Contact Rating | 0.4A 20VAC/DC |
| Current Rating | 0.4A |
| Electrical Life | 60,000 Cycles |
| Illuminated | No |
| Illumination Colour | Non Illuminated |
| Material | PBT |
| Mounting Style | PCB |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -30°C to 85°C |
| Pitch | 2.54mm |
| Product Series | TP |
| Switch Operation | On-(On) |
| Terminal Type | Solder |
| Voltage Rating | 20VAC/DC |
