TP32W008000 APEM On-(On) Momentary Sub-Miniature PCB Right Angle Horizontal Push Button Switch SPDT

SKU 486210

MPN: TP32W008000

97 in stock
Original price £4.96 - Original price £4.96
Original price
£4.96 Inc VAT
£4.96 - £4.96
Current price £4.96 Inc VAT

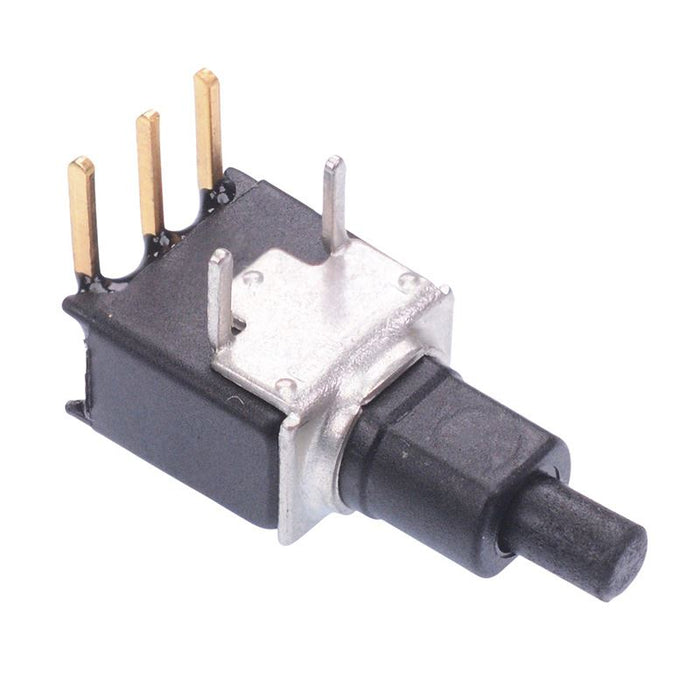

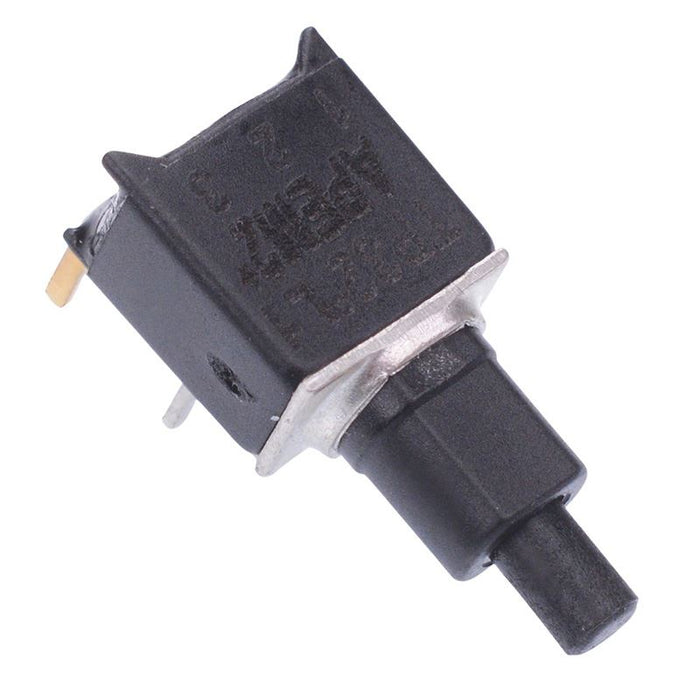

The TP32W008000 is a sub-miniature momentary push button switch manufactured by APEM featuring SPDT contacts, designed for right angle horizontal PCB mounting. The switch features a single piece sealed case making them suitable for a wide range of applications.

  • On-(On) momentary operation
  • SPDT contacts
  • Right angle horizontal PCB mounting
  • Gold plated brass terminals
  • 2.54mm pitch
  • Rating: 0.4A 20V
  • Specification
    Actuation Momentary
    Back order lead time 10 Days
    Contact configuration SPDT
    Contact material Gold Plated Brass
    Contact rating 0.4A 20VAC/DC
    Current rating 0.4A
    Electrical life 60,000 Cycles
    Illuminated No
    Illumination colour Non Illuminated
    Material PBT
    Mounting style PCB
    Number of poles 1
    Number of positions 2
    Operating temperature -30°C to 85°C
    Pitch 2.54mm
    Product series TP
    Switch operation On-(On)
    Terminal type Solder
    Voltage rating 20VAC/DC
