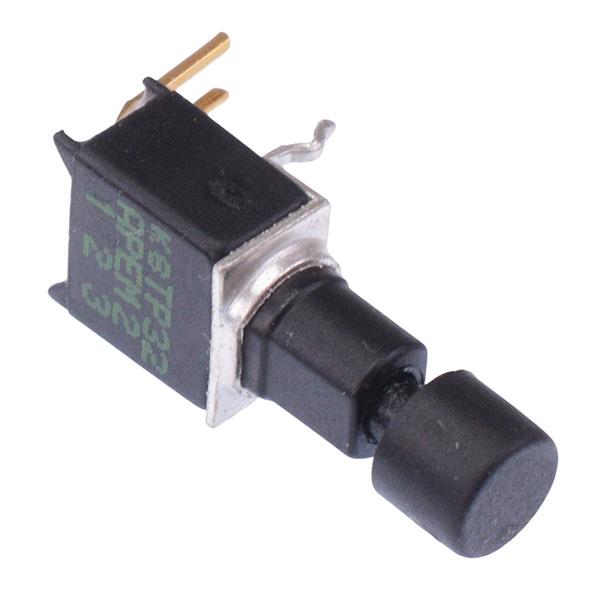

TP32W00855142 APEM On-(On) Momentary Subminiature Washable PCB Push Button Switch SPDT

SKU 487709

MPN: TP32W00855142

107 in stock
Original price £2.38 - Original price £2.38
Original price
£2.38 Inc VAT
£2.38 - £2.38
Current price £2.38 Inc VAT
The TP32W00855142 is a momentary sub-miniature push button switch manufactured by APEM featuring SPDT contacts, designed for PCB mounting. The switch features a single piece sealed case making them suitable for a wide range of applications including telecommunications.

  • On-(On) momentary operation
  • SPDT contacts
  • Right angle PCB terminals
  • Horizontal mounting
  • Long black case
  • Gold plated brass terminals
  • Crimped ground plate pins
  • 2.54mm pitch
  • Rating: 0.4A 20VAC/DC
  • Specification
    Actuation Momentary
    Back order lead time 10 Days
    Contact configuration SPDT
    Contact material Gold Plated Brass
    Contact rating 0.4A 20VAC/DC
    Current rating 0.4A
    Illuminated No
    Mounting style PCB
    Number of poles 1
    Number of positions 2
    Operating temperature -30°C to +85°C
    Pitch 2.54mm
    Product series TP
    Switch operation On-(On)
    Terminal type Through Hole
    Voltage rating 20VAC/DC
