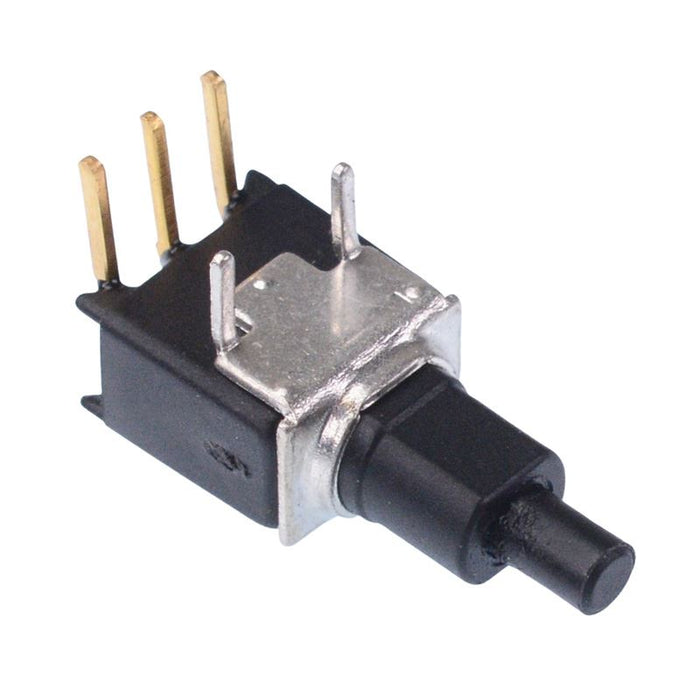

TP32WW08000 APEM On-(On) Momentary Sub-Miniature PCB Right Angle Vertical Push Button Switch SPDT
by APEM
SKU 486211
MPN: TP32WW08000
Availability:
50 in stock, ready to be shipped
Original price
£4.73
-
Original price
£4.73
Original price
£4.73
Inc VAT
£4.73
-
£4.73
Current price
£4.73
Inc VAT
The TP32WW08000 is a sub-miniature momentary push button switch manufactured by APEM featuring SPDT contacts, designed for right angle vertical PCB mounting. The switch features a single piece sealed case making them suitable for a wide range of applications.
On-(On) momentary operation SPDT contacts Right angle vertical PCB mounting Gold plated brass terminals 2.54mm pitch Rating: 0.4A 20V
Specification
| Actuation | Momentary |
| Contact configuration | SPDT |
| Contact material | Gold Plated Brass |
| Contact rating | 0.4A 20VAC/DC |
| Current rating | 0.4A |
| Electrical life | 60,000 Cycles |
| Illuminated | No |
| Illumination colour | Non Illuminated |
| Material | PBT |
| Mounting style | PCB |
| Number of poles | 1 |
| Number of positions | 2 |
| Operating temperature | -30°C to 85°C |
| Pitch | 2.54mm |
| Product series | TP |
| Switch operation | On-(On) |
| Terminal type | Solder |
| Voltage rating | 20VAC/DC |
