TP33W018000 APEM Off-(On) Momentary Sub-Miniature PCB Right Angle Horizontal Push Button Switch SPST
by APEM
SKU 490162
MPN: TP33W018000
Availability:
779 in stock
Original price
£2.44
-
Original price
£2.44
Original price
£2.44
Inc VAT
£2.44
-
£2.44
Current price
£2.44
Inc VAT

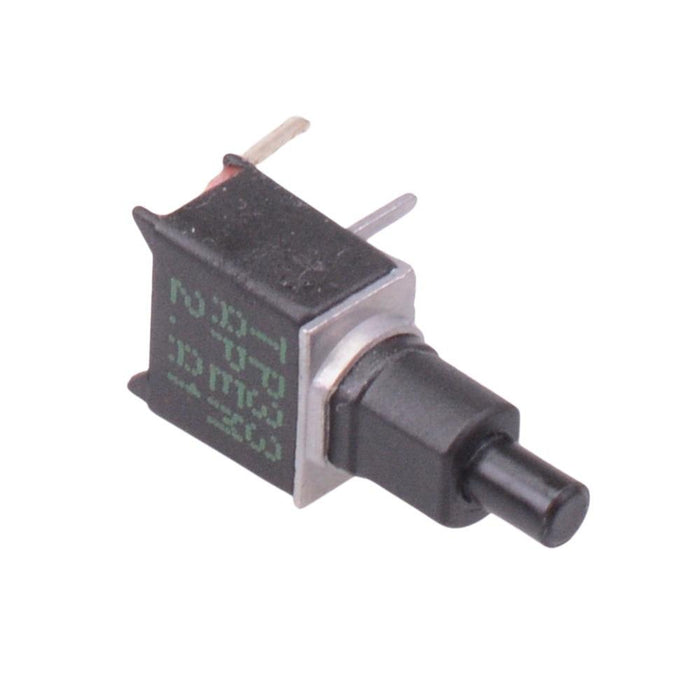

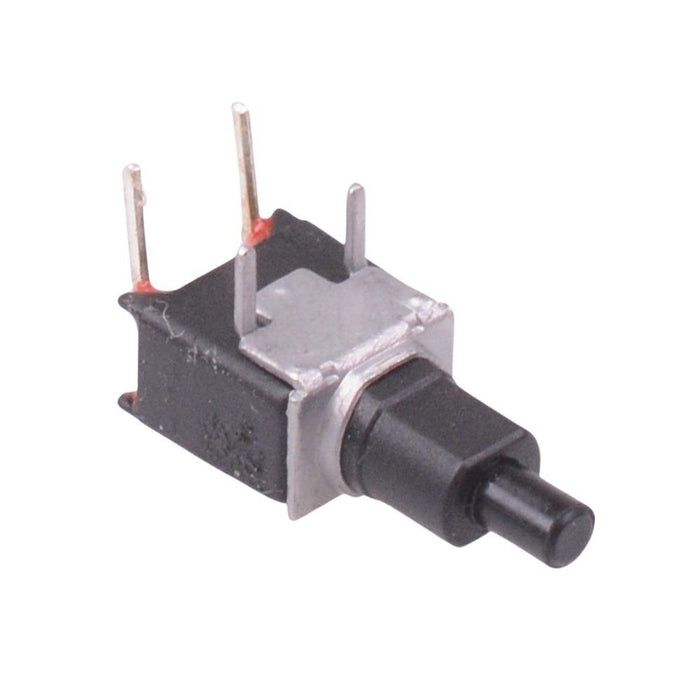

The TP33W018000 is a sub-miniature momentary push button switch manufactured by APEM featuring SPST contacts, designed for right angle horizontal PCB mounting. The switch features a single piece sealed case making them suitable for a wide range of applications.
Off-(On) momentary operation SPST contacts Right angle horizontal PCB mounting Silver plated brass terminals 2.54mm pitch Rating: 0.4A 20V
Specification
| Actuation | Momentary |
| Colour | Black |
| Contact configuration | SPST |
| Contact material | Silver Plated Brass |
| Contact rating | 0.5A 48VAC/DC |
| Current rating | 0.5A |
| Electrical life | 20,000 Cycles |
| Illuminated | No |
| Material | PBT |
| Moq | 1 |
| Mounting style | PCB |
| Number of poles | 1 |
| Number of positions | 2 |
| Operating temperature | -30°C to +85°C |
| Product series | TP |
| Switch operation | Off-(On) |
| Terminal type | Solder |
| Voltage rating | 48VAC/DC |
