TP33WS83565 APEM Off-(On) Momentary Subminiature Washable PCB Push Button Switch SPST
by APEM
SKU 487265
MPN: TP33WS83565
Availability:
695 in stock
Original price
£3.92
-
Original price
£3.92
Original price
£3.92
£3.92
-
£3.92
Current price
£3.92

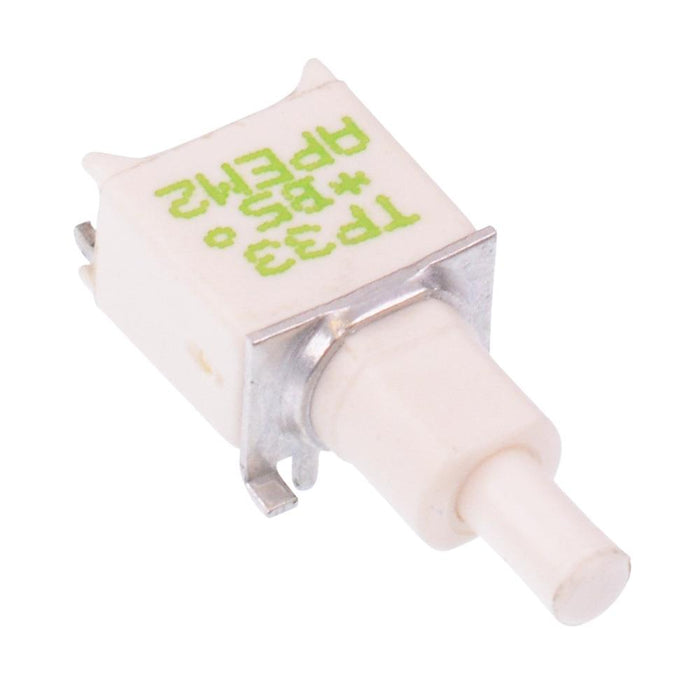

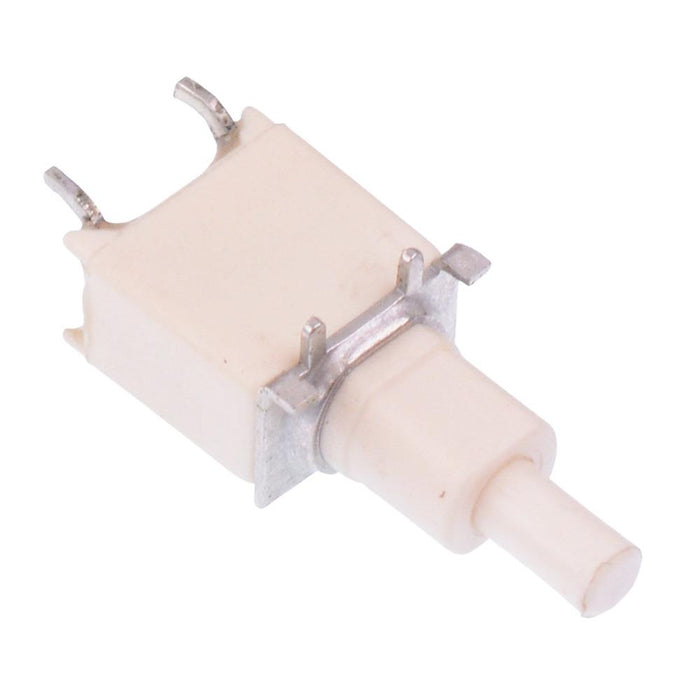

The TP33WS83565 is a momentary sub-miniature push button switch manufactured by APEM featuring SPST contacts, designed for PCB mounting. The switch features a single piece sealed case making them suitable for a wide range of applications including telecommunications.
Off-(On) momentary operation SPST contacts PCB terminals Horizontal mounting White case Gold plated brass terminals 5.08mm pitch Rating: 0.4A 20VAC/DC
Specification
| Actuation | Momentary |
| Back Order Lead Time | 10 Days |
| Contact Configuration | SPST |
| Contact Material | Gold Plated Brass |
| Contact Rating | 0.4A 20VAC/DC |
| Current Rating | 0.4A |
| Illuminated | No |
| Mounting Style | PCB |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -30°C to +85°C |
| Pitch | 5.08mm |
| Product Series | TP |
| Switch Operation | Off-(On) |
| Terminal Type | Surface Mount |
| Voltage Rating | 20VAC/DC |
