TP33WW08000 Off-(On) Momentary Sub-Miniature PCB Right Angle Vertical Push Button Switch SPST APEM
by APEM
SKU 486214
MPN: TP33WW08000
Availability:
50 in stock
Original price
£5.07
-
Original price
£5.07
Original price
£5.07
£5.75
£5.75
-
£5.75
Current price
£5.75

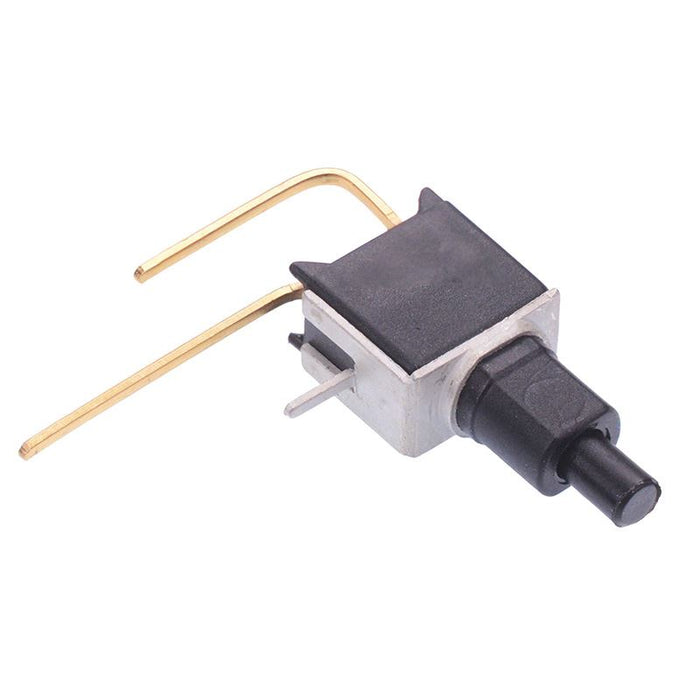

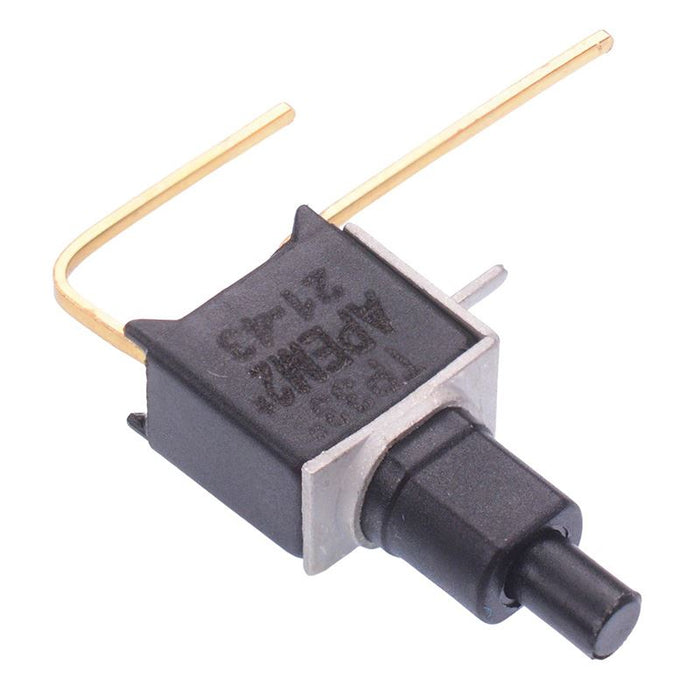

The TP33WW08000 is a sub-miniature momentary push button switch manufactured by APEM featuring SPST contacts, designed for right angle vertical PCB mounting. The switch features a single piece sealed case making them suitable for a wide range of applications.
Off-(On) momentary operation SPST contacts Right angle vertical PCB mounting Gold plated brass terminals 2.54mm pitch Rating: 0.4A 20V
Specification
| Actuation | Momentary |
| Back Order Lead Time | 10 Days |
| Contact Configuration | SPST |
| Contact Material | Gold Plated Brass |
| Contact Rating | 0.4A 20VAC/DC |
| Current Rating | 0.4A |
| Electrical Life | 60,000 Cycles |
| Illuminated | No |
| Illumination Colour | Non Illuminated |
| Material | PBT |
| Mounting Style | PCB |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -30°C to 85°C |
| Pitch | 2.54mm |
| Product Series | TP |
| Switch Operation | Off-(On) |
| Terminal Type | Solder |
| Voltage Rating | 20VAC/DC |
