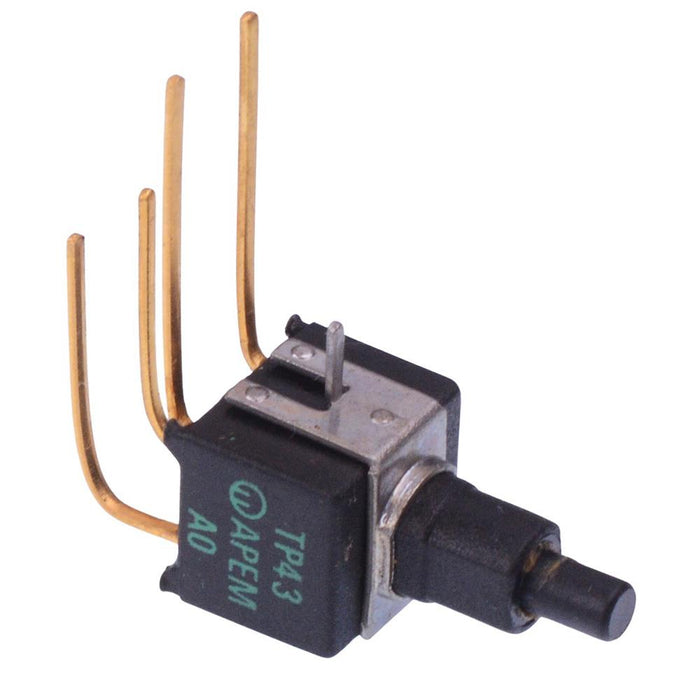

TP43WW08000 APEM Off-(On) Momentary Subminiature Washable PCB Push Button Switch DPST
by APEM
SKU 487578
MPN: TP43WW08000
Availability:
178 in stock
Original price
£2.52
-
Original price
£2.52
Original price
£2.52
Inc VAT
£2.52
-
£2.52
Current price
£2.52
Inc VAT
The TP43WW08000 is a momentary sub-miniature push button switch manufactured by APEM featuring DPST contacts, designed for PCB mounting. The switch features a single piece sealed case making them suitable for a wide range of applications including telecommunications.
Off-(On) momentary operation DPST contacts Right angle PCB terminals Vertical mounting Standard short black case Gold plated brass terminals 5.08mm pitch Rating: 0.4A 20VAC/DC
Specification
| Actuation | Momentary |
| Back order lead time | 10 Days |
| Contact configuration | DPST |
| Contact material | Gold Plated Brass |
| Contact rating | 0.4A 20VAC/DC |
| Current rating | 0.4A |
| Illuminated | No |
| Mounting style | PCB |
| Number of poles | 2 |
| Number of positions | 2 |
| Operating temperature | -30°C to +85°C |
| Pitch | 5.08mm |
| Product series | TP |
| Switch operation | Off-(On) |
| Terminal type | Through Hole |
| Voltage rating | 20VAC/DC |
