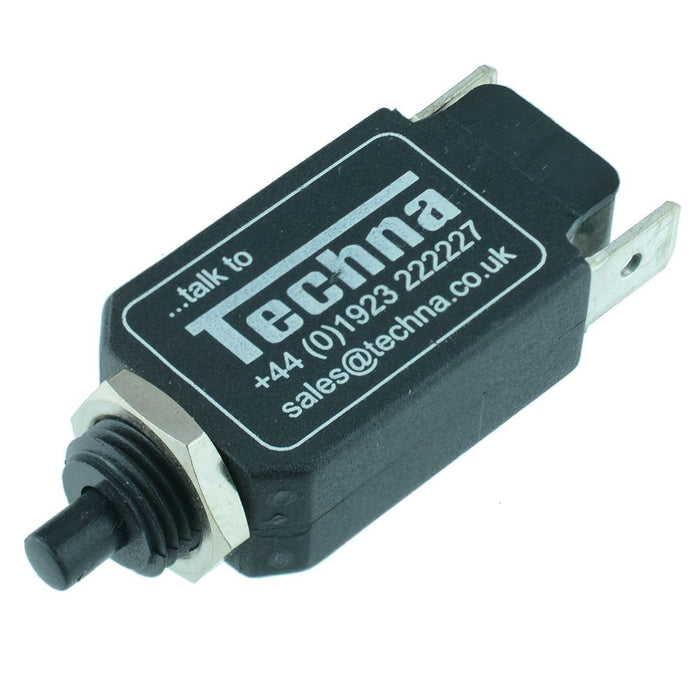

TR11CX08S6 Techna 8A Miniature Thermal Circuit Breaker
by Techna
SKU 480798
MPN: TR11CX08S6
Availability:
26 in stock
Original price
£3.65
-
Original price
£3.65
Original price
£3.65
£3.65
£3.65
-
£3.65
Current price
£3.65
8A miniature panel mount circuit breaker from the TR11 series, manufactured by Techna. The breaker features a push to reset button, providing a trip free operation on overloads and short circuits. Suitable for a wide range of applications including single phase motors.
8A current rating 250Vac voltage rating 6.3mm quick connect terminals Push button reset 10.2mm panel cut-out Single pole 19 x 42mm dimensions (width x height)
Specification
| Back Order Lead Time | 5 Days |
| Current Rating | 8A |
| Interrupting Capacity | 1000A |
| Mounting Style | Panel |
| Operating Temperature | 60°C Maximum |
| Panel Cut Out | 10.2 x 9.4mm |
| Voltage Rating | 250V |
