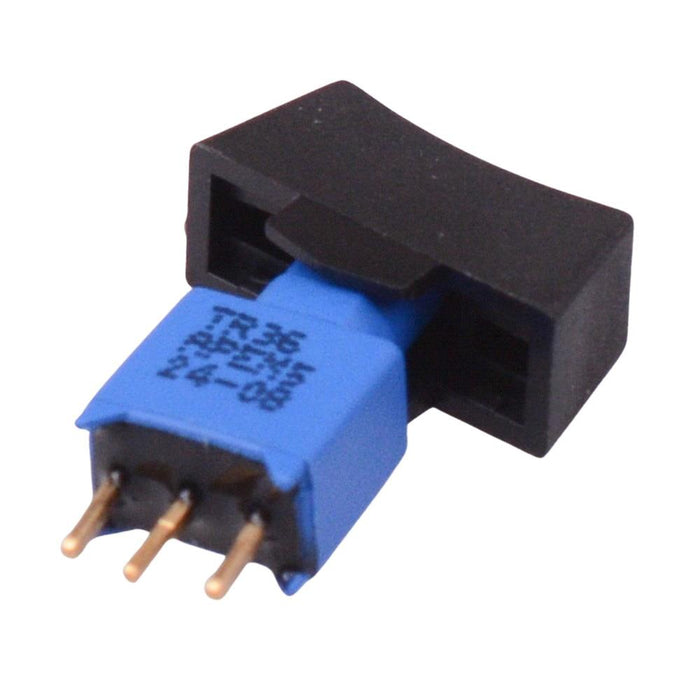

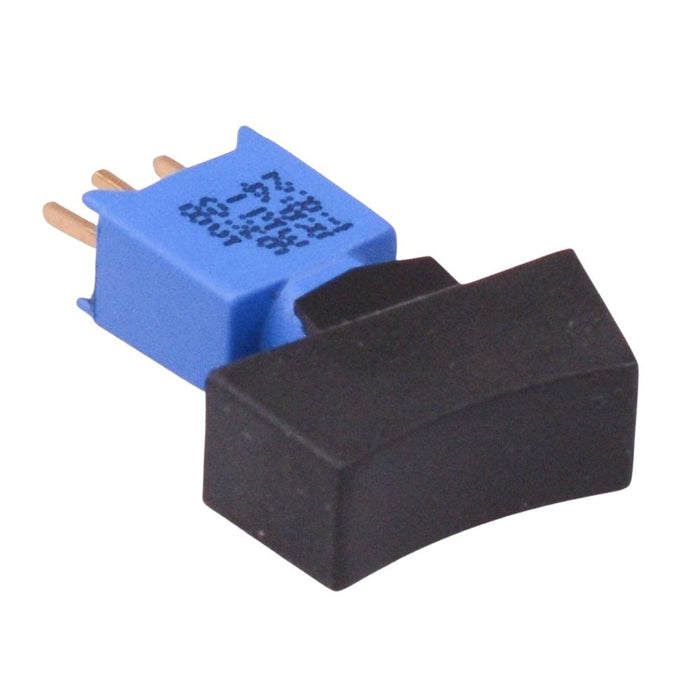

TR36P00000012 APEM On-On Subminiature Washable PCB Rocker Switch SPDT
by APEM
SKU 490166
MPN: TR36P00000012
Availability:
17 in stock
Original price
£4.90
-
Original price
£4.90
Original price
£4.90
£4.90
£4.90
-
£4.90
Current price
£4.90
The TR36P00000012 is a sub-miniature rocker switch manufactured by APEM featuring SPDT contacts, designed for PCB mounting. The switch features a single piece sealed case making them suitable for a wide range of applications including telecommunications.
On-On operation SPDT contacts Straight PCB terminals Gold plated brass terminals 2.54mm pitch Rating: 0.5A 48VAC/DC
Specification
| Actuation | Latching |
| Contact Configuration | SPDT |
| Contact Material | Gold Plated Brass |
| Contact Rating | 0.4VA 20VAC/DC |
| Current Rating | 0.4VA |
| Electrical Life | 60,000 Cycles |
| Illuminated | No |
| Material | PBT |
| MOQ | 1 |
| Mounting Style | PCB |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -30°C to +85°C |
| Pitch | 2.54mm |
| Switch Operation | On-On |
| Terminal Type | Solder |
| Voltage Rating | 20VAC/DC |
