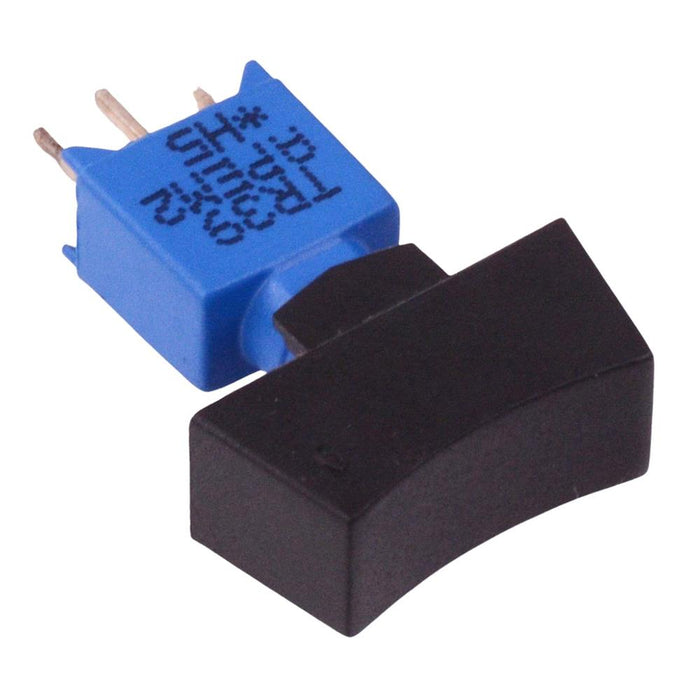

TR39P01000012 APEM On-Off-On Subminiature Washable PCB Rocker Switch SPDT
by APEM
SKU 487676
MPN: TR39P01000012
Availability:
75 in stock
Original price
£3.06
-
Original price
£3.06
Original price
£3.06
£3.06
-
£3.06
Current price
£3.06
The TR39P01000012 is a sub-miniature rocker switch manufactured by APEM featuring SPDT contacts, designed for PCB mounting. The switch features a single piece sealed case making them suitable for a wide range of applications including telecommunications.
On-Off-On operation SPDT contacts Straight PCB terminals Silver plated brass terminals 2.54mm pitch Rating: 0.5A 48VAC/DC
Specification
| Actuation | Latching |
| Back Order Lead Time | 10 Days |
| Contact Configuration | SPDT |
| Contact Material | Silver Plated Brass |
| Contact Rating | 0.5A 48VAC/DC |
| Current Rating | 0.5A |
| Electrical Life | 10,000 Cycles |
| Illuminated | No |
| Mounting Style | PCB |
| Number of Poles | 1 |
| Number of Positions | 3 |
| Operating Temperature | -30°C to +85°C |
| Pitch | 2.54mm |
| Switch Operation | On-Off-On |
| Terminal Type | PCB |
| Voltage Rating | 48VAC/DC |
