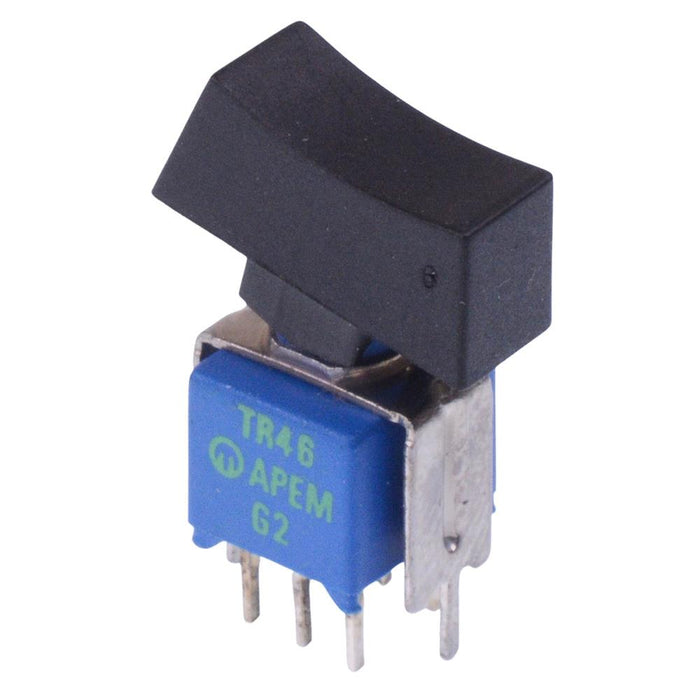

TR46Y0110 APEM On-On Subminiature Washable PCB Rocker Switch DPDT

by APEM
SKU 488052

MPN: TR46Y0110

Availability:
32 in stock
Original price £3.42 - Original price £3.42
Original price
£3.42
£3.42 - £3.42
Current price £3.42
The TR46Y0110 is a sub-miniature rocker switch manufactured by APEM featuring DPDT contacts, designed for PCB mounting. The switch features a single piece sealed case making them suitable for a wide range of applications including telecommunications.

  • On-On operation
  • DPDT contacts
  • Bracket mounting
  • PCB terminals
  • Silver plated brass terminals
  • 2.54mm pitch
  • Rating: 0.5A 48VAC/DC
  • Specification
    Actuation Latching
    Back Order Lead Time 10 Days
    Contact Configuration DPDT
    Contact Material Silver Plated Brass
    Contact Rating 0.5A 48VAC/DC
    Current Rating 0.5A
    Electrical Life 20,000 Cycles
    Illuminated No
    Mounting Style PCB
    Number of Poles 2
    Number of Positions 2
    Operating Temperature -30°C to +85°C
    Pitch 2.54mm
    Switch Operation On-On
    Terminal Type PCB
    Voltage Rating 48VAC/DC
