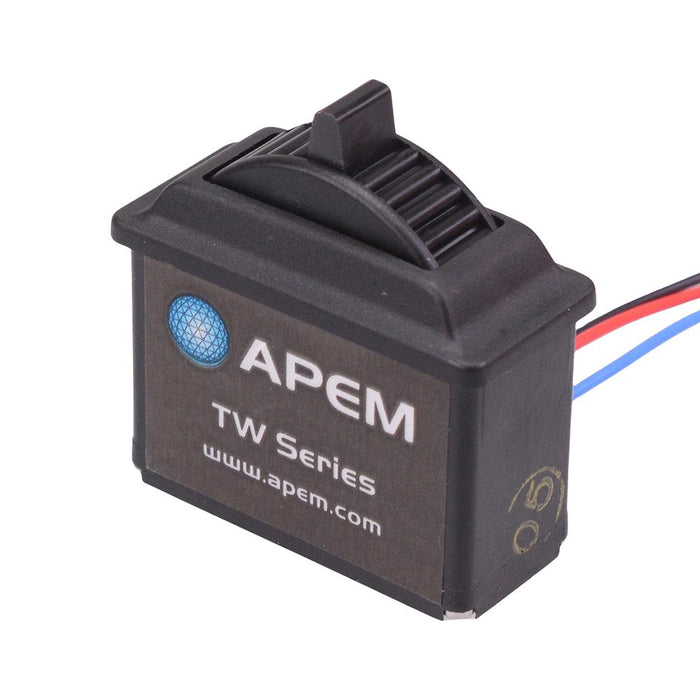

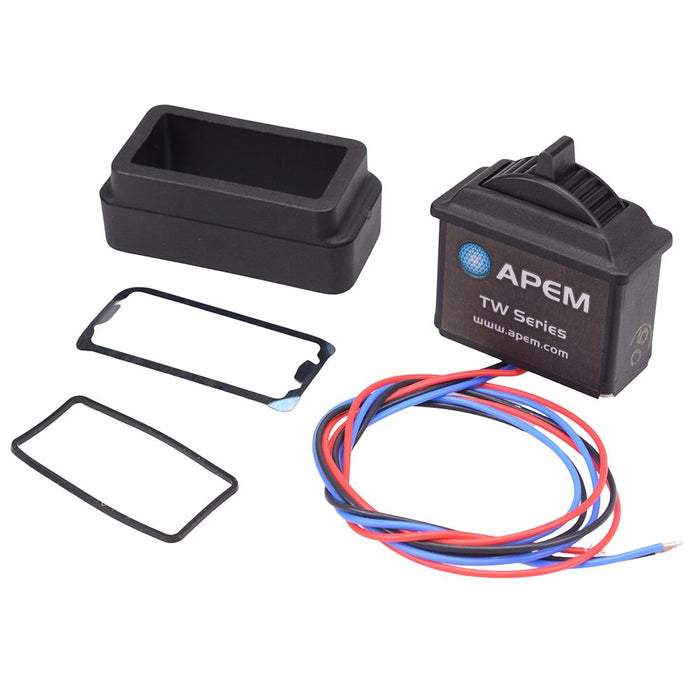

TW01BLK12 Black Hall Effect Thumbwheel Self Centering Joystick APEM
by APEM
SKU 492776
MPN: TW01BLK12
Availability:
58 in stock
Original price
£81.84
-
Original price
£81.84
Original price
£81.84
£81.84
-
£81.84
Current price
£81.84
The TW01BLK12 is a self-centering, low profile joystick that provides smooth, precise fingertip control in one axis. Featuring non-contacting hall effect technology for long life performance, the joystick offers excellent proportional control, stable output, long life and is designed for panel mount applications and joystick integration.
Supply voltage: 5VDC Output voltage: 0-5VDC Spring return to center IP67 sealing Black actuator Panel cut-out: 36.6 x 16.3mm 22AWG 41cm cables Default wire colour code: red +5V, black ground, blue output alpha, blue/white output beta
Specification
| Back Order Lead Time | 150 Days |
| Handle | Thumbwheel |
| Joystick Travel | ±40° |
| Mechanical Life | 5,000,000 Cycles |
| MOQ | 1 |
| Number of Axis | 1 |
| Operating Temperature | -40°C to +85°C |
| Protection Level | IP67 |
| Technology | Hall Effect |
| Terminal Type | Tail Leads |
