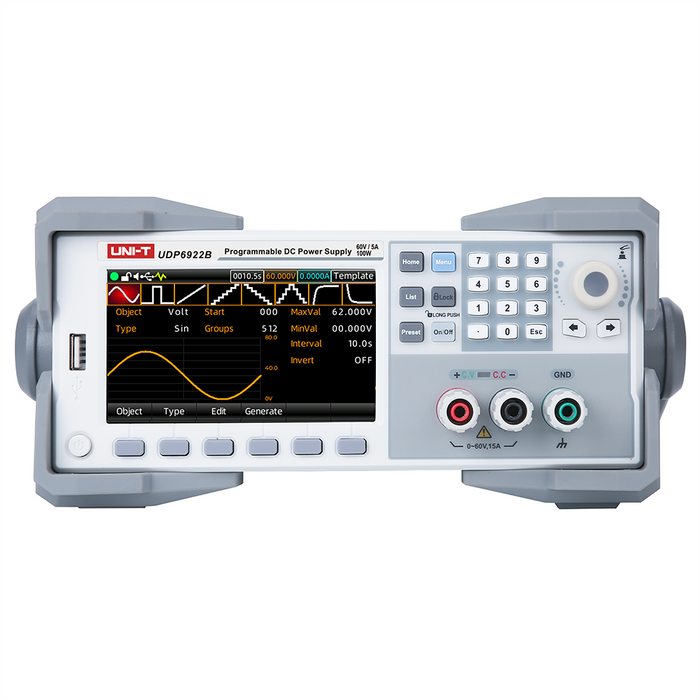

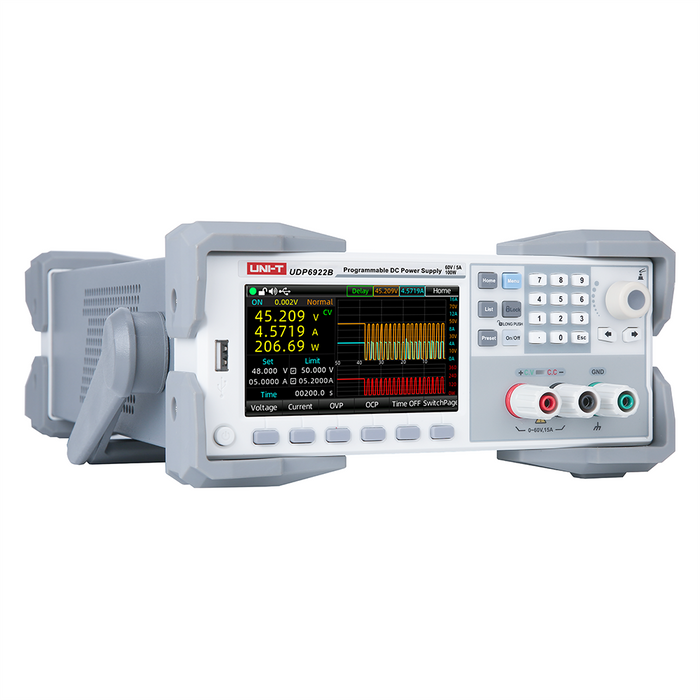

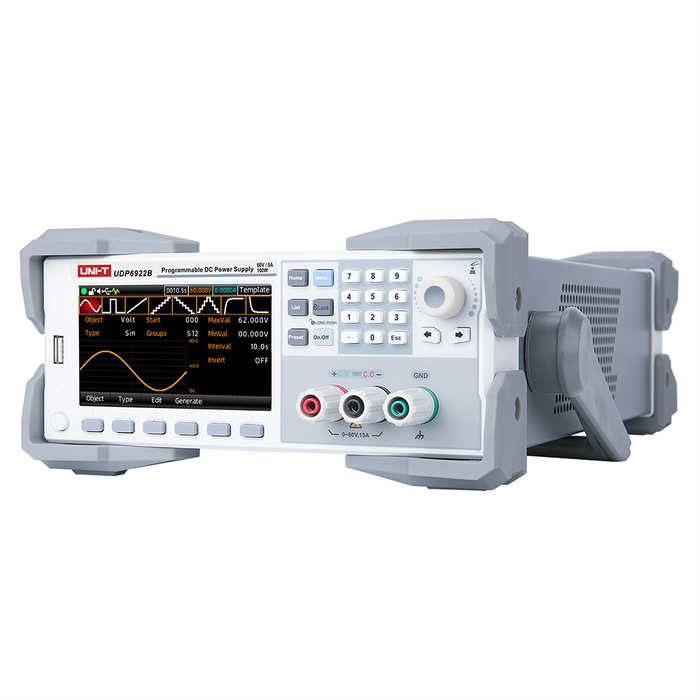

UDP6922B 1-Channel Programmable Switching DC Power Supply 5A 60V 100W Uni-T

The UDP6922B is a single output programmable DC power supply capable of achieving a variety of voltage and current combination outputs under a fixed power. The power supply can meet the test of two types of DUTs, high voltage and low current or high current and low voltage, greatly saving your cost and space. The power supply features standard RS232, RS485, LAN, USB and analog interfaces, supports SCPI protocol, and is convenient for remote control, industrial PLC control and building an intelligent test platform. Widely used in various testing fields such as DC/DC power modules, battery charging and sensors.

1-channel

Output: 0-60V, 0-5A, 100W

4.3” TFT true color LCD, simultaneous display of the set voltage and current, output voltage and current

High accuracy and resolution

Programmable output of the voltage and current

Output time control can be set (0.1–99999.9 seconds)

Low ripple and noise

Voltage and current can be adjusted by the numeric keyboard and the encoder knob

Intelligent fan control saves energy

Remote sense to avoid voltage drops due to long wires

Supports output voltage and current slope setting

RS232 & RS485 communication interface; Supports SCPI, Multi-SCPI, and Modbus RTU protocols

External analog control and external digital control

Built-in 4 ½ digit voltmeter for outside measurement

Multiple protection: OVP (Over Voltage Protection) and OCP (Over Current Protection)

Supports 18x8 group memory for saving and loading

High power factor with low harmonic interference to the power grid. Ideal for applications with high power quality requirements

High efficiency, low heat

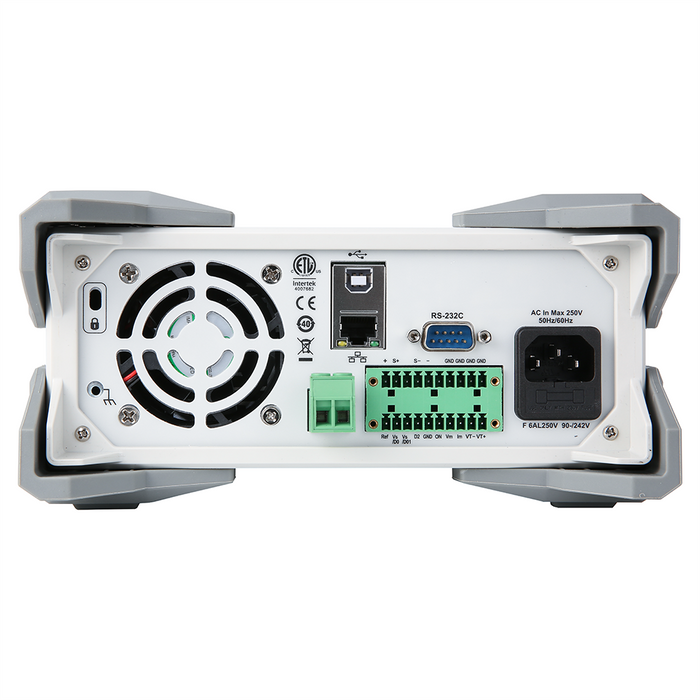

Rack mountable with both front and rear panel connections

Output of current, voltage and power figure are clearly visible

Backlight can be adjusted

LAN port supports Web remotr control and VXI bus

Supports 100 to 240V input voltage
