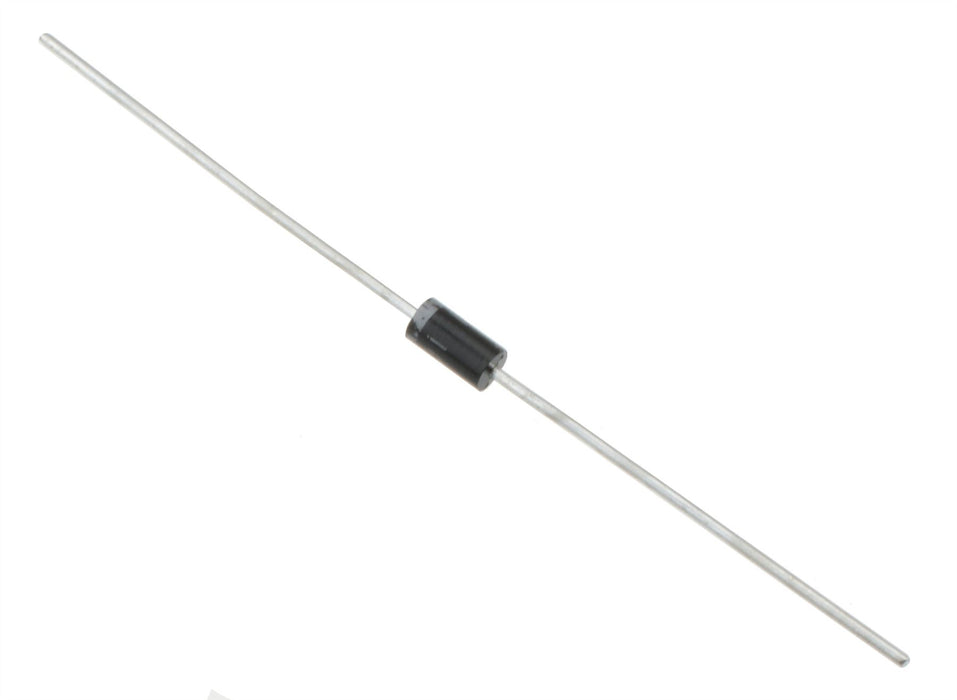

UF4002 Ultrafast Diode 1A 100V

SKU 480896

MPN: 480896

Availability:
1300 in stock
Original price £0.10 - Original price £0.10
Original price
£0.10
£0.10 - £0.10
Current price £0.10
Ultra-fast UF4002 rectifier diode with a high current capability and low forward voltage drop suitable for a wide range of applications including use with switched mode power supplies.

  • Maximum recurrent peak reverse voltage: 100V
  • Maximum average forward current: 1A
  • Leads diameter: 0.7mm
  • Supplied on tape packaging
  • Specification
    Average Rectified Current 1A
    Back Order Lead Time 40 Days
    Body Dimensions 5.1 x 2.6mm (Length x Diameter)
    Lead Dimensions 25.4 x 0.77mm (Length x Diameter)
    Maximum Forward Voltage 1V
    MOQ 10
    Mounting Style Through Hole
    Operating Temperature -50°C to 175°C
    Package DO-41
    Packaging Tape
    Peak Reverse Voltage 100V
    Peak Surge Current 30A
