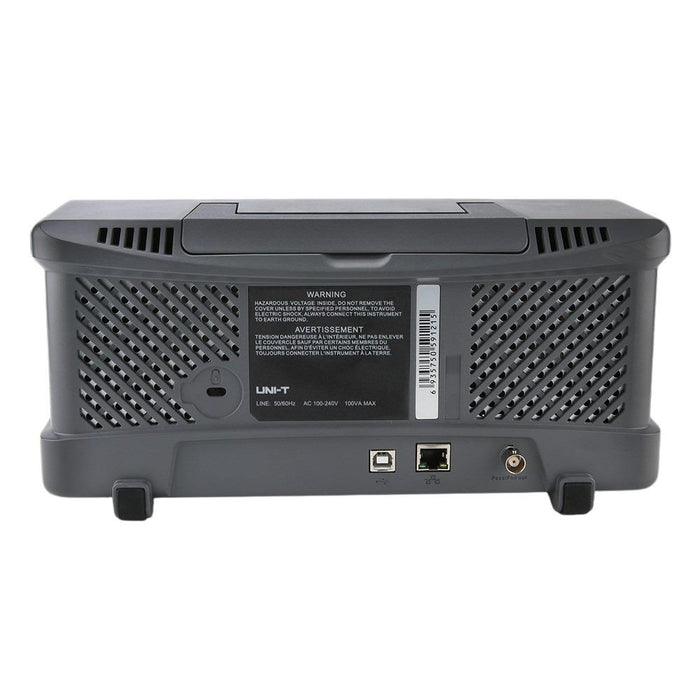

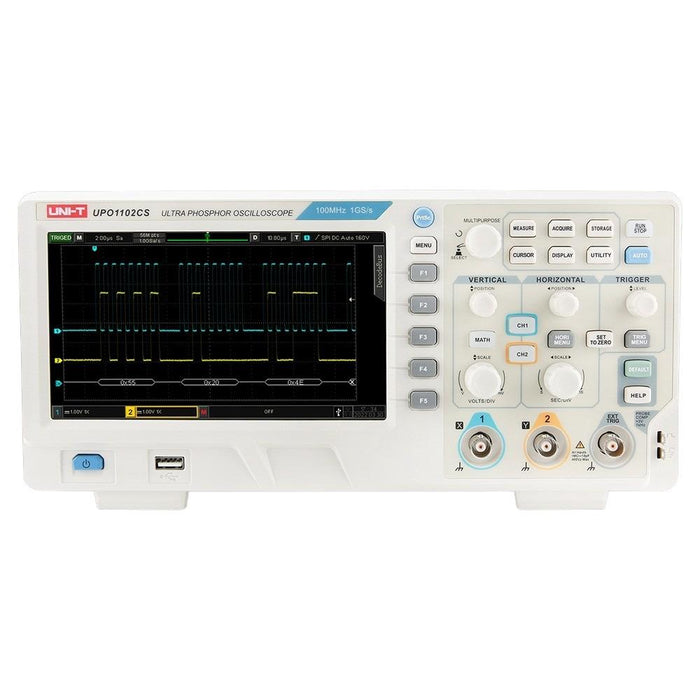

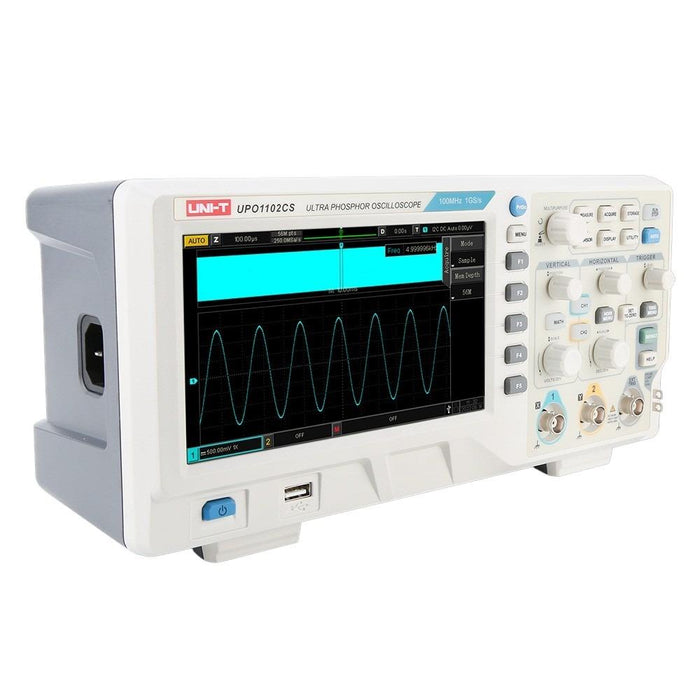

UPO1102CS Digital Storage 2 Channel Analog Oscilloscope 100MHz Uni-T

by Uni-T
SKU 488961

MPN: UPO1102CS

Availability:
Only 2 left!
Original price £268.72 - Original price £268.72
Original price
£268.72
£268.72 - £268.72
Current price £268.72
The UPO1102CS is a multi-function, cost-effective digital phosphor oscilloscope. It can be widely used in the fields of electronic and electrical design, debugging, education and industrial design. UPO1102CS adopts parallel digital signal processing technology, which greatly improves the data processing speed and waveform capture rate. The original Ultra Phosphor technology can present the cumulative effect of the tested signal as a multi-layered afterglow. Compared with traditional digital storage oscilloscopes, the persistence of digital phosphor oscilloscopes can present three-dimensional waveform data of amplitude, time and signal intensity. Fast Acquire technology can accurately capture abnormal events such as video, jitter, noise and runt signals.

  • Bandwidth: 100MHz
  • Real time sample rate: 1GSa/s
  • Waveform capture rate: 150,000 wfms/s
  • 2 analog channels
  • Maximum memory depth: 56 Mpts
  • 7" display
  • Web control
  • 1Mpts FFT sampling point
  • Multi-scopes
  • Serial bus trigger and hardware decoding
  • Deep storage depth
  • Ultra high capture rate
  • 256 gray level display
  • Specification
    Back Order Lead Time 10 Days
    Bandwidth 100MHz
    Channels 2 Analogue
    Digital/Analogue Digital
    Display 7 Inch TFT LCD
    Memory Depth 56Mpts
    Rise Time <3.5ns
    Sampling Rate 1GSa/s
    Vertical Range 1mV/div to 20V/div
    Waveform Capture Rate 150,000 wfms/s
