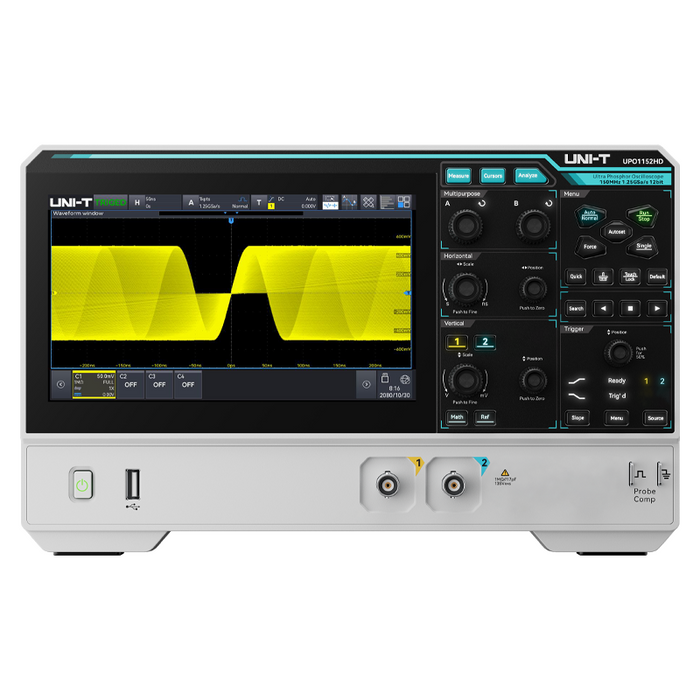

UPO1152HD High Resolution Touch-Screen 2 Channel Oscilloscope 150MHz Uni-T
by Uni-T
SKU 493828
MPN: UPO1152HD
Availability:
Only 2 left!
Original price
£447.10
-
Original price
£447.10
Original price
£447.10
£447.10
-
£447.10
Current price
£447.10

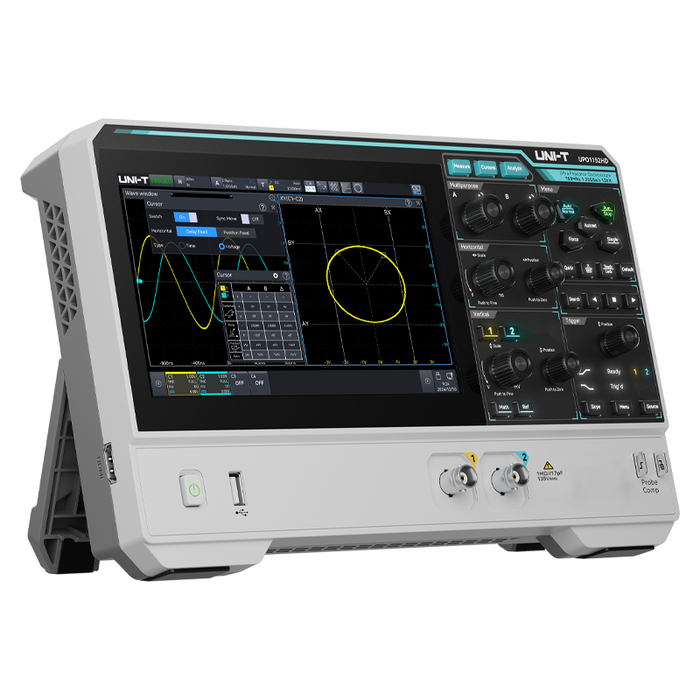

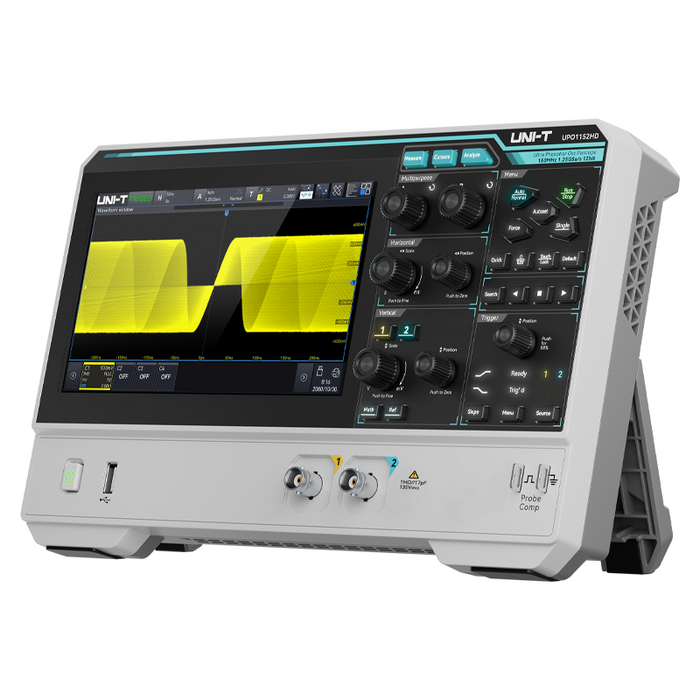

The UPO1152HD is a high-resolution 2-channel oscilloscope with a bandwidth of 150MHz and sampling rate of 1.25 GSa/s, with a maximum memory depth of 100 Mpts. The oscilloscope adopts exclusive ultra phosphor 3.0 technology, achieving the waveform capture rate of 500,000 wfms/s, with 256 levels of gray temperature colours, and features an innovative digital trigger system with high trigger sensitivity and low jitter. The 7-inch capacitive multi-touch screen supports gesture control and 12-bits, providing excellent background noise.
Channels: 2 Bandwidth: 150MHz Real-time sample rate: 1.25GSa/s Max memory depth: 100Mpts Waveform capture rate: 500,000wfms/s Type-C power supply 12-bit high resolution, up to 4096 points 6 instrument functions: oscilloscope, spectrum analyzer, voltmeter, frequency meter, protocol analyzer, power analyzer Ultra phosphor 3.0 supports 8-channel parallel graph mapping 56 types of precise parameters Protocol decoding and triggering 3 year warranty
Specification
| Back Order Lead Time | 7 Days |
| Bandwidth | 150MHz |
| Channels | 2 Analogue |
| Digital/Analogue | Digital |
| Display | 7-Inch 1024x600 HD Capacitive Multi-Touch |
| Frequency Counter | 6-Digit |
| Holdoff Range | 0.0ps to 10s |

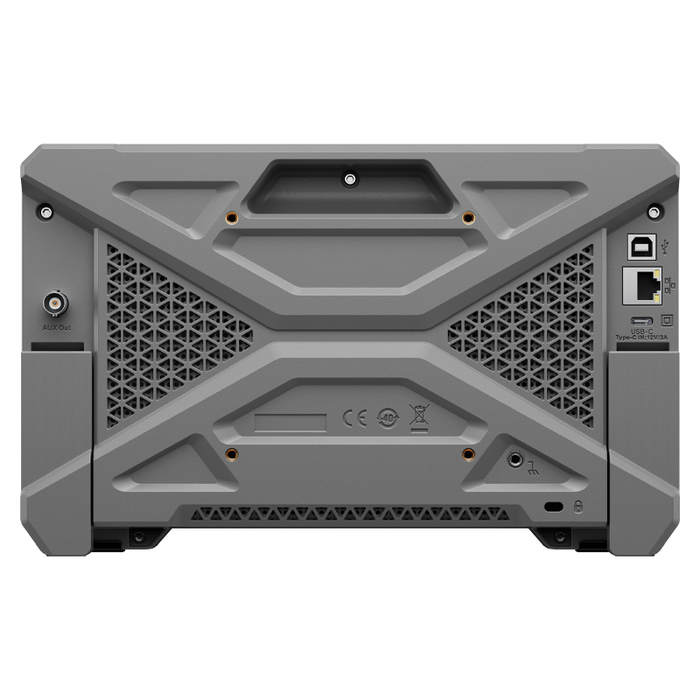

| Interfaces | USB Host, USB Device, LAN, AUX Out (Trig Out, Pass/Fail, DVM), HDMI |
| Memory Depth | 100Mpts |
| MOQ | 1 |
| Rise Time | <2.2ns |
| Sampling Rate | 1.25GSa/s |
| Storage Methods | Set, waveform, image, report |
| Time Base Range | 2ns/div to 1000s/div |
| Trigger Types | Edge, pulse width, video, ramp, runt pulse, over-amplitude pulse, delay, timeout, duration, setup & hold, Nth edge and, code pattern |
| Vertical Range | 500μV/div to 10V/div |
| Waveform Capture Rate | 500,000wfms/s |
