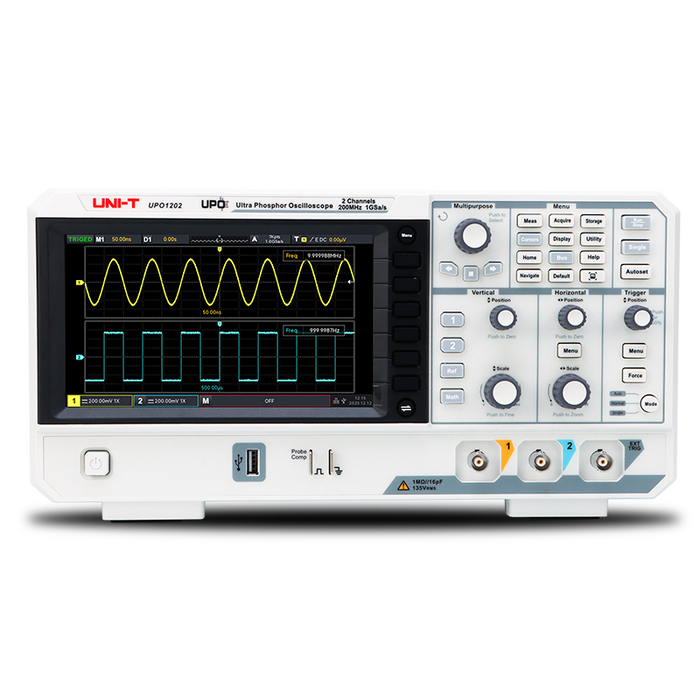

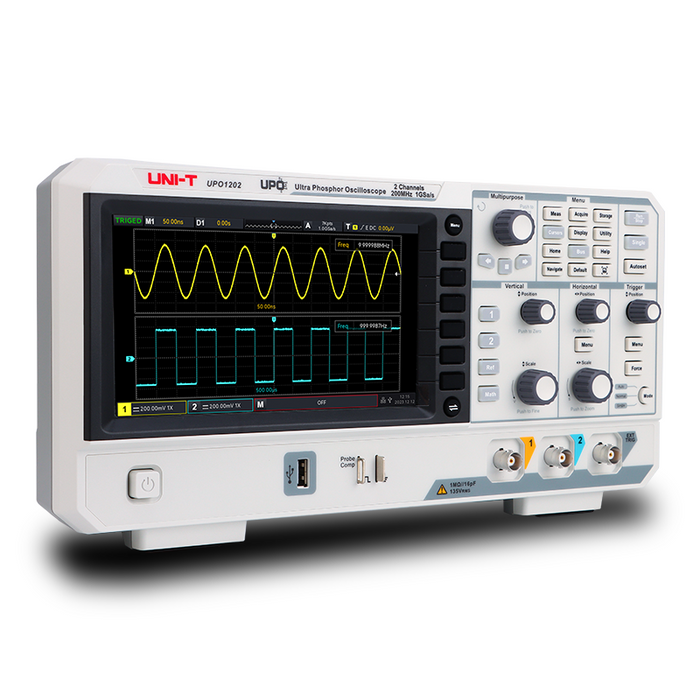

UPO1202 2 Analog Channel Oscilloscope 200MHz Uni-T
by Uni-T
SKU 493834
MPN: UPO1202
Availability:
Only 2 left!
Original price
£324.59
-
Original price
£324.59
Original price
£324.59
£324.59
-
£324.59
Current price
£324.59
The UPO1202 digital phosphor oscilloscope adopts innovative UNI-T Ultra Phosphor 2.0 with new appearance upgrade and the function of deep storage, high waveform capture rate, real-time waveform recording and playback, and 256-level grayscale display. The oscilloscope supports DVM module, rich trigger and bus decoding functions, and support full memory hardware real-time decoding. It is widely used in many fields including; embedded system design, instrumentation, industrial electronics, consumer electronics, automotive electronics, field maintenance, R&D and education.
Channels: 2 Bandwidth: 200MHz Real-time sample rate: 1GSa/s Max memory depth: 56Mpts Waveform capture rate: 500,000wfms/s Long memory depth provides full frequency domain information at high sample rates Multi-Scopes 2.0 can separate the time base and voltage grid of two channels Full-memory hardware real-time decoding 1M-point enhanced FFT, in-depth frequency domain analysis 3-year warranty
Specification
| Back Order Lead Time | 7 Days |
| Bandwidth | 200MHz |
| Channels | 2 Analogue |
| Digital/Analogue | Digital |
| Display | 7-Inch 800x480 TFT LCD |
| Frequency Counter | 6-Digit |
| Holdoff Range | 100ns to 10s |

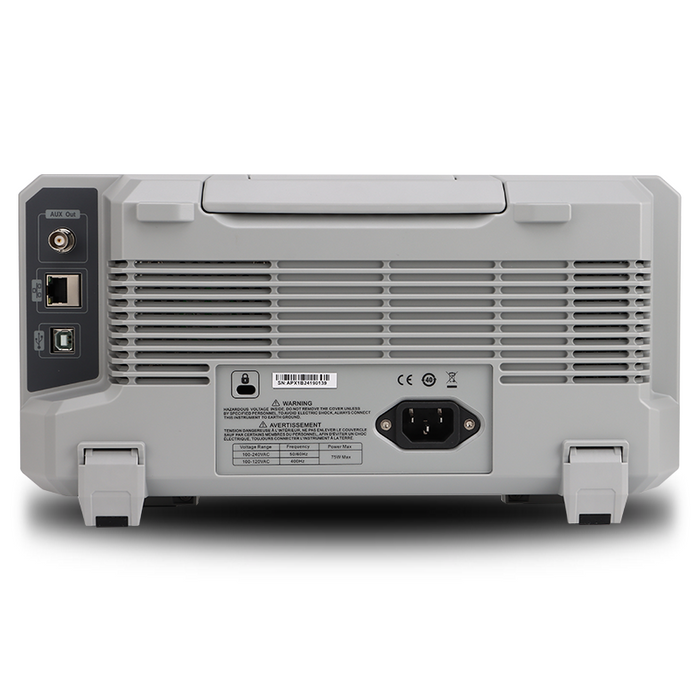

| Interfaces | USB Host, USB Device, LAN, EXT Trig, AUX Out (Trig Out, Pass/Fail, DVM) |
| Memory Depth | 56Mpts |
| MOQ | 1 |
| Rise Time | <3.5ns |
| Sampling Rate | 1GSa/s |
| Storage Methods | Set, waveform, USB |
| Time Base Range | 1ns/div to 1000s/div |
| Trigger Types | Edge, pulse width, video, slope, runt, window, delay, timeout, duration, setup & hold, Nth edge, and pattern |
| Vertical Range | 500μV/div to 20V/div |
| Waveform Capture Rate | 500,000wfms/s |
