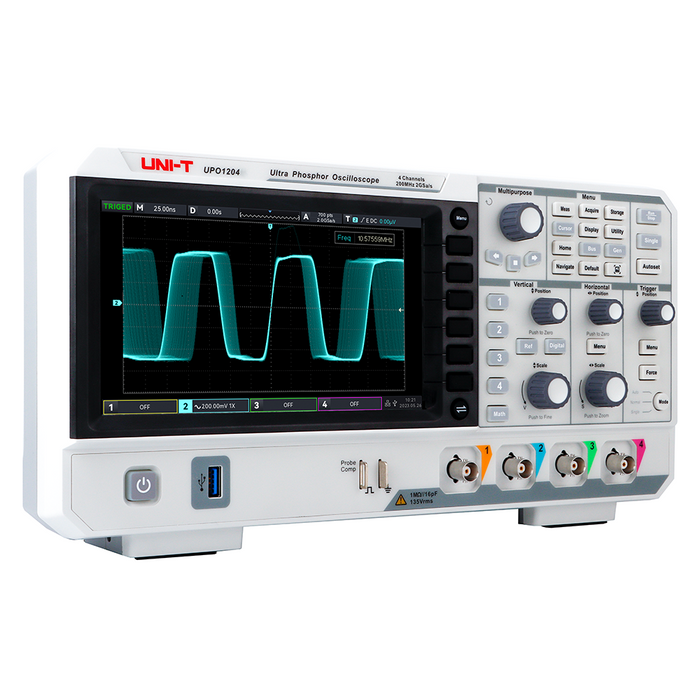

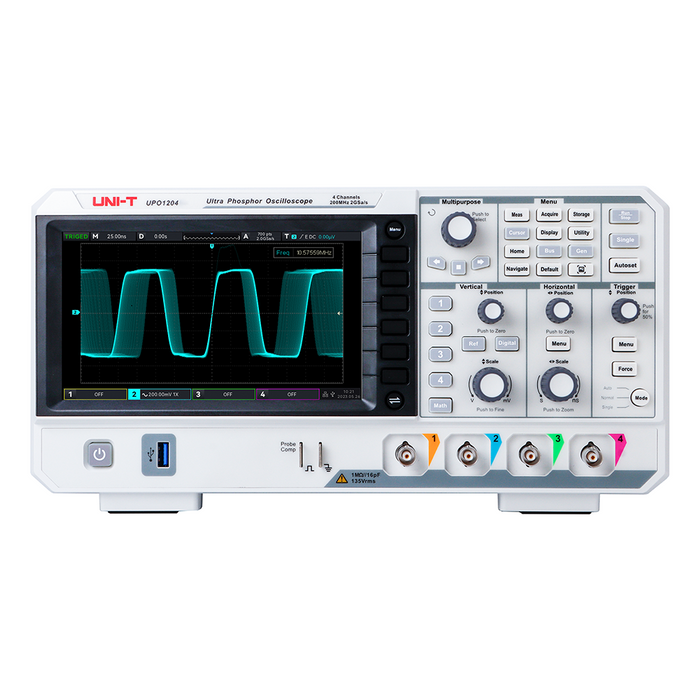

UPO1204 4 Analog Channel Oscilloscope 200MHz Uni-T
by Uni-T
SKU 493832
MPN: UPO1204
Availability:
Only 2 left!
Original price
£504.80
-
Original price
£504.80
Original price
£504.80
£504.80
-
£504.80
Current price
£504.80
The UPO1204 digital oscilloscope adopts Ultra Phosphor 2.0 technology and is equipped with bandwidth of 200MHz. The oscilloscope features real-time sampling rate is as high as 2GSa/s is equipped with 4 channels. The model supports independent DVM module, has rich trigger and bus decoding functions, and supports full-memory hardware real-time decoding. It can be widely used in embedd system design, instrumentation, consumer electronics, automotive electronics, field maintenance, and education and many other fields.
Channels: 4 Bandwidth: 200MHz Real-time sample rate: 2GSa/s Max memory depth: 56Mpts Waveform capture rate: 500,000wfms/s Hardware real-time recording up to 120,000 frames 36 parameter measurements Navigation function with time, marker and segment modes Built-in digital voltmeter (DVM), can set over limit alarm Cursor measurement measures time and voltage at the same time Waveform records can be saved in Video format Full-memory hardware real-time decoding 1Mpts enhanced FFT 3-year warranty
Specification
| Back Order Lead Time | 7 Days |
| Bandwidth | 200MHz |
| Channels | 4 Analogue |
| Digital/Analogue | Digital |
| Display | 7- Inch WVGA 800x480 TFT LCD |
| Frequency Counter | 7-Digit |
| Holdoff Range | 80ns to 10s |

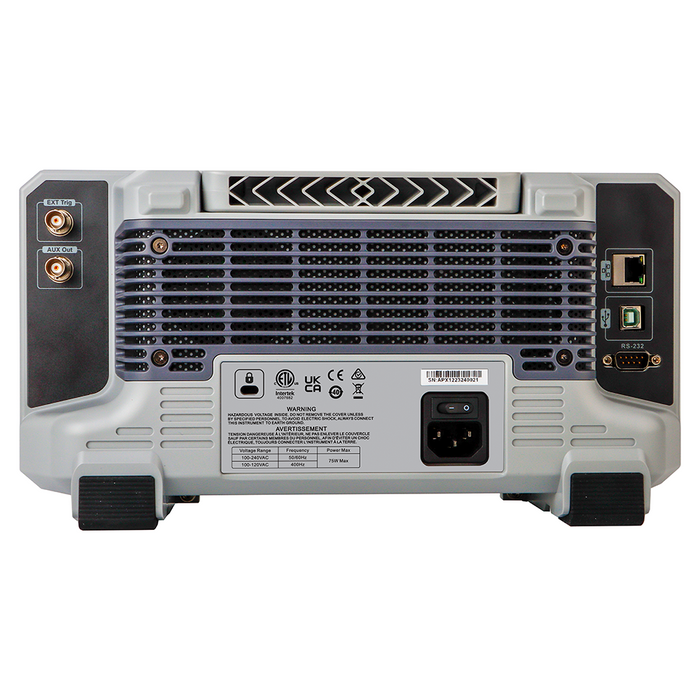

| Interfaces | USB Host, USB Device, LAN, EXT Trig, AUX Out (Trig Out, Pass/Fail,DVM) |
| Memory Depth | 56Mpts |
| MOQ | 1 |
| Rise Time | <1.8ns |
| Sampling Rate | 2GSa/s |
| Storage Methods | Set, waveform, USB |
| Time Base Range | 1ns/div to 1000s/div |
| Trigger Types | Edge, pulse width, video, slope, runt pulse, over-amplitude pulse, delay, timeout, duration, setup hold, Nth edge and code pattern |
| Vertical Range | 500μV/div to 20V/div |
| Waveform Capture Rate | 500,000wfms/s |
