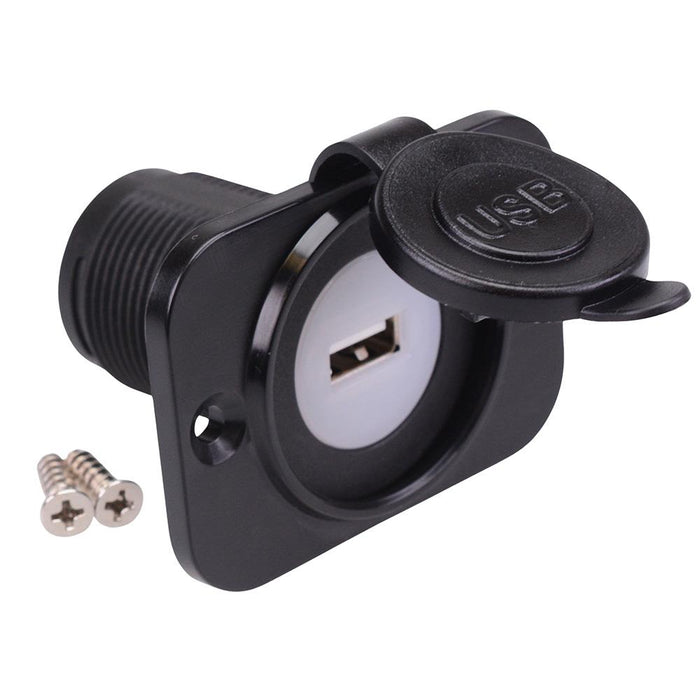

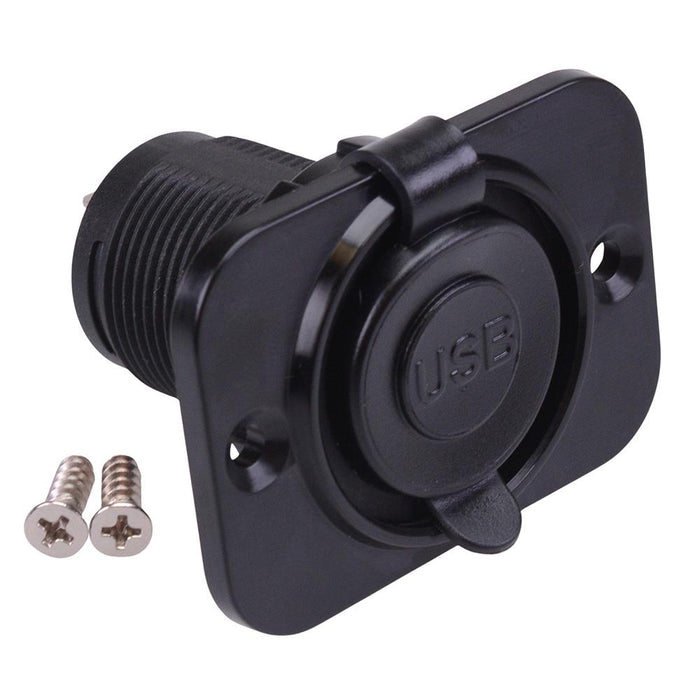

USB-A 5V 2.1A Panel Mount Socket with Flange A13-194APS-BB3

A13-194A USB-A panel mount socket with mounting panel, featuring a 12V/24V input rating and protective dust proof cover. The socket requires a 29mm panel cut-out and provide a 5V 2.1A output. The socket is suitable for a wide range of automotive applications.

Input rating: 12V/24V

Output rating: 5V 2.1A

Socket panel cut-out: 29mm

LED internal illumination when 'On'

Reverse polarity protection

6.3mm quick connect terminals

Socket dimensions: 50.4 x 36.8mm (height x diameter)

Panel dimensions: 60.1 x 43.1mm (width x height)
