UT-P01 25MHz Oscilloscope Probe 600V Uni-T
by Uni-T
SKU 488569
MPN: UT-P01
Availability:
8 in stock
Original price
£13.03
-
Original price
£13.03
Original price
£13.03
£13.03
-
£13.03
Current price
£13.03

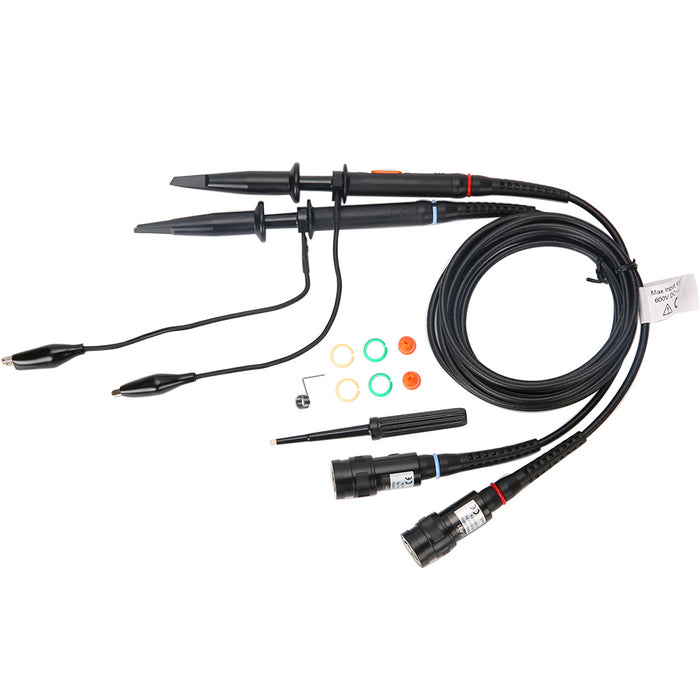

The UT-P01 is a passive probe suitable for use with Uni-T Oscilloscopes. The probes are suitable up to 600V input voltage and 25MHz system bandwidth.
Attenuation: 1:10 System bandwidth: 1X:6MHz, 10X:25MHz Compensation range: 10X:5pF-30pF Length: 130cm Includes: BNC adapter, electrical contact ground, IC tip, sprung hook, adjustment tool, marker ring, ground lead Conforms to IEC-61010 CAT II 1X:150V AC 10X:300V AC Please note: if used with another Oscilloscope, it must have an input impedance of 1M Ohm
Specification
| Back Order Lead Time | 10 Days |
| Bandwidth | 25MHz |
