UT-P05 200MHz Oscilloscope Probe 600V Uni-T

by Uni-T
SKU 488572

MPN: UT-P05

Availability:
10 in stock
Original price £16.75 - Original price £16.75
Original price
£16.75
£16.75 - £16.75
Current price £16.75

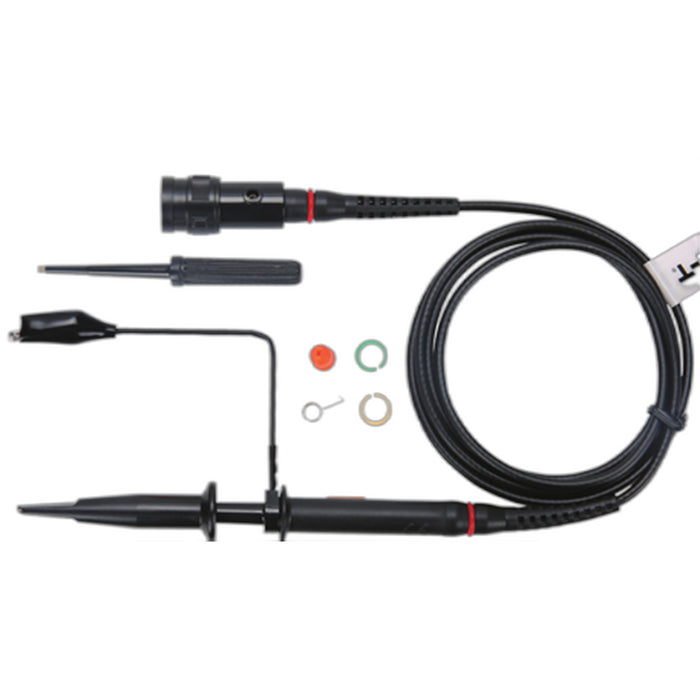

The UT-P05 is a passive probe suitable for use with Uni-T Oscilloscopes. The probes are suitable up to 600V input voltage and 200MHz system bandwidth.

  • Attenuation: 1:10
  • System bandwidth: 1X:6MHz, 10X:200MHz
  • Compensation range: 10X:5pF-30pF
  • Length: 130cm
  • Includes: BNC adapter, electrical contact ground, IC tip, sprung hook, adjustment tool, marker ring, ground lead
  • Conforms to IEC-61010 CAT II 1X:150V AC 10X:300V AC
  • Please note: if used with another Oscilloscope, it must have an input impedance of 1M Ohm
  • Specification
    Back Order Lead Time 10 Days
    Bandwidth 200MHz
