UT-P06 300MHz Oscilloscope Probe 600V Uni-T

by Uni-T
SKU 488573

MPN: UT-P06

Availability:
10 in stock
Original price £46.52 - Original price £46.52
Original price
£46.52
£46.52 - £46.52
Current price £46.52

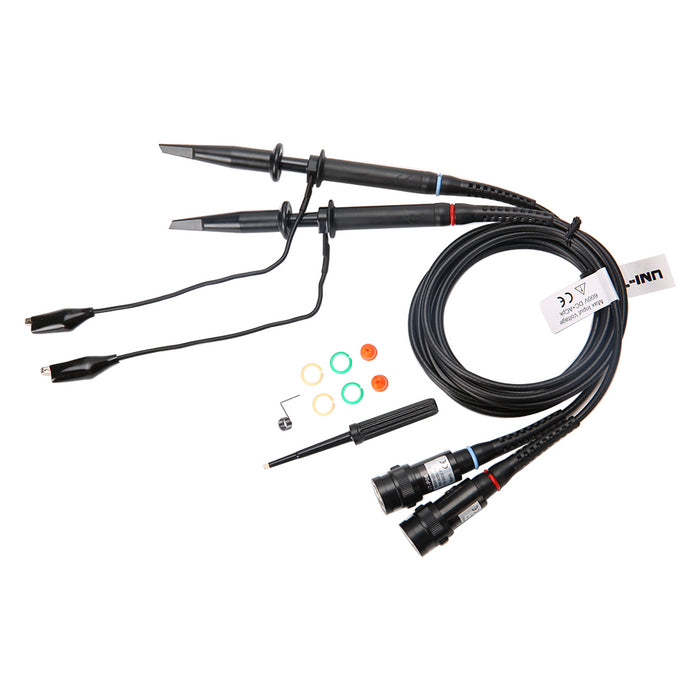

The UT-P06 is a passive probe suitable for use with Uni-T Oscilloscopes. The probes are suitable up to 600V input voltage and 300MHz system bandwidth.

  • Attenuation: 1:10
  • System bandwidth: 1X:6MHz, 10X:300MHz
  • Compensation range: 10X:5pF-30pF
  • Length: 130cm
  • Includes: BNC adapter, electrical contact ground, IC tip, sprung hook, adjustment tool, marker ring, ground lead
  • Conforms to IEC-61010 CAT II 1X:150V AC 10X:300V AC
  • Please note: if used with another Oscilloscope, it must have an input impedance of 1M Ohm
  • Specification
    Back Order Lead Time 10 Days
    Bandwidth 300MHz
