UT171C Auto Range Industrial Digital Multimeter Uni-T
by Uni-T
SKU 488649
MPN: UT171C
Availability:
6 in stock
Original price
£166.78
-
Original price
£166.78
Original price
£166.78
Inc VAT
£166.78
-
£166.78
Current price
£166.78
Inc VAT

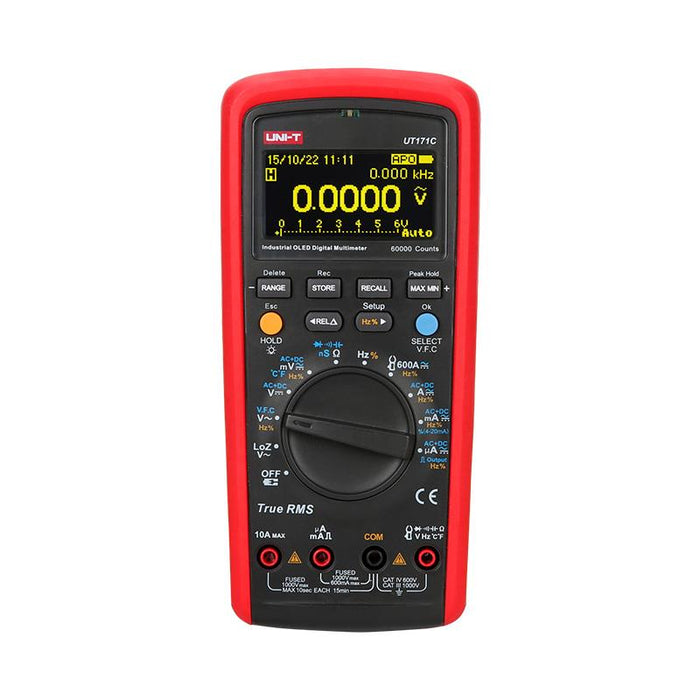

The UT171C is an industrial grade multimeter used by professionals. Its built-in square wave output is useful for troubleshooting industrial control signals. The multimeter features LoZ (ACV) which can be used to identify residual (ghost) voltage in large capacitors.
AC+DC measurement Peak hold Rechargeable battery VFC low-pass filtering USB/Bluetooth communication Voltage rating: 1000VAC/DC Current rating: 10A Resistance rating: 60MΩ Admittance rating: 60nS Capacitance rating: 60mF Frequency range: 10Hz~10MHz Temperature range: -40°C~1000°C
Specification
| Auto power off | Yes |
| Back order lead time | 10 Days |
| Continuity buzzer | Yes |
| Data hold | Yes |
| Display count | 60000 |
| Form factor | Handheld |
| Frequency | 10Hz to 10MHz |
| Lcd backlight | Yes |
| Low battery indication | Yes |
| Maximum ac current | 10A |
| Maximum ac voltage | 1000V |
| Maximum capacitance | 60mF |
| Maximum dc current | 10A |
| Maximum dc voltage | 1000V |
| Maximum resistance | 60MΩ |
| Max min mode | Yes |
| Range | Auto |
| Temperature range | -40℃ to 1000℃ |
