UT181A True RMS Datalogging Digital Multimeter Uni-T
by Uni-T
SKU 488650
MPN: UT181A
Availability:
Only 2 left!
Original price
£342.43
-
Original price
£342.43
Original price
£342.43
Inc VAT
£342.43
-
£342.43
Current price
£342.43
Inc VAT

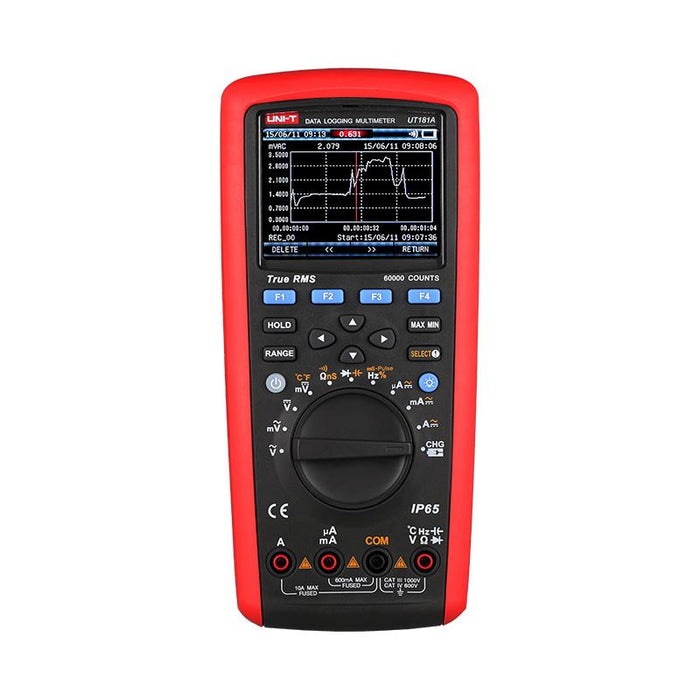

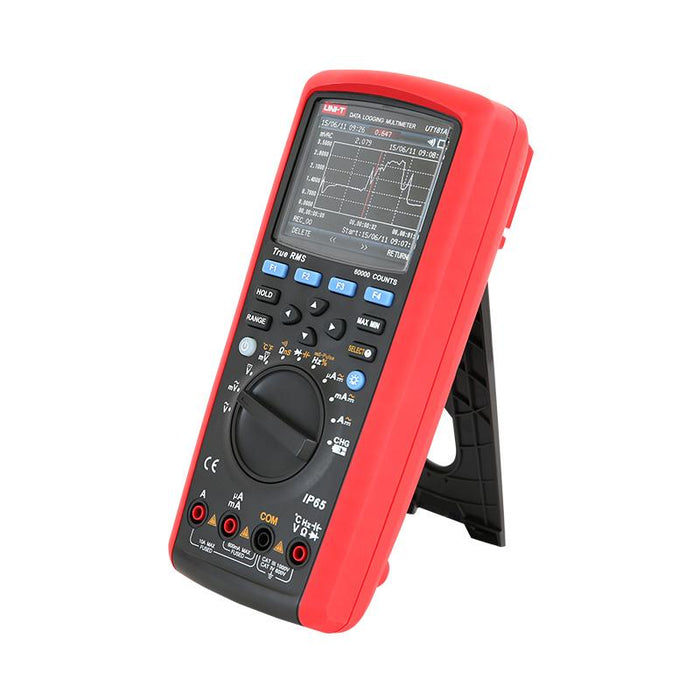

The UT181A is a digital multimeter with trend capture, true RMS, low pass filter, nS conductance, dual temperature measurement, and more. With the help of the datalogging feature, users can store up to 20000 sets of measurement data and display them on a trend graph for long term monitoring.

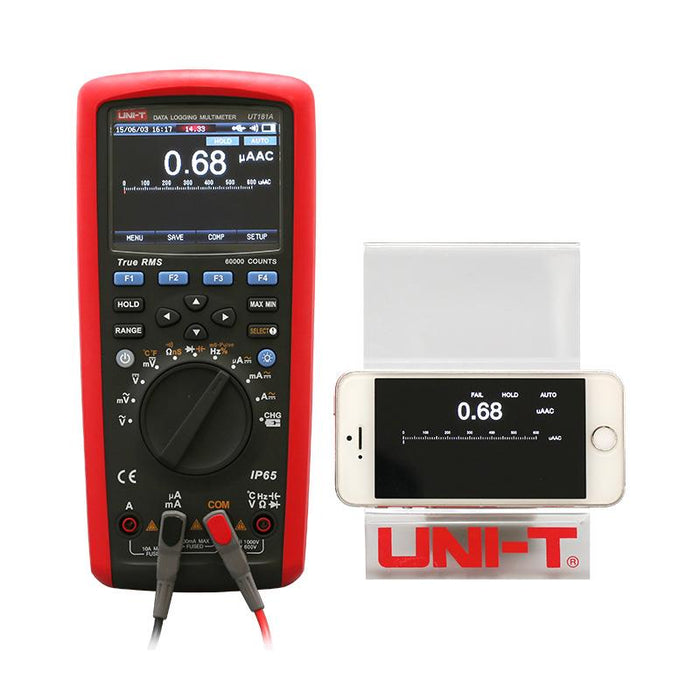

Trend capture Data logging: 20000 Data comparison 3.5-inch 64k color TFT LCD Dual temperature measurement Low pass filter 2000mAh Li-ion battery Real time and date Peak hold Bluetooth/APP USB interface cable /PC software CD IP65 Voltage rating: 1000VAC/DC Current rating: 10A Resistance rating: 60MΩ Admittance rating: 60nS Capacitance rating: 60mF Frequency range: 10Hz~60MHz Temperature range: -40°C~1000°C Certifications: CE, UKCA, cETLus
Specification
| Auto power off | Yes |
| Back order lead time | 10 Days |
| Continuity buzzer | Yes |
| Data hold | Yes |
| Display count | 60000 |
| Form factor | Handheld |
| Frequency | 10Hz to 60MHz |
| Lcd backlight | Yes |
| Low battery indication | Yes |
| Maximum ac current | 10A |
| Maximum ac voltage | 1000V |
| Maximum capacitance | 60mF |
| Maximum dc current | 10A |
| Maximum dc voltage | 1000V |
| Maximum resistance | 60MΩ |
| Max min mode | Yes |
| Range | Auto |
| Temperature range | -40℃ to 1000℃ |
| True rms | Yes |
