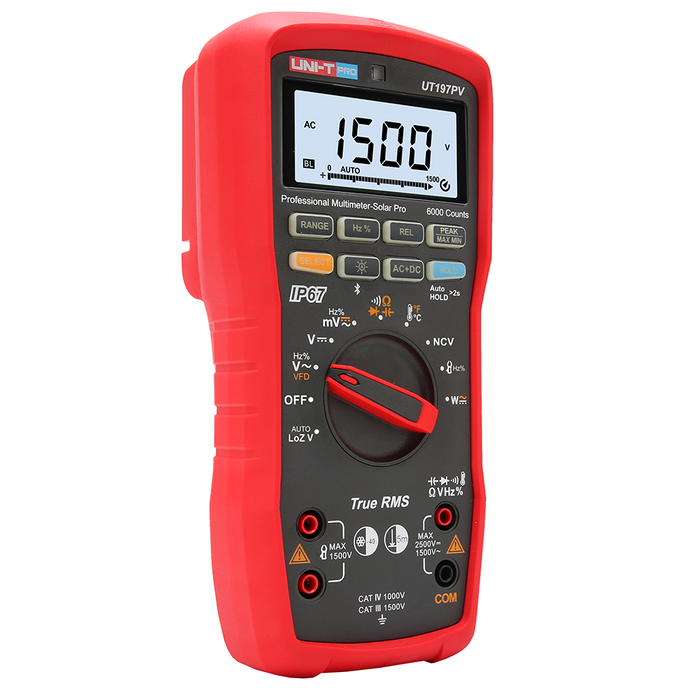

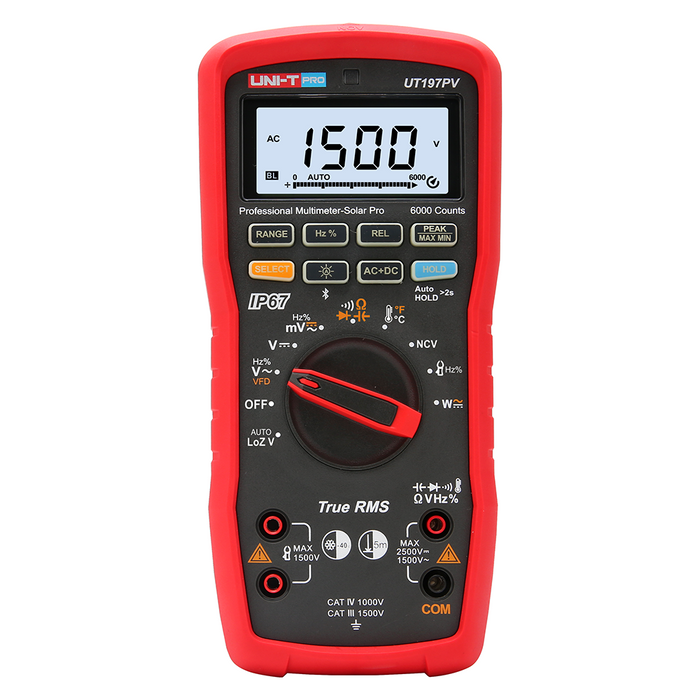

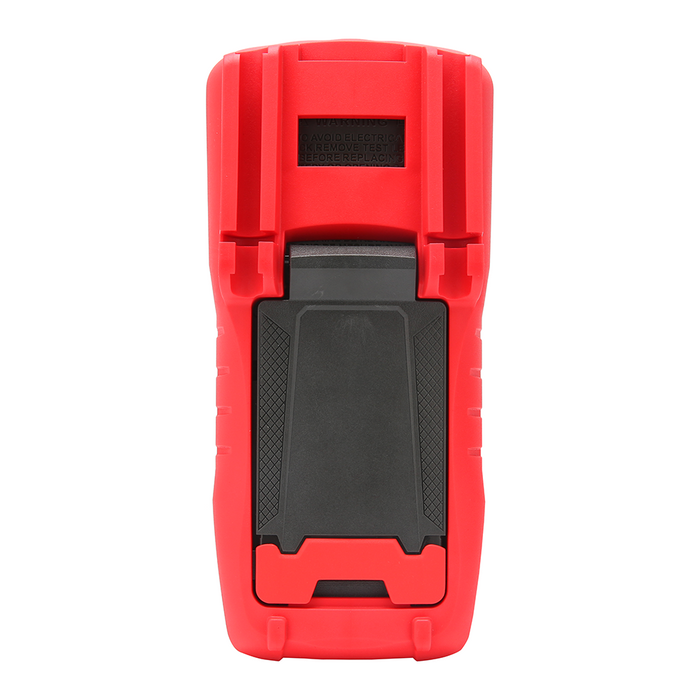

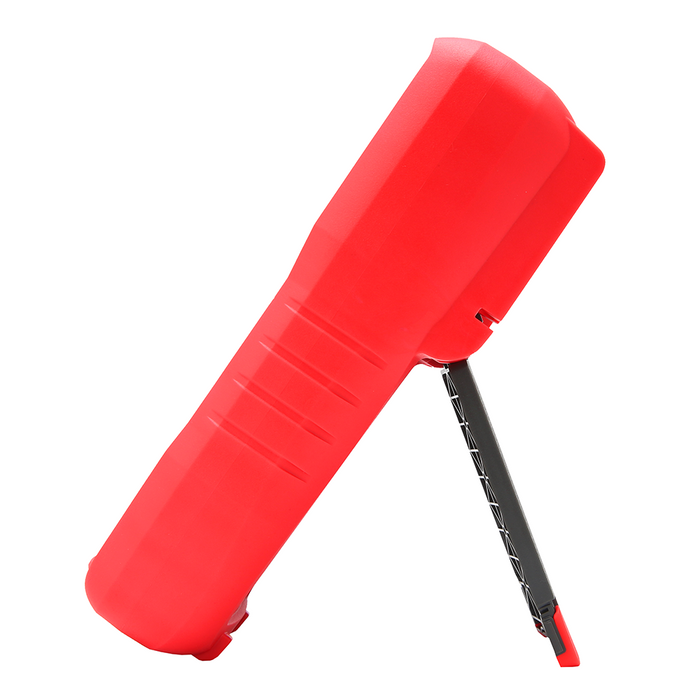

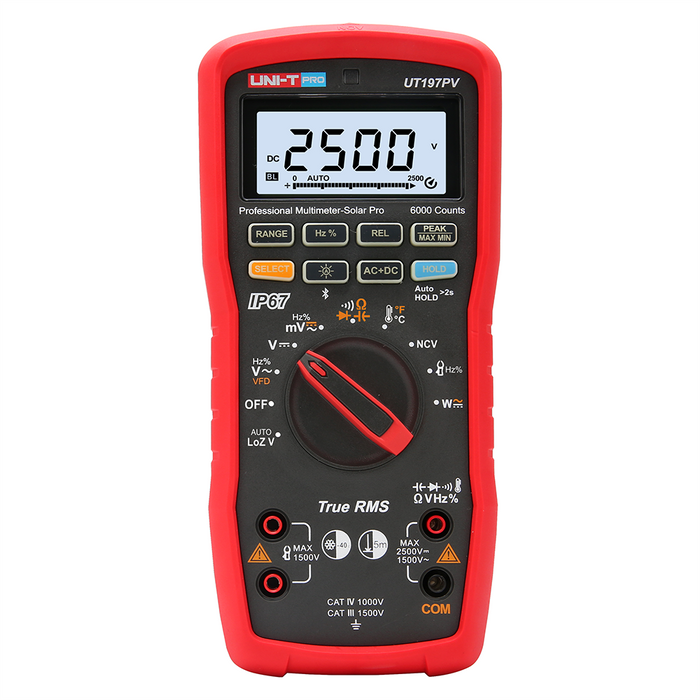

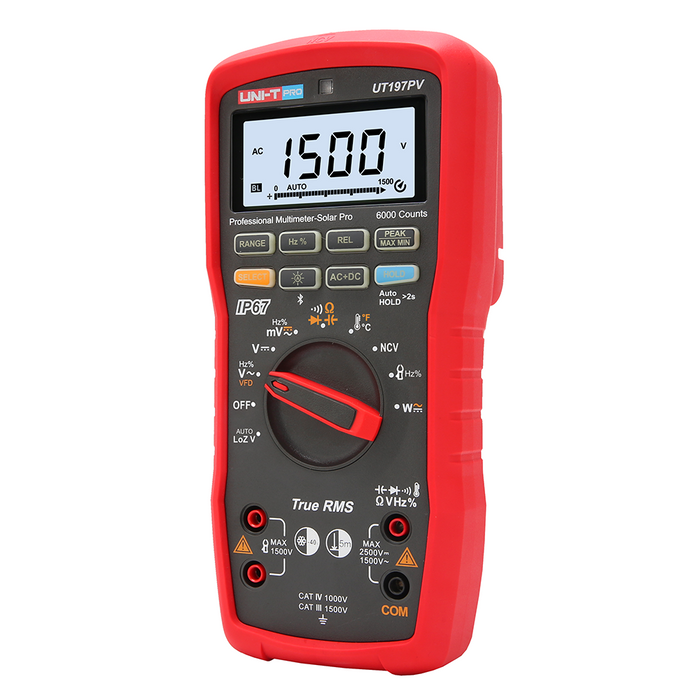

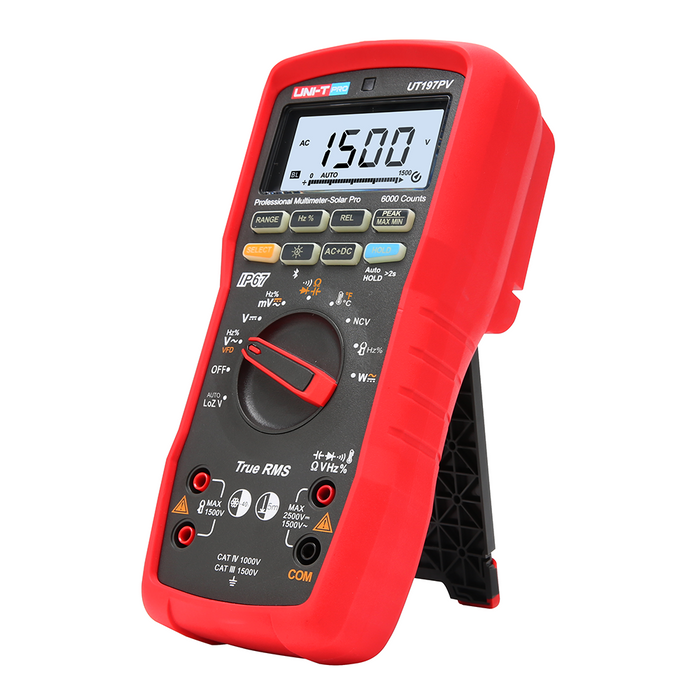

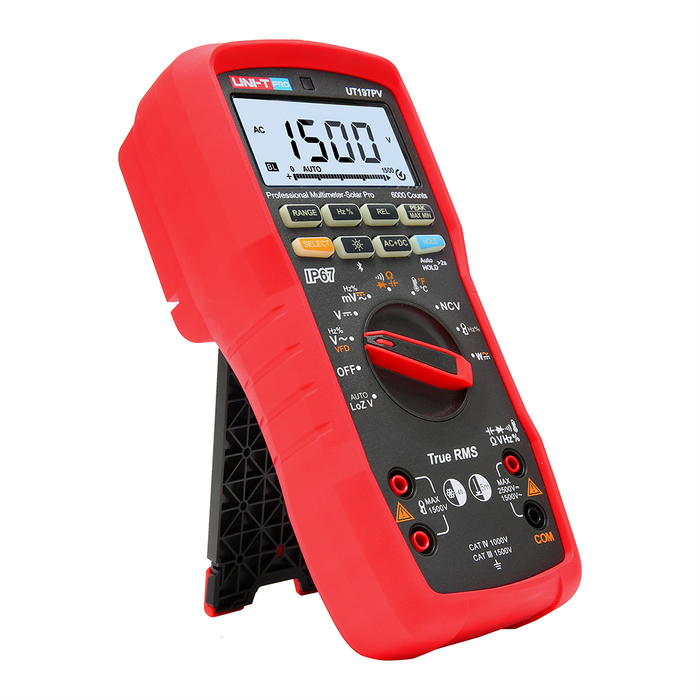

UT197PV Solar PV Professional True RMS Auto Range Digital Multimeter IP67 Uni-T

The UT197PV is a high precision true RMS handheld digital multimeter with 6000 count display and IP67 protection. The meter can ednure drops up to 5m and is suited for use in harsh conditions.Its built-in VFD anti-interference startup mode filters out carrier frequency and distorted voltage interferences for stable inverter measurements. The 1000A AC/DC current measurement (UT–CS07) with Bluetooth enables result recording via UNI-T SmartTest APP, generating graphs and tables. Certified to CAT IV 1000V safety level (CE, cETLus), it’s widely used in power construction, equipment maintenance, petrochemical, engineering, HVAC, new-energy, factory, and laboratory applications.

True RMS measurement with 6,000 counts

AC/DC voltage: AC 1500V, DC 2500V

Power measurement: 1500KVA(AC) & 2500KVA (DC)

VFD output measurement

External clamp: AC/DC 1000A (Optional: UT-CS07)

IP67 protection and 5m drop

Overvoltage category: CAT IV 1000V & CAT III 1500V

Operating temperature: -40°C ~ 55°C

Automatic backlight

Bluetooth function

Batteries: 3*AA 1.5V (included)

External clamp UT-CS07 (optional)

Approvals: CE, cETLus, RoHS
