UT267B Intelligent 3 Phase Clamp Meter Voltammeter Uni-T
by Uni-T
SKU 488665
MPN: UT267B
Availability:
Out of stock
Sold out
Original price
£686.53
-
Original price
£686.53
Original price
£686.53
Inc VAT
£686.53
-
£686.53
Current price
£686.53
Inc VAT

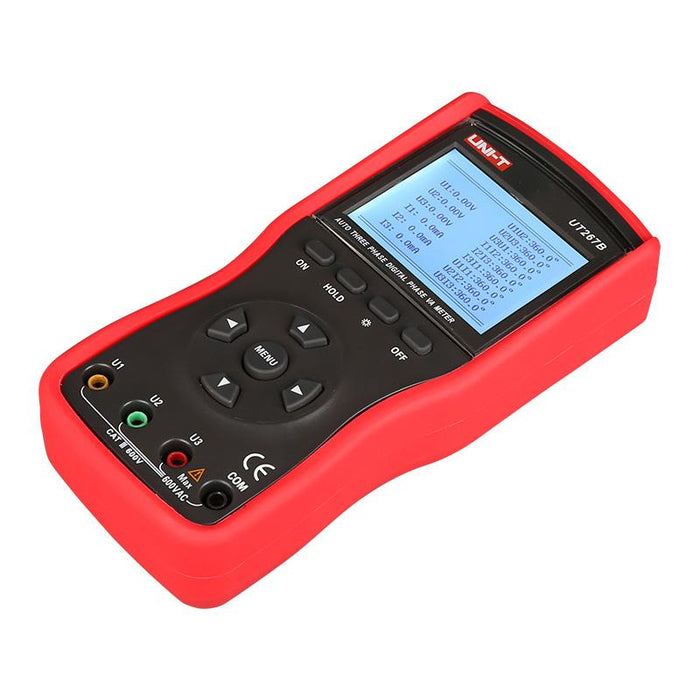

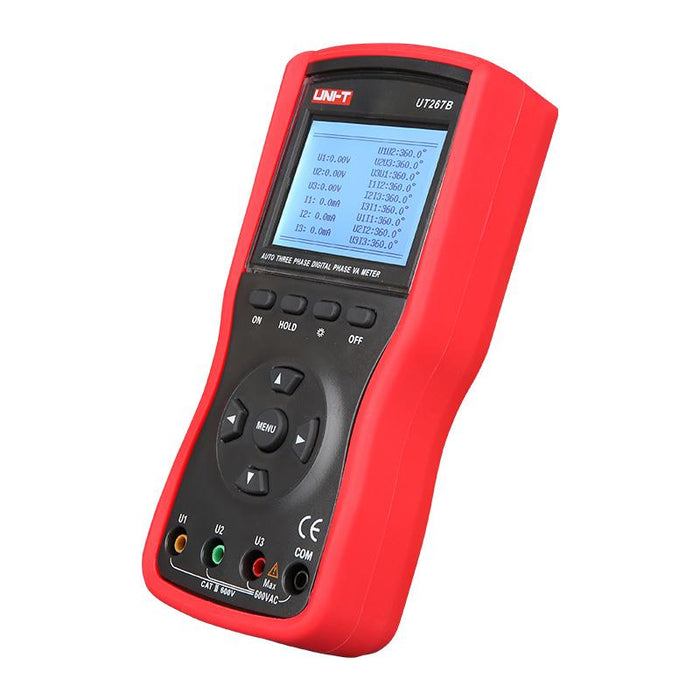

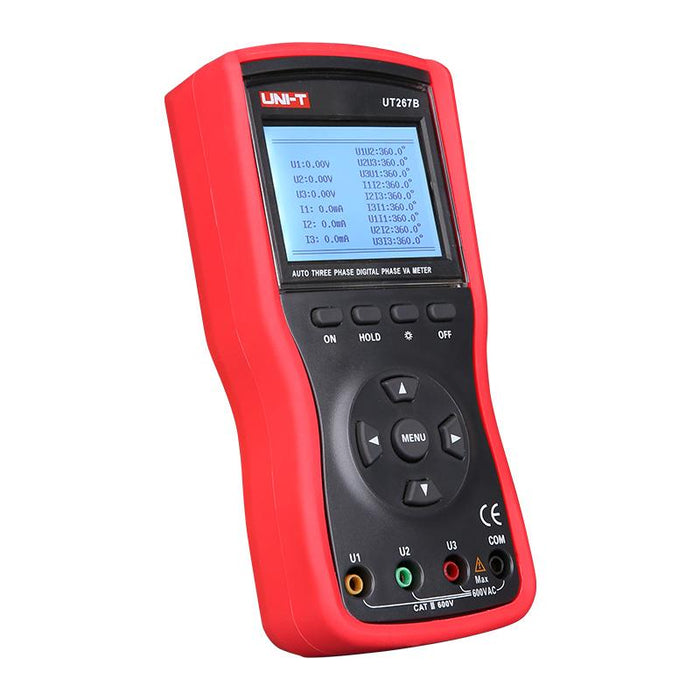

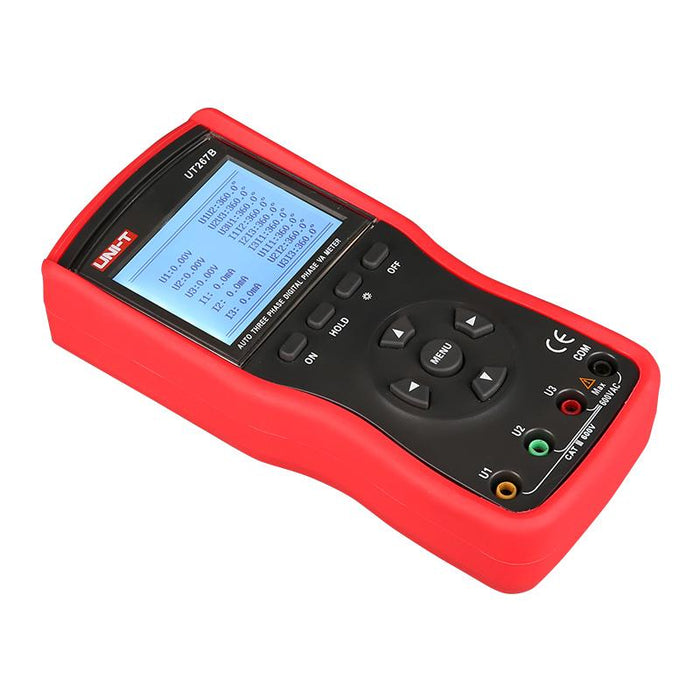

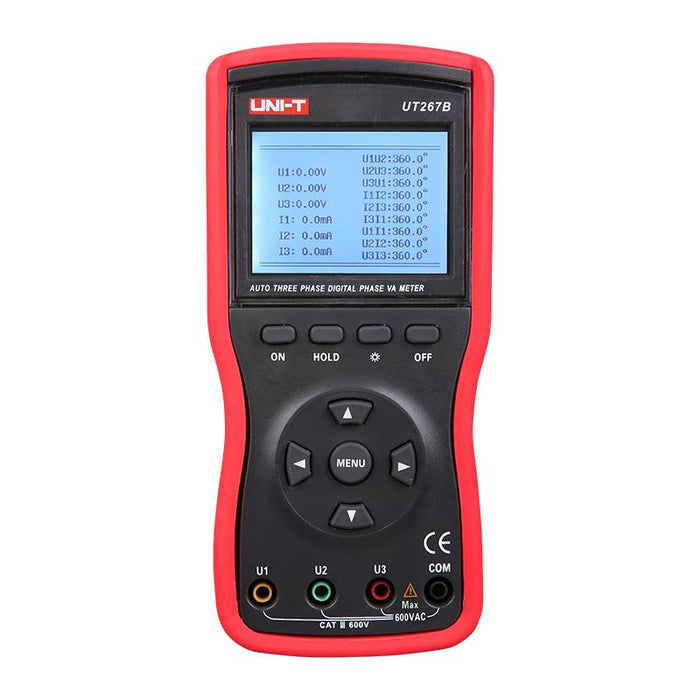

The UT267B is an economical 3 phase meter. The meter is able to simultaneous measure 3 phase systems and display phase diagram on the LCD screen. The meter can be used to monitor electric distribution box, suitable for electricians, electrical maintenance, repair, and training personnel.
Measures voltage, current, power, frequency, relationships between U-U, U-I, I-I all at the same time Auto range, 2/s sampling rate Data hold RS-232 interface Low power consumption (40mA), low battery indication Auto power off; LCD backlight Anti-vibration, anti-skidding, high-insulation case LCD: 240x160 pixel display Comes with 0.5A current clamp Certifications: CE, UKCA
Specification
| Auto power off | Yes |
| Back order lead time | 10 Days |
| Data hold | Yes |
| Form factor | Handheld |
| Frequency | 45Hz to 65Hz |
| Lcd backlight | Yes |
| Low battery indication | Yes |
| Maximum ac current | 20A |
| Maximum ac voltage | 600V |
| Range | Auto |
