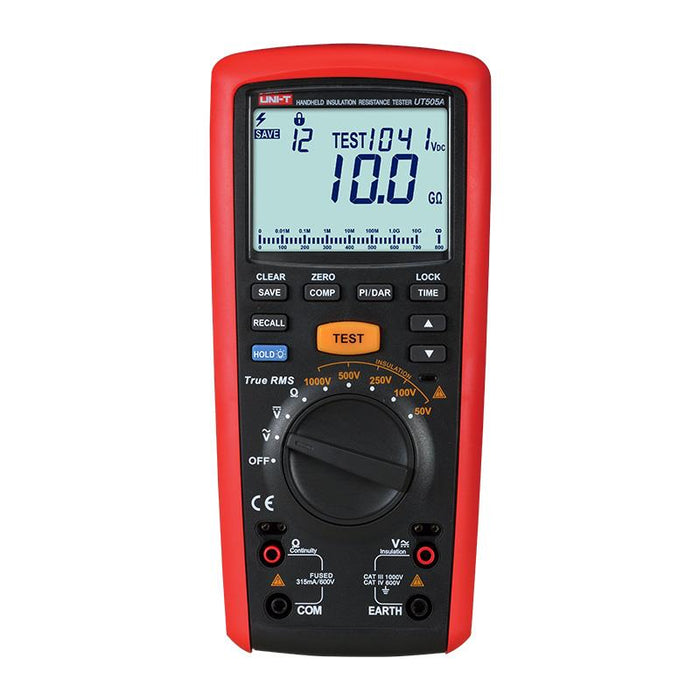

UT505A Handheld Insulation Resistance Tester Uni-T

by Uni-T
SKU 488680


Out of stock
Sold out
Original price £167.75 - Original price £167.75
Original price
£167.75 Inc VAT
£167.75 - £167.75
Current price £167.75 Inc VAT
The UT505A is a handheld true RMS insulation resistance tester combining features of a digital multimeter and insulation resistance tester. Aside from the typical multimeter functions, these meters can also measure insulation resistance, PI, DAR, and automatically calculate resistance ratio to determine the insulation status. The UT505A can be used in insulation resistance testing of precision tools, including motors, cables, transformers, switches, electrical appliances, and insulated materials.

  • Auto power off
  • LCD backlight
  • High voltage output alarm
  • 99-group data storage
  • Data hold
  • Meets IEC 61557: 61557-1:2007; 61557-2:2007; 61557-4:2007
  • Certifications: CE, UKCA, ETL
  • Specification
    Back order lead time 10 Days
    Continuity buzzer Yes
    Display count 6000
    Form factor Handheld
    Frequency 45Hz to 1kHz
    Low battery indication Yes
    Maximum ac voltage 600V
    Maximum capacitance 500µF
    Maximum dc voltage 600V
    Range Auto
    True rms Yes
