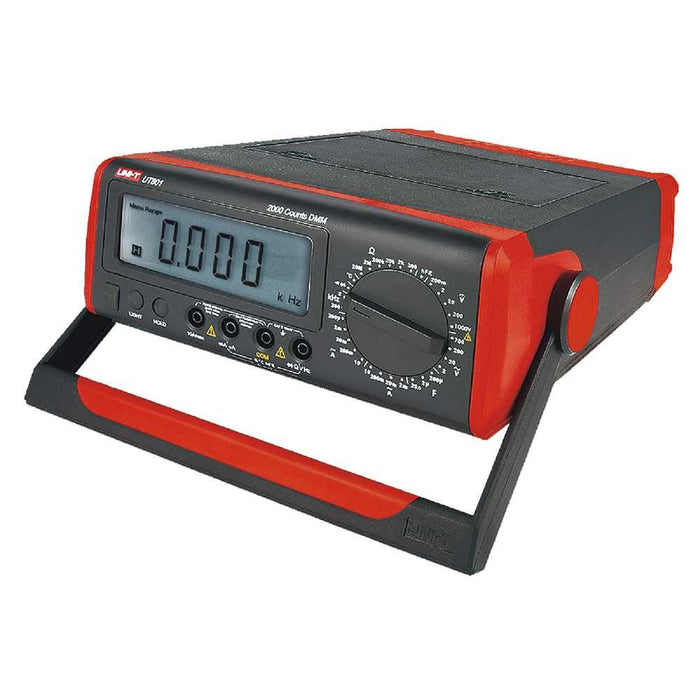

UT801 Bench Digital Multimeter Uni-T
by Uni-T
SKU 551716
MPN: UT801
Availability:
Only 5 left!
Original price
£94.95
-
Original price
£94.95
Original price
£94.95
Inc VAT
£94.95
-
£94.95
Current price
£94.95
Inc VAT
UT801 is a manual range digital bench-type multimeter with average value display, full function and full range overload protection and a unique outlook design. It can be powered by AC 220V/50Hz or 1.5V batteries(R14)*6. It’s your ideal testing meter with superior performance. UT801 is widely used in Industrial Production and Service, Technological Research and Design, College Education (Laboratory, Courses), and Automotive Industry. The meter complies with IEC61010-1 standard, CATII 1000V.
AC 220V/50Hz or 1.5V Batteries (R14)×6 108mm x 34.5mm LCD screen Dimensions: 300mm x 245mm x 105mm Weight: 1500g Comes with test lead, AC220V power cord, english manual, point contact, temperature probe, multi–purpose socket
Specification
Back order lead time | 120 Days |
Continuity buzzer | Yes |
Data hold | Yes |
Display count | 1999 |
Form factor | Benchtop |
Frequency | 2kHz to 200kHz |
Lcd backlight | Yes |
Low battery indication | Yes |
Maximum ac current | 10A |
Maximum ac voltage | 750V |
Maximum capacitance | 200µF |
Maximum dc current | 10A |
Maximum dc voltage | 1000V |
Maximum resistance | 20MΩ |
Max min mode | Yes |
Operating temperature | 0 to 40°C |
Range | Auto |
Temperature range | -40℃ to 1000℃ |
Transistor test | Yes |
