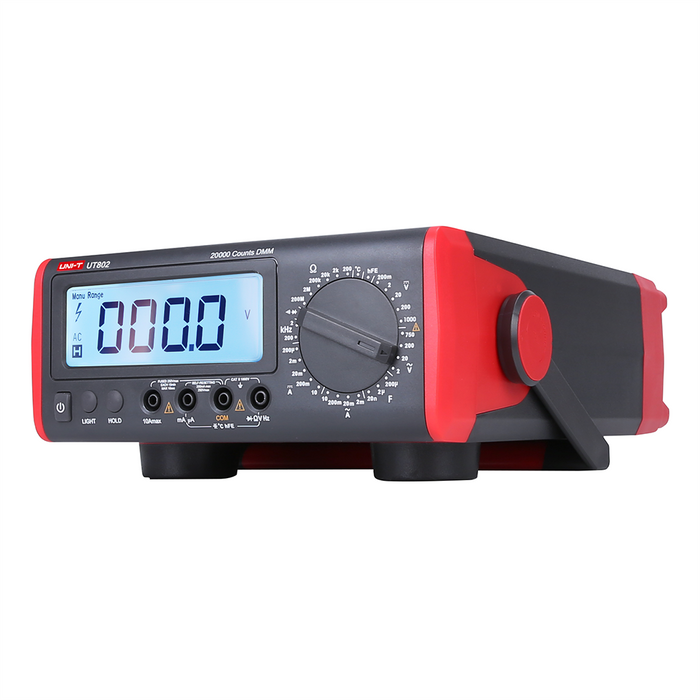

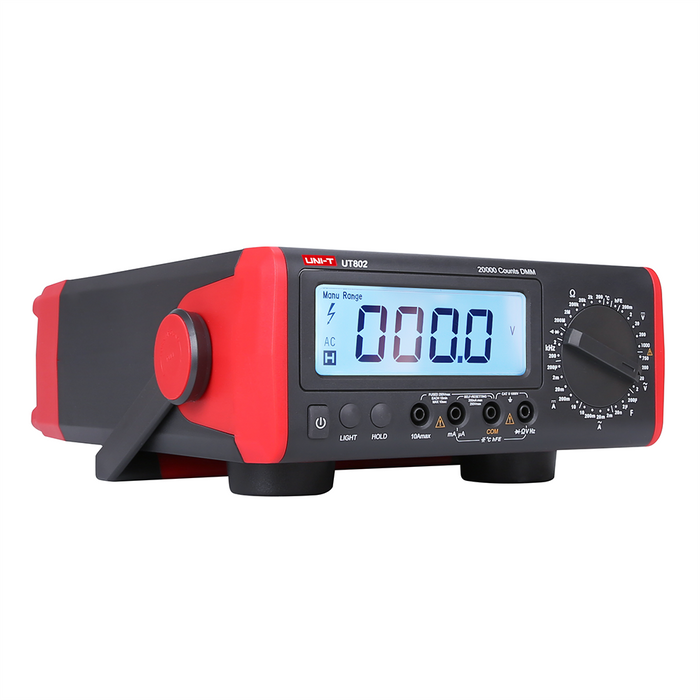

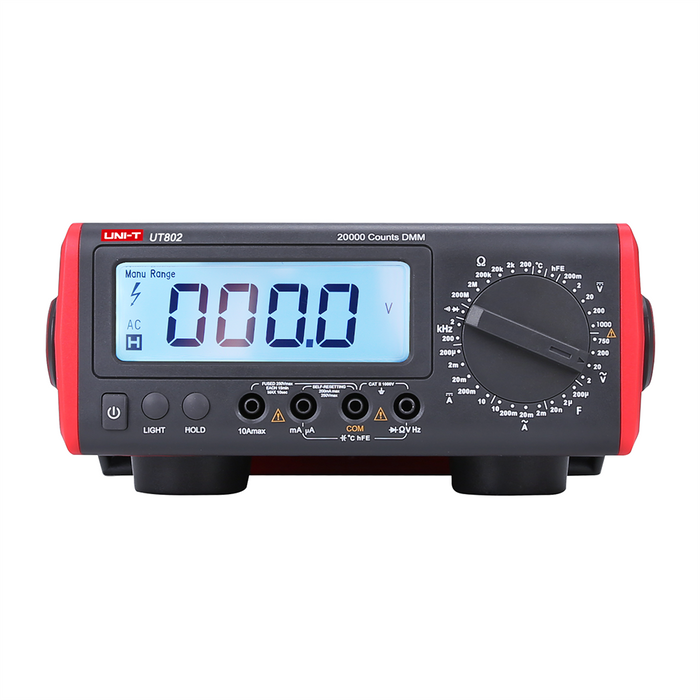

UT802 Bench Digital Multimeter Uni-T
by Uni-T
SKU 493820
MPN: UT802
Availability:
Only 4 left!
Original price
£93.19
-
Original price
£93.19
Original price
£93.19
£93.19
-
£93.19
Current price
£93.19
The UT802 is a desktop multimeter designed for multi-purpose electronic measuring. The meter meets various measurement needs of workbench and system applications, providing exceptional accuracy and multiple user-friendly functions. The multimeter is designed for use with engineers, educations, industrial and general testing applications.
Max DC voltage: 1000V Max AC voltage: 750V Max DC current: 10A Max AC current: 10A Max resistance: 200ΜΩ Max capacitance: 200µF Max frequency: 200kHz Temperature reading: -40 °C~1000°C Display count: 20,000 Manual range Diode and transistor mode Continuity buzzer Low battery indication USB and RS232 connectivity Data hold LCD backlight 10ΜΩ input impedance for DC voltage Misuse alarm Reading resolution: 4 ½ Fastest test rate: 2~3 rdgs/s Frequency response: 1kHz Power: mains or 6*1.5V R14 batteries Includes battery, test lead, alligator clip, temperature probe, mains power adapter
Specification
| Back Order Lead Time | 7 Days |
| Continuity Buzzer | Yes |
| Data Hold | Yes |
| Display Count | 20,000 |
| Form Factor | Benchtop |
| Frequency | 200kHz |
| LCD Backlight | Yes |
| Low Battery Indication | Yes |
| Maximum AC Current | 10A |
| Maximum AC Voltage | 750V |
| Maximum Capacitance | 200µF |
| Maximum DC Current | 10A |
| Maximum DC Voltage | 1000V |
| Maximum Resistance | 200MΩ |
| MOQ | 1 |
| Range | Manual |
| Temperature Range | -40℃ to 1000℃ |
| Transistor Test | Yes |
