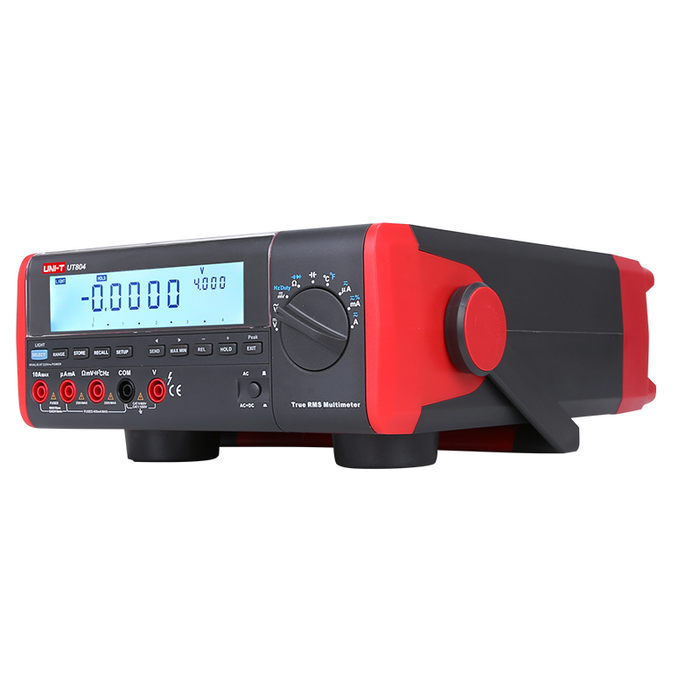

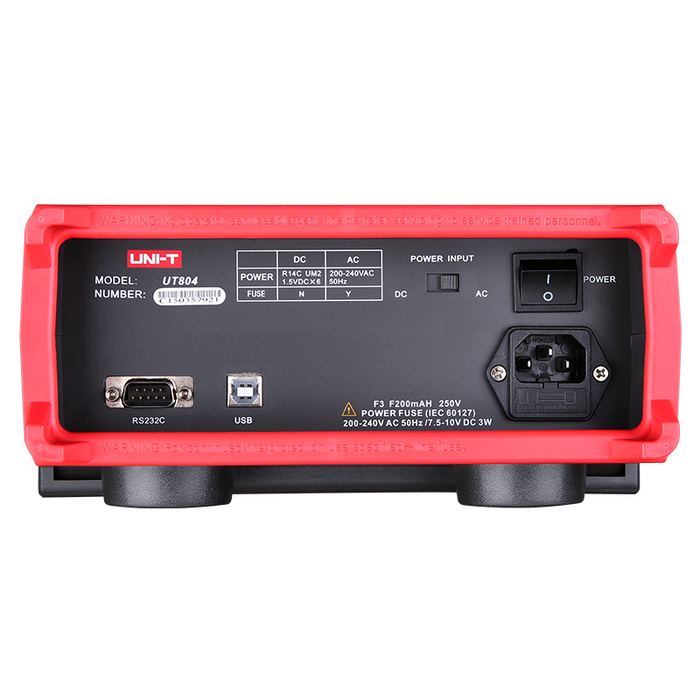

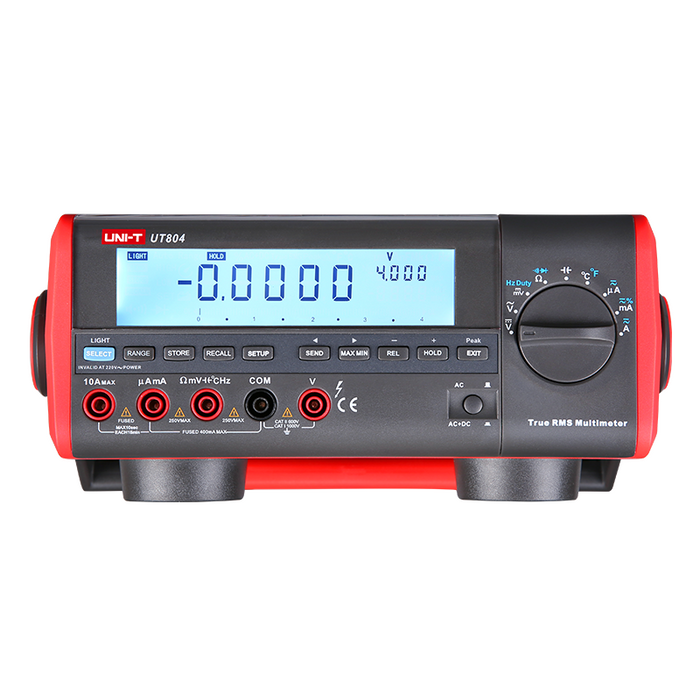

UT804 True RMS Bench Digital Multimeter Uni-T
by Uni-T
SKU 493821
MPN: UT804
Availability:
Only 4 left!
Original price
£201.60
-
Original price
£201.60
Original price
£201.60
£201.60
-
£201.60
Current price
£201.60
The UT804 is a desktop true RMS multimeter designed for multi-purpose electronic measuring. The meter meets various measurement needs of workbench and system applications, providing exceptional accuracy and multiple user-friendly functions. The multimeter is designed for use with engineers, educations, industrial and general testing applications.
Max DC voltage: 1000V Max AC voltage: 1000V Max DC current: 10A Max AC current: 10A Max resistance: 40ΜΩ Max capacitance: 40mF Max frequency: 400MHz Temperature reading: -40 °C~1000°C Display count: 40,000 Bandwidth: 100kHz Duty cycle: 0-100% Auto range True RMS Diode mode Continuity buzzer Low battery indication USB and RS232 connectivity Data hold, peak hold, max, min Relative mode Data storage 9999 Double backlight Analogue bar graph - 81 Input protection Current measurement alarm Reading resolution: 4 ¾ Fastest test rate: 2~3 rdgs/s Frequency response: 100kHz Power: mains or 6*1.5V R14 batteries Includes test lead, power cable, software, RS-232 cable, USB cable, alligator clip, temperature probe, test clip
Specification
| Auto Power Off | Yes |
| Back Order Lead Time | 7 Days |
| Continuity Buzzer | Yes |
| Data Hold | Yes |
| Display Count | 40,000 |
| Form Factor | Benchtop |
| Frequency | 40Hz to 400MHz |
| LCD Backlight | Yes |
| Low Battery Indication | Yes |
| Maximum AC Current | 10A |
| Maximum AC Voltage | 1000V |
| Maximum Capacitance | 40mF |
| Maximum DC Current | 10A |
| Maximum DC Voltage | 1000V |
| Maximum Resistance | 40MΩ |
| Max Min Mode | Yes |
| MOQ | 1 |
| Range | Auto |
| Temperature Range | -40℃ to 1000℃ |
| Transistor Test | Yes |
| True RMS | Yes |
