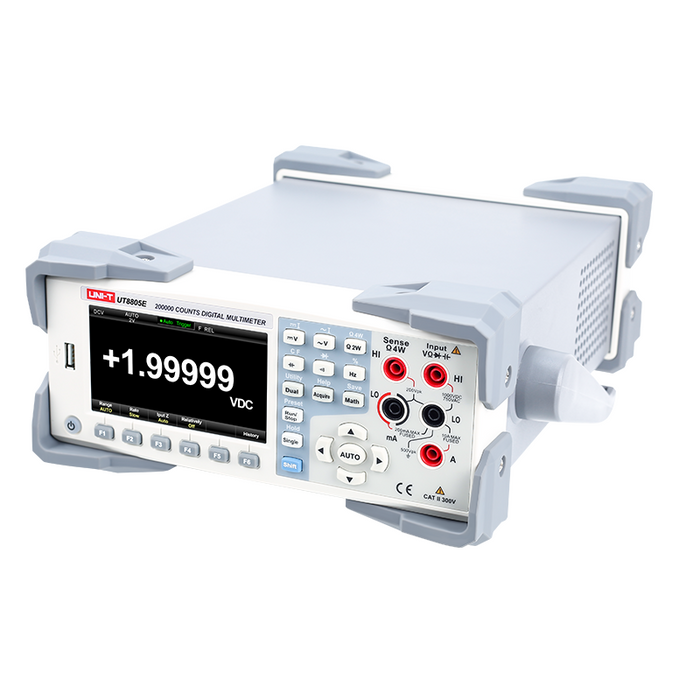

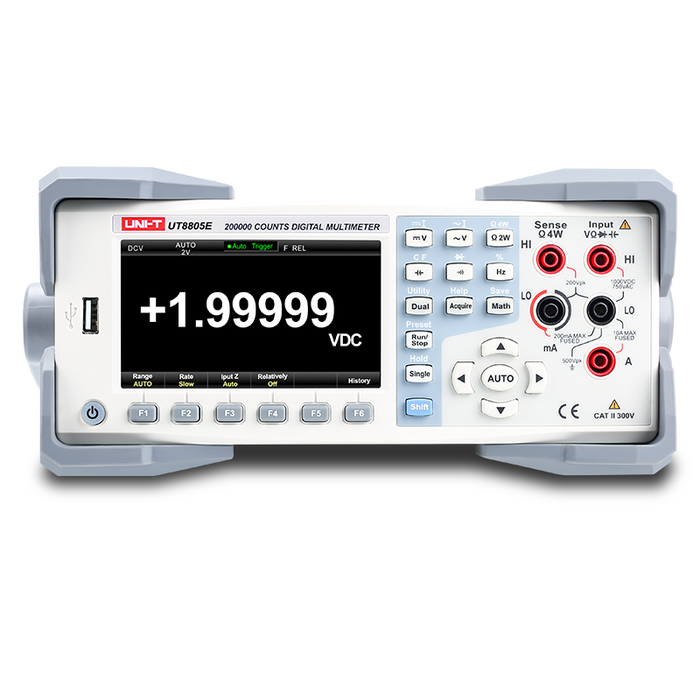

UT8805E True RMS Bench Digital Multimeter Auto Range Uni-T

The UT8805E is an auto-ranging, true RMS desktop digital multimeter with 199,999 counts, up to 5k rdgs/s, 300kHz frequency response, and a 4.3 inch TFT LCD. The multimeter features pass/fail, maximum value/minimum value/average value/relative value measurement, 10k reading history data record and 1GB Nand Flash total capacity. It is suitable for measurement in embedded system design, manufacturing, electric power and education.

Max DC voltage: 1000V

Max AC voltage: 750V

Max DC current: 10A

Max AC current: 10A

Max resistance: 100ΜΩ

Max capacitance: 2mF

Max frequency: 1MHz

Display count: 199,999

5½ reading resolution

5k rdgs/s test rate

100kHz frequency response

0.015% DC voltage accuracy

Display modes: number, bar graph, trend graph, histogram

Dual display function

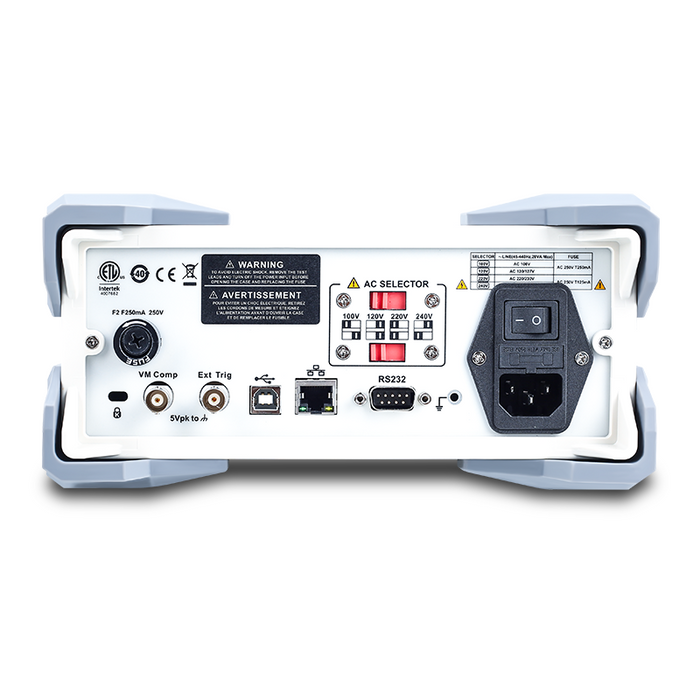

USB, LAN, RS-232 connectivity

3 year warranty
