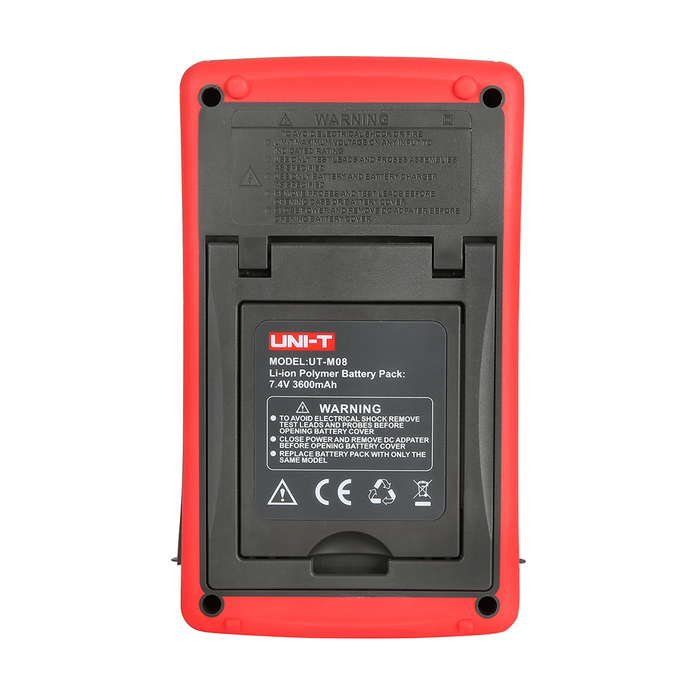

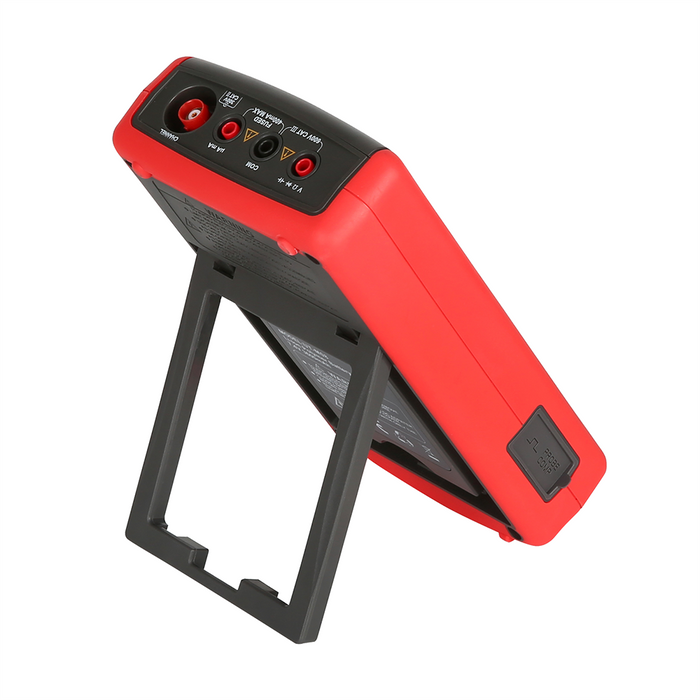

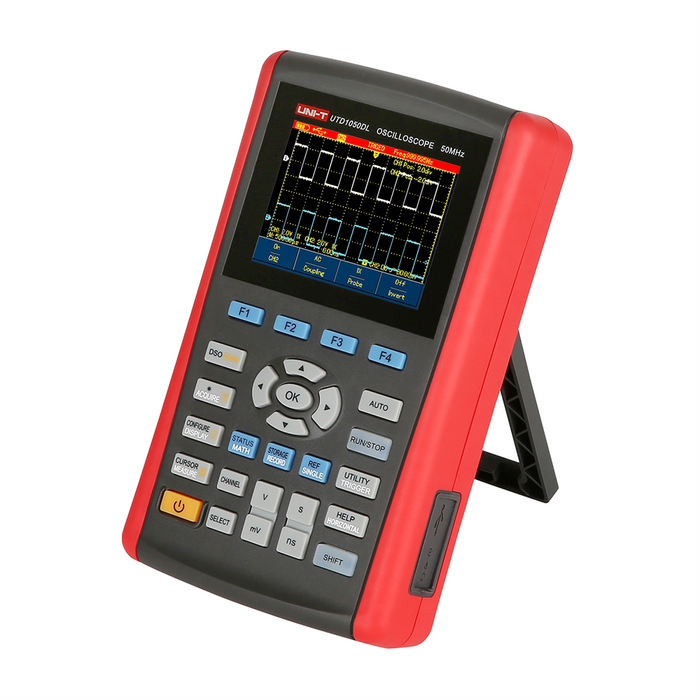

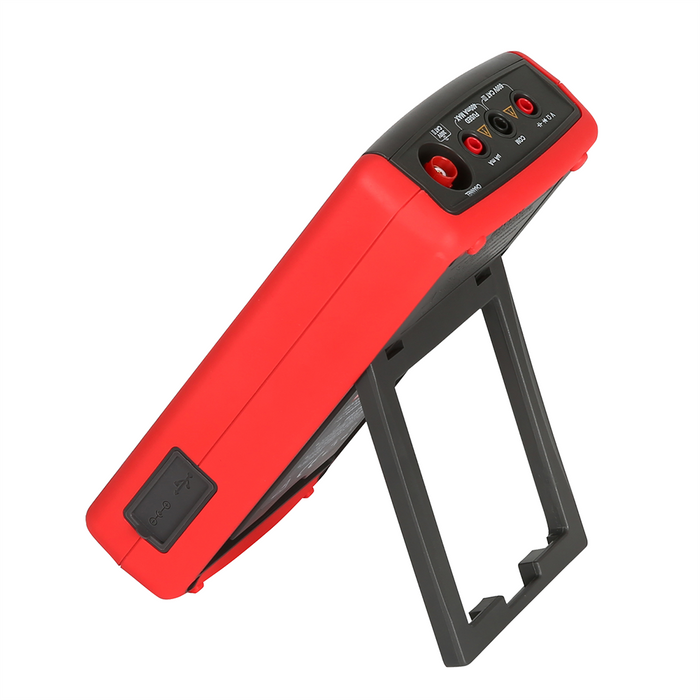

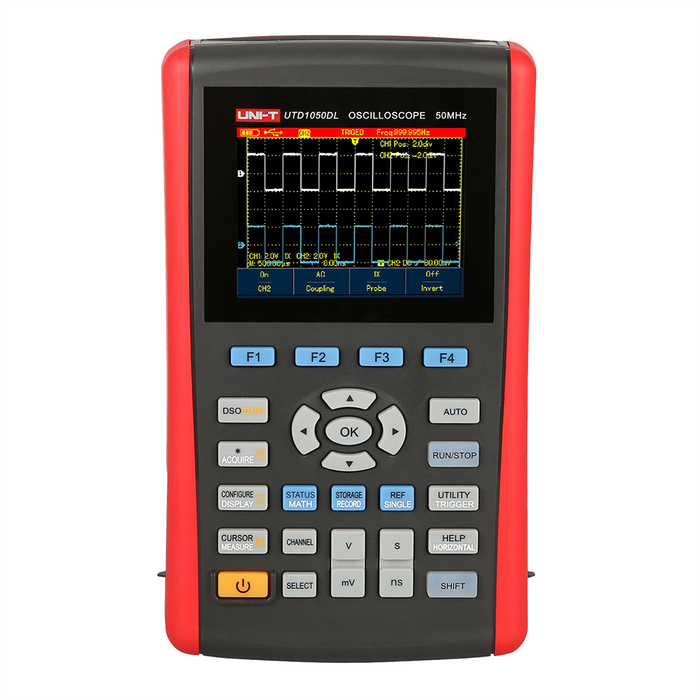

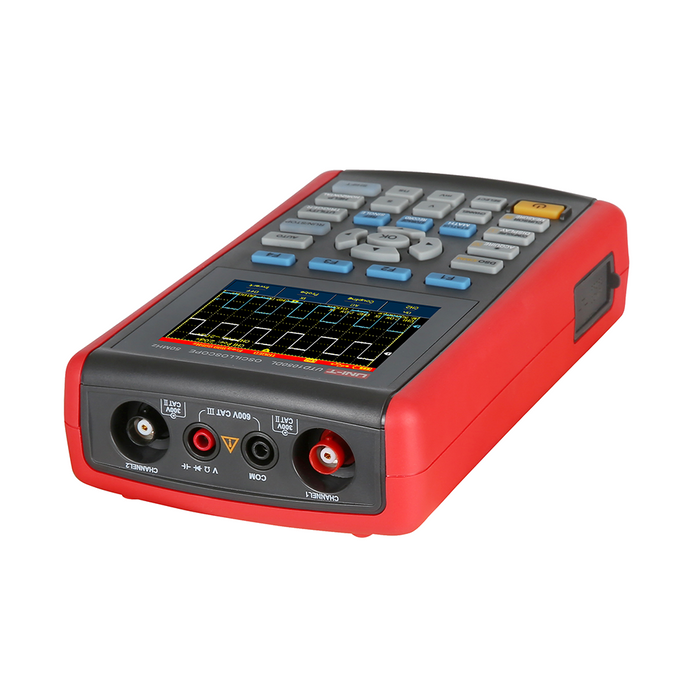

UTD1050DL Handheld 2 Channel Oscilloscope 50MHz Uni-T
by Uni-T
SKU 493825
MPN: UTD1050DL
Availability:
Only 2 left!
Original price
£368.89
-
Original price
£368.89
Original price
£368.89
£368.89
-
£368.89
Current price
£368.89
The UTD1050DL is a 2-channel economical hand-held digital storage oscilloscope, which integrates oscilloscope, multi-meter, trend chart and waveform recording function into a compact package. The portable design brings different visual and operational experience to users. The oscilloscope can be powered by an external power supply or built-in lithium batieries. It is a popular portable measuring instrument tailored for engineers.
Bandwidth: 50MHz Channels: 2 Real-time sample rate: 250 Msa/s Max memory depth: 12 kpts Max DC voltage: 400V Max AC voltage: 400V Max DC current: 4A Max AC current: 4A Max resistance: 40ΜΩ Max capacitance: 100µF 6 hour battery life 22 types of auto measurements 3999 display count Unique waveform record, storage and replay functions 3.5-inch high-resolution and high-contrast colour LCD display Simple printscreen function
Specification
| Back Order Lead Time | 7 Days |
| Bandwidth | 50MHz |
| Channels | 2 Analogue |
| Digital/Analogue | Digital |
| Display | 3.5-Inch 320x240 TFT LCD |
| Interfaces | Mini USB |
| Memory Depth | 12kpts |
| MOQ | 1 |
| Rise Time | <7ns |
| Sampling Rate | 250MSa/s |
| Time Base Range | 5ns/div to 50s/div |
| Trigger Types | Edge, pulse width, video, slope |
| Vertical Range | 5mV/div to 20V/div |
