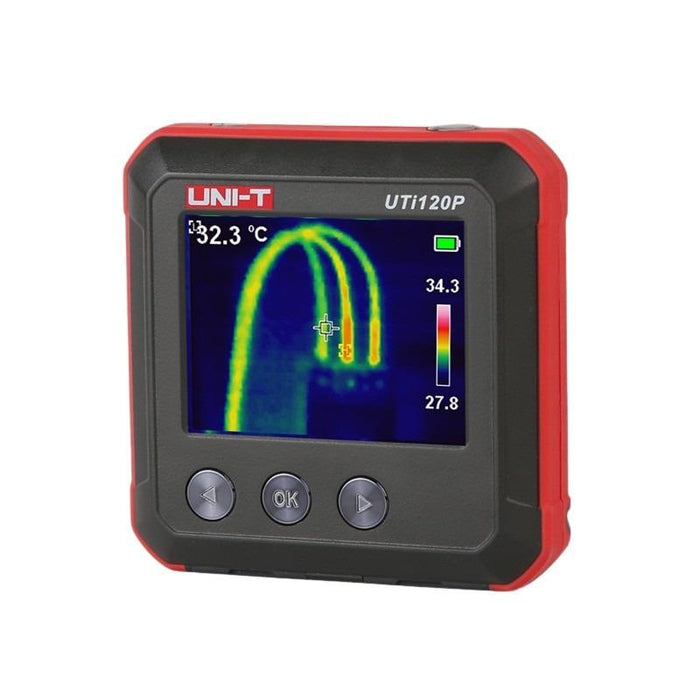

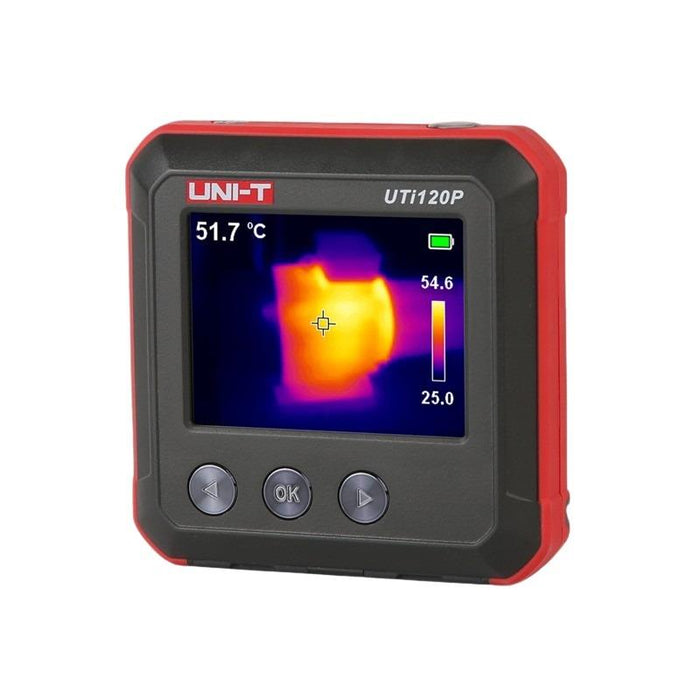

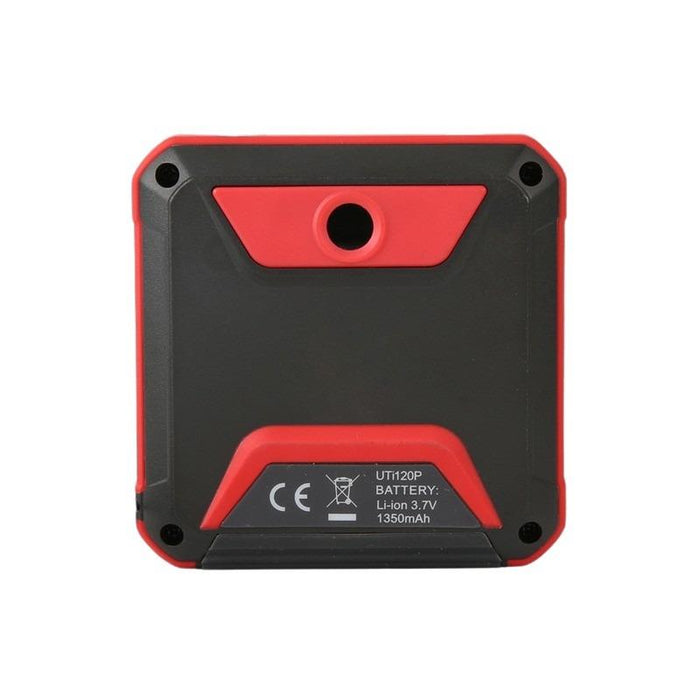

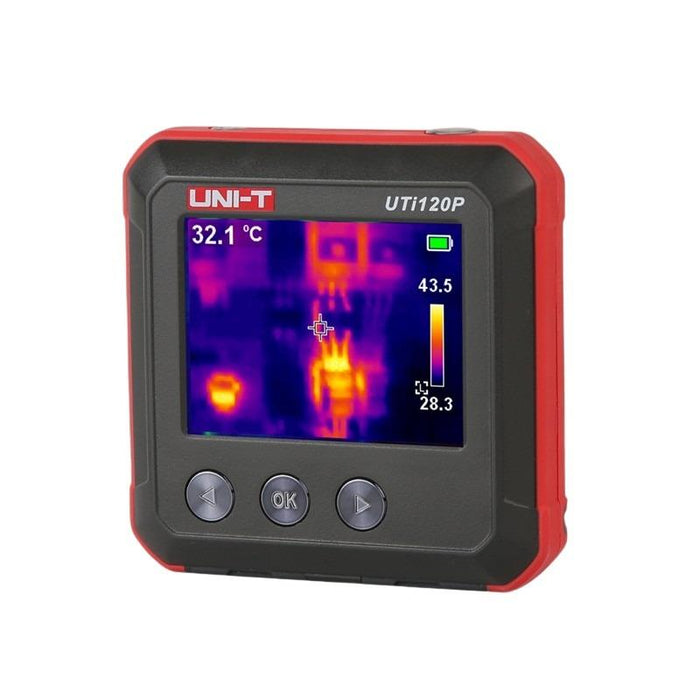

UTi120P Pocket Size Thermal Imaging Camera Uni-T

by Uni-T
SKU 488620

MPN: UTi120P

Availability:
Only 3 left!
Original price £258.95 - Original price £258.95
Original price
£258.95
£258.95 - £258.95
Current price £258.95
The UTi120P thermal camera is mini and portable in size, users can put it into pocket to go anywhere to identify and troubleshoot problems, it can automatically track the objects temperature from -20°C to 400°C which can be widely used in many applications.

  • Mini and portable
  • 2.4" TFT display screen (320x240 Pixels)
  • IR resolution: 120x90
  • Temperature measurement range: 20℃ to 400℃ / -4℉ to 752℉
  • Auto alarm for high/low temperature
  • Auto tracking for hot spot/cold spot
  • Image capture
  • Colour palettes: 3(Iron, Rainbow, Grey)
  • PC software analysis
  • Rechargeable Li-ion battery
  • 1/4" tripod mounting hole
  • 1m drop proof
  • Specification
    Accuracy ±2℃ or ±2%
    Back Order Lead Time 10 Days
    Battery Fixed Li-ion Battery
    Battery Operation Time ≥ 3.5 hours
    Connectivity Micro USB
    Display 2.4" TFT Display
    Field of View 50°×38°
    Focus Focus free
    Frame Rate ≤25Hz
    IR Resolution 120x90
    Spatial Resolution 7.3mrad
    Spectral Range 8~14µm
    Temperature Range -20℃ to 400℃
    Thermal Sensitivity ≤60mK
