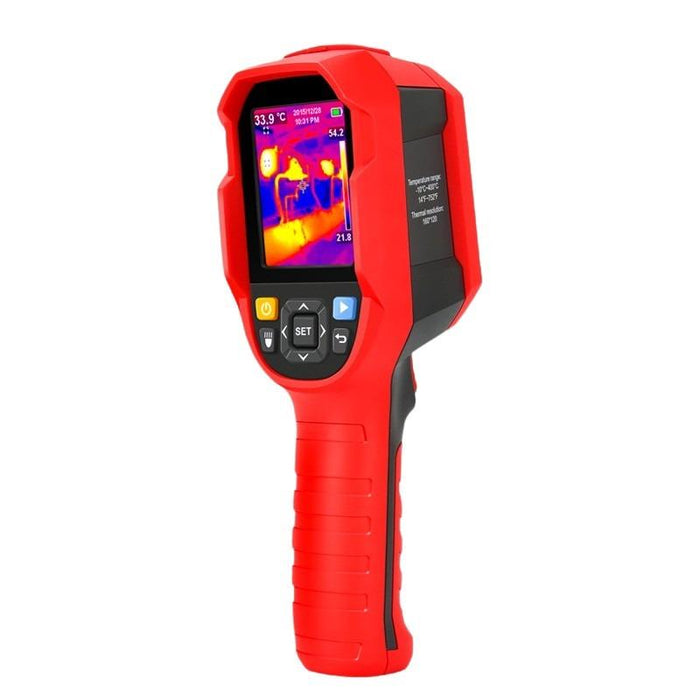

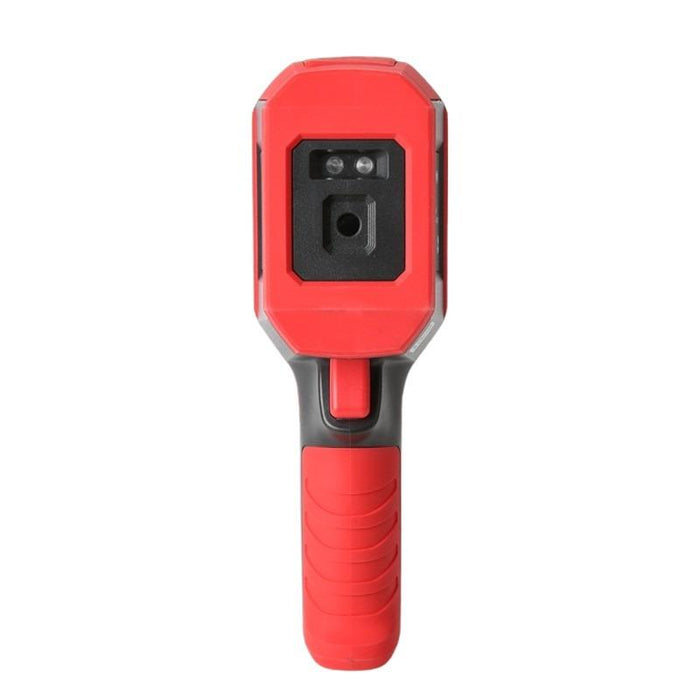

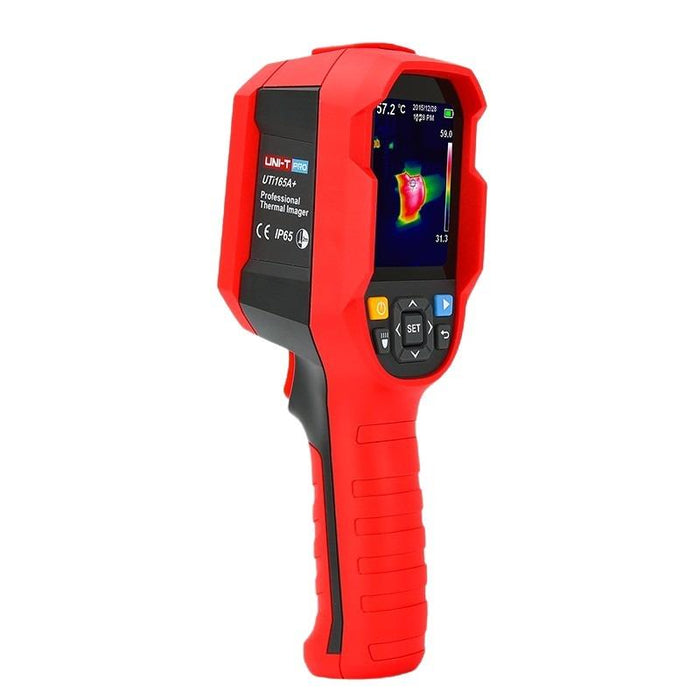

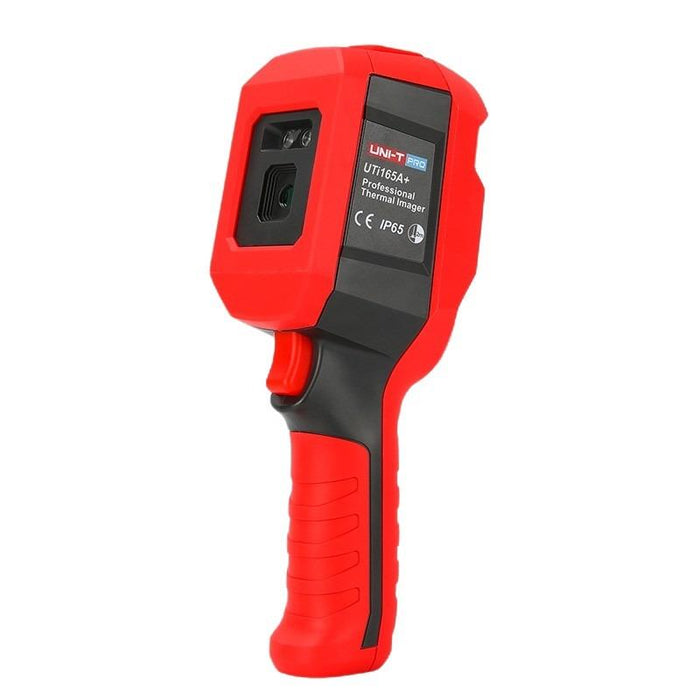

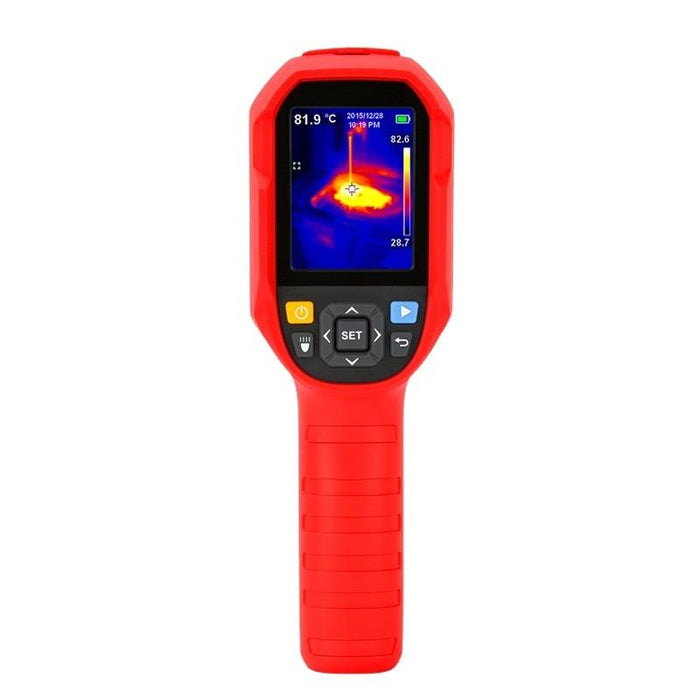

UTi165A+ Heavy Duty Thermal Imaging Camera Uni-T
by Uni-T
SKU 488627
MPN: UTi165A+
Availability:
Out of stock
Sold out
Original price
£416.95
-
Original price
£416.95
Original price
£416.95
£416.95
£416.95
-
£416.95
Current price
£416.95
The UTi165A+ is a rugged yet ergonomically designed thermal camera and user friendly with great performance. With 160x120 pixels and IR resolution which can automatically track the objective's temperature from -10℃ to 400℃. It is an affordable professional troubleshooting tool, widely used in many applications.
Durable and user-friendly 8" TFT display screen (320x240 Pixels) IR resolution: 160x120 Digital camera resolution: 640x480 Temperature measurement range: -10℃ to 400℃ / 14℉ to 752℉ Auto alarm for high/low temperature Auto tracking for hot spot/cold spot Image capture Colour palettes: 5 (White hot, Red hot, Ice blue, Rainbow, Ironbow) LED flashlight PC software analysis Rechargeable Li-ion battery 1/4" tripod mounting hole IP65 2m drop proof
Specification
| Accuracy | ±2℃ or ±2% |
| Back Order Lead Time | 10 Days |
| Battery | Fixed Li-ion Battery |
| Battery Operation Time | ≥ 7 hours |
| Colour Palettes | 7 |
| Connectivity | USB-C |
| Display | 2.8" TFT Display |
| Field of View | 56°×42° |
| Focus | Focus free |
| Frame Rate | ≤9Hz |
| Image Modes | Thermal, Visual, Fusion |
| IP Rating | IP65 |
| IR Resolution | 160x120 |
| On Screen Analyzer | 3 Points |
| Spatial Resolution | 6.1mrad |
| Spectral Range | 8~14µm |
| Temperature Alarm | Yes |
| Temperature Range | -10℃ to 400℃ |
| Thermal Sensitivity | ≤50mK |
