UTi256G Wi-Fi Professional Thermal Imaging Camera Uni-T
by Uni-T
SKU 488637
MPN: UTi256G
Availability:
Out of stock
Sold out
Original price
£2,379.63
-
Original price
£2,379.63
Original price
£2,379.63
£2,379.63
£2,379.63
-
£2,379.63
Current price
£2,379.63

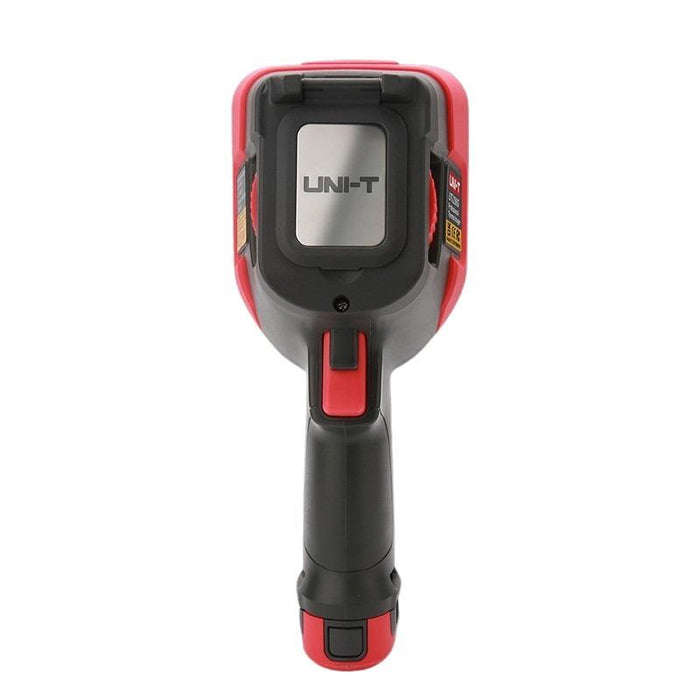

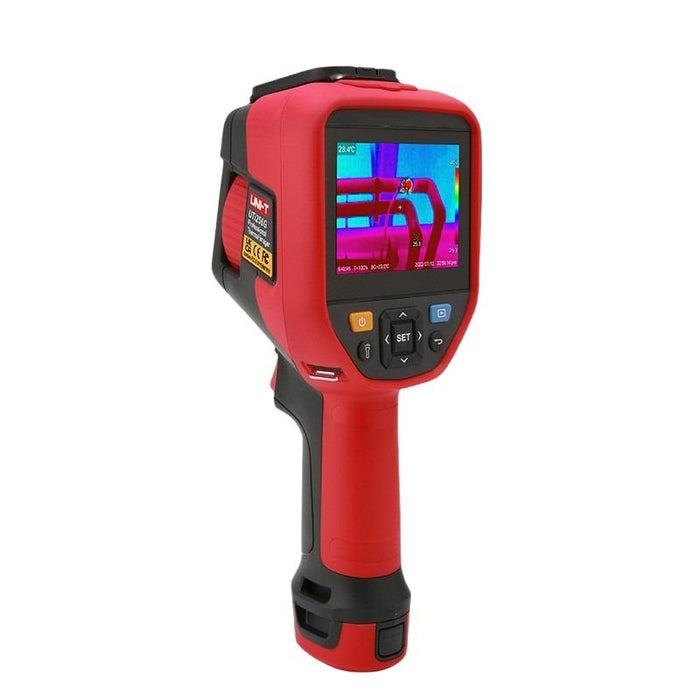

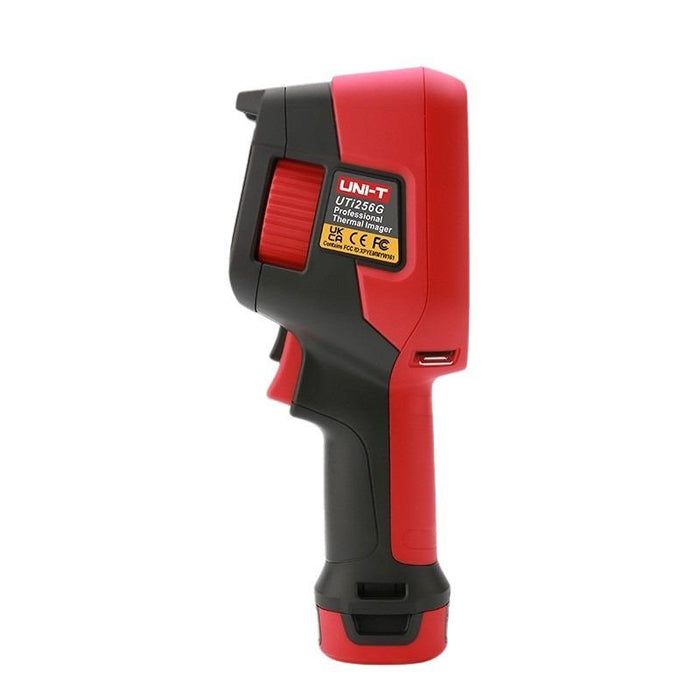

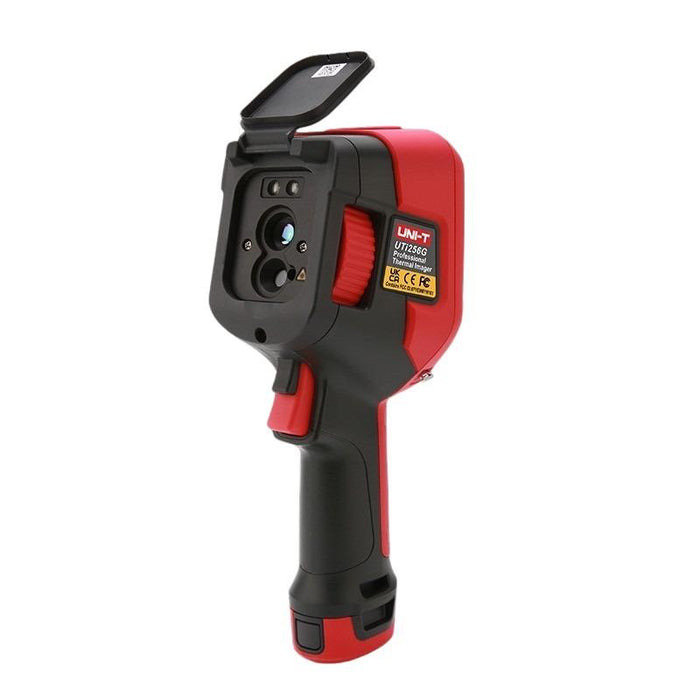

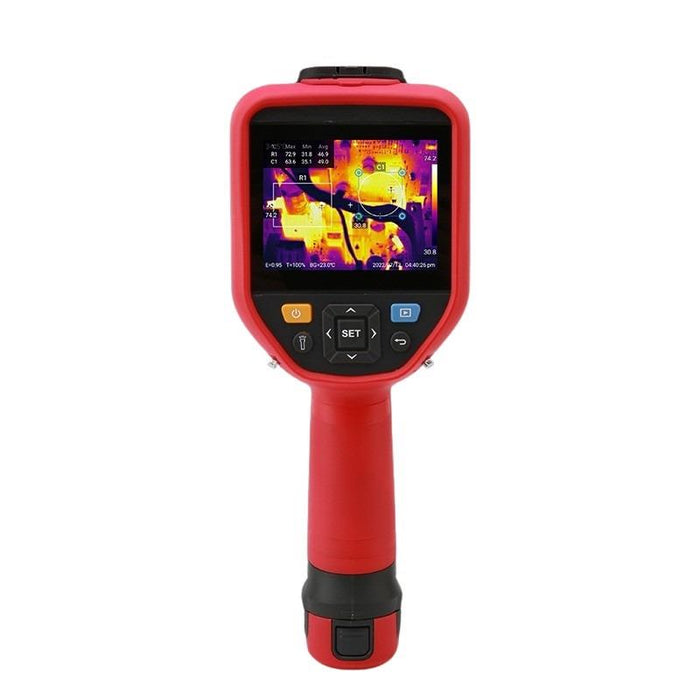

The UTi256G is a professional enhanced thermal camera that specially designed for industrial use with high IR resolution 256x192 and wide temperature range -20℃ to 550℃. The professional manual focus lens can flexibly adjust the focal length according to different objectives distance and provide high quality image. The 3.5" large IPS touch screen provides a more efficient and convenient operation experience for users. The UTi256G also support various outstanding functions: such as Wi-Fi, voice recording, laser pointer, on screen analyzer, etc. They are perfect troubleshooting tools for many industrial applications.
3.5" IPS touchscreen (640x480) IR resolution: 256x192 Temperature measurement range: -20℃ to 550℃ On screen analyzer :3 Points/3 Lines/3 Rectangles/3 Circles Digital camera resolution: 5MP Focus: Manual focus Digital zoom: 2x, 4x Wi-Fi and Bluetooth connection through Mobile App PC software: analysis and real-time image projection Voice recording Image modes: Thermal,Visual image,Fusion,PIP Colour palettes: 7(White hot, Black hot, Red hot, Ironbow, HC Rainbow, Rainbow, Lava) Isotherm: 5(Auto/Manual/Above/Below/Section) 5200mAh replaceable battery pack (Type-C rechargeable) IP54 2m drop proof
Specification
| Accuracy | ±2℃ or ±2% |
| Back Order Lead Time | 10 Days |
| Battery | Detachable Li-ion Battery |
| Battery Operation Time | ≥ 5 hours |
| Colour Palettes | 7 |
| Connectivity | USB-C |
| Digital Camera Resolution | 5MP |
| Display | 3.5" Touch |
| Field of View | 28°×20° |
| Focus | Manual |
| Frame Rate | ≤30Hz |
| Image Modes | Thermal, Visual, Fusion, PIP |
| IP Rating | IP54 |
| IR Resolution | 256x192 |
| On Screen Analyzer | 3 Points, 3 Lines, 3 Rectangles, 3 Circles |
| Spatial Resolution | 1.91mrad |
| Spectral Range | 7.5~14µm |
| Temperature Alarm | Yes |
| Temperature Range | -20℃ to 550℃ |
| Thermal Sensitivity | ≤40mK |
| Wi-Fi | Yes |
