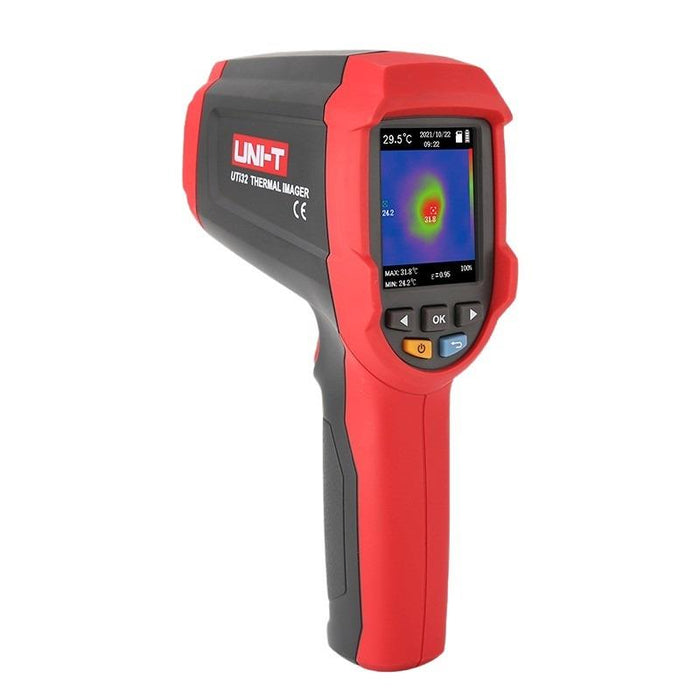

UTi32 High Temperature Thermal Imaging Camera Uni-T
by Uni-T
SKU 488622
MPN: UTi32
Availability:
Out of stock
Sold out
Original price
£191.90
-
Original price
£191.90
Original price
£191.90
£191.90
£191.90
-
£191.90
Current price
£191.90
The UTi32 is a high temperature thermal camera that specially designed for higher temperature applications including: iron forging, glassware & porcelain production, petrochemical, metallurgy, etc. It can quickly detect the temperature from -20℃ to 1000℃ with auto tracking and alarm for high/low spot. The UTi32 is a portable and lightweight thermal imager with 300K pixels digital camera and three image modes: thermal, visual image, fusion. It also supports PC software analysis, and more than 7 hours battery operation time. It is an affordable and reliable tool for high temperature inspection.
Temperature range: -20℃~1000℃ / -4℉ ~1832℉ IR resolution: 32x32 Display: 2.4" IPS (480*320) Digital camera resolution: 640x480 Image modes: Thermal, visual image, fusion Auto tracking and alarm for high/low spots Support PC software analysis Portable and lightweight More than 7 hours battery operation time With LED light
Specification
| Accuracy | ±2℃ or ±2% |
| Back Order Lead Time | 10 Days |
| Battery | Fixed Li-ion Battery |
| Battery Operation Time | ≥ 7 hours |
| Colour Palettes | 3 |
| Connectivity | USB-C |
| Digital Camera Resolution | 640x480 |
| Display | 2.4" IPS |
| Field of View | 30°×30° |
| Focus | Focus free |
| Frame Rate | ≤9Hz |
| Image Modes | Thermal, Visual, Fusion |
| IR Resolution | 32x32 |
| Spectral Range | 8~14µm |
| Temperature Alarm | Yes |
| Temperature Range | -20℃ to 1000℃ |
| Thermal Sensitivity | 0.15℃ |
