UTi720A Heavy Duty Thermal Imaging Camera Uni-T
by Uni-T
SKU 488629
MPN: UTi720A(260A)
Availability:
Only 4 left!
Original price
£306.19
-
Original price
£306.19
Original price
£306.19
Inc VAT
£306.19
-
£306.19
Current price
£306.19
Inc VAT

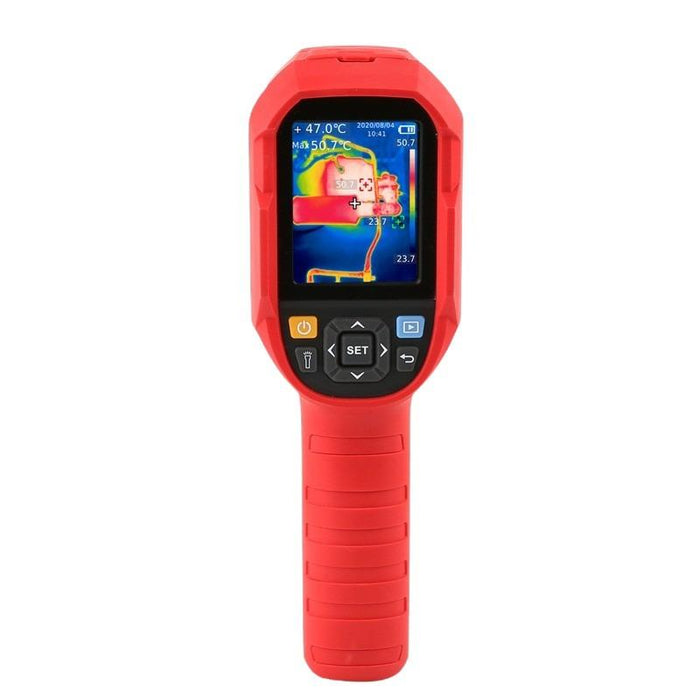

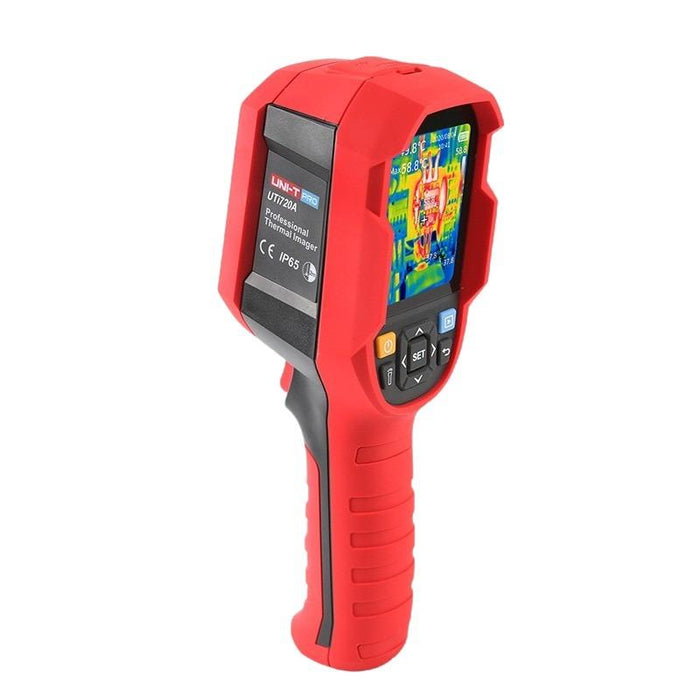

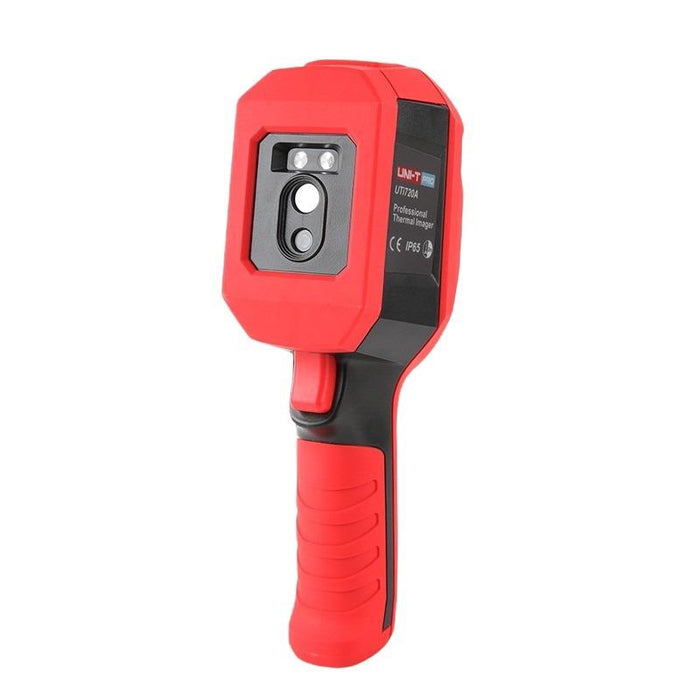

The UTi720A is a high quality thermal imager with 2.8" large display screen and high-definition IR resolution to notice thermal abnormalities easily. It is also equipped with a high brightness LED light and is certified to IP65, capable of withstanding a 2 meter drop.

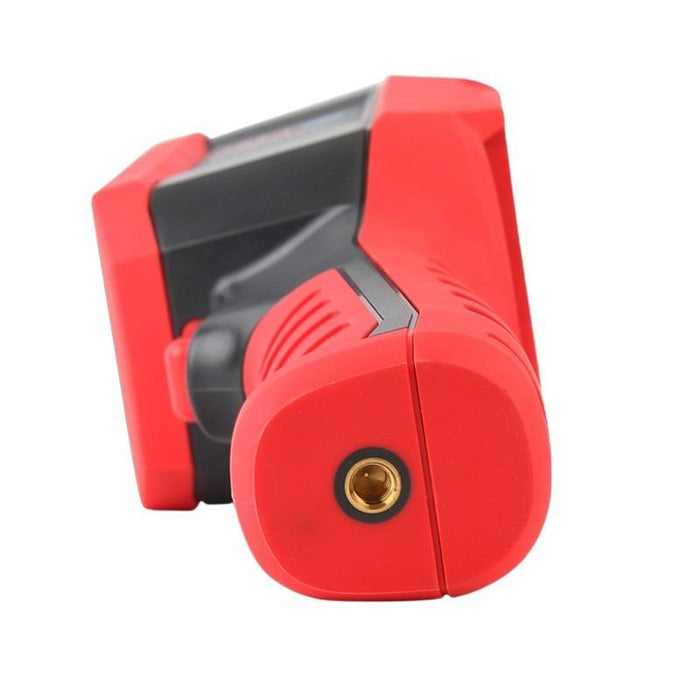

Durable and user-friendly 2.8" TFT display screen (320x240 Pixels) IR resolution: 256x192 Temperature measurement range: -20℃ to 550℃ / -4℉ to 1022℉ Auto alarm for high/low temperature Auto tracking for hot spot/cold spot On screen analyzer: 3 Points Image capture Image modess: Thermal, Visual image, Fusion, PIP Digital camera resolution: 640x480 Colour palettes: 7 (White hot, Black hot, Red hot Ironbow, Lava, Rainbow, Rainbow HC) LED flashlight PC software analysis and real-time image projection Rechargeable Li-ion battery 1/4" Tripod Mounting Hole IP65 2m drop proof
Specification
| Accuracy | ±2℃ or ±2% |
| Back order lead time | 10 Days |
| Battery | Fixed Li-ion Battery |
| Battery operation time | ≥ 7 hours |
| Colour palettes | 7 |
| Connectivity | USB-C |
| Display | 2.8" TFT LCD |
| Field of view | 56°×42° |
| Focus | Focus Free |
| Frame rate | ≤25Hz |
| Image modes | Thermal |
| Ip rating | IP65 |
| Ir resolution | 256x192 |
| On screen analyzer | 3 Points |
| Spatial resolution | 3.8mrad |
| Spectral range | 8~14µm |
| Temperature alarm | Yes |
| Temperature range | -10℃ to 400℃ |
| Thermal sensitivity | ≤50mK |
