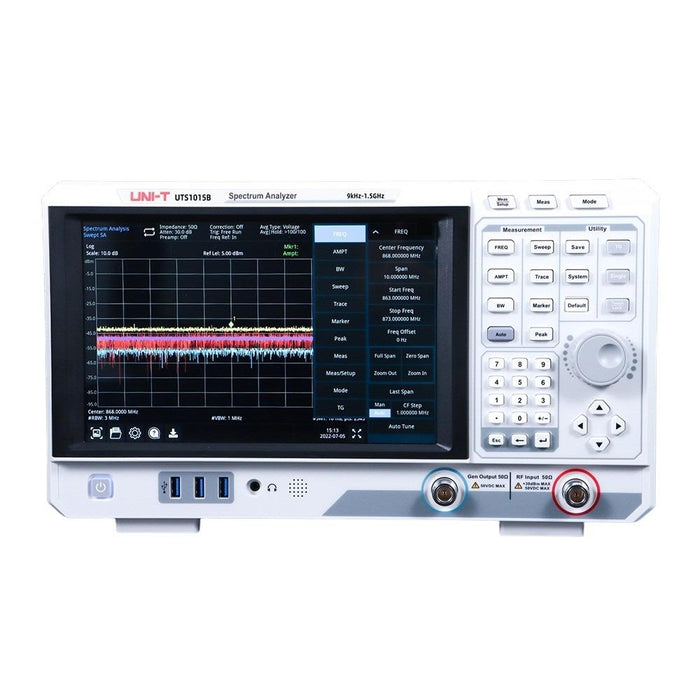

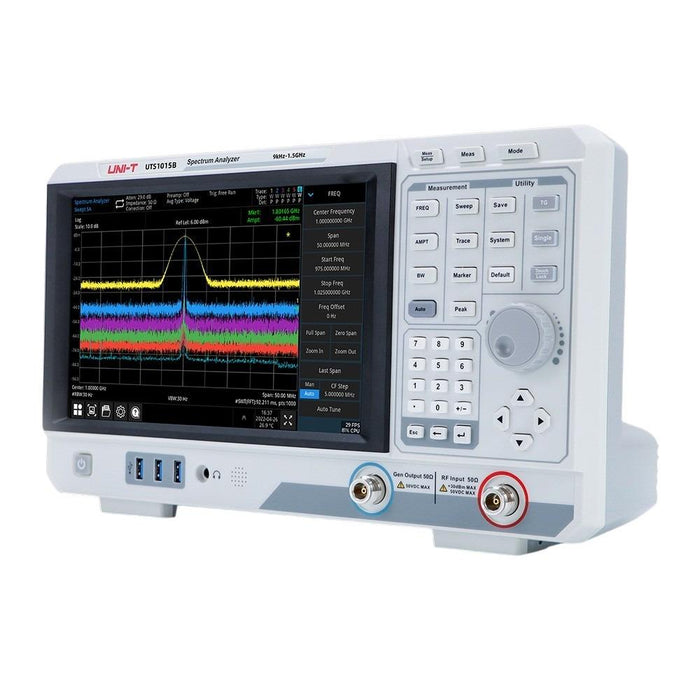

UTS1015B Touch Screen Spectrum Analyzer 9kHz-1.5GHz Uni-T

The UTS1015B is an affordable 1.5GHz spectrum analyzer for finding and improving EMI defects in advance. The model includes a tracking generator and features excellent selectivity, providing up to 10,001 sweep points and higher frequency resolution. The UTS1015T utilises a 10.1 inch high definition capacitive touch screen and 161dBm amplitude range with low bottom noise allowing accurate measurement of small signals.

Frequency measurement range: 9 kHz~1.5 GHz

Display average noise level can be as low as -161 dBm/Hz (typical value)

Phase noise <-98 dBc/Hz_Offset 10 kHz, typical value)

Full amplitude accuracy <0.7 dB

Up to 10001 scanning points

Minimum resolution bandwidth (RBW) 1Hz

Advanced function one key measurement (optional)

EMI Pre-compliance analysis function (optional)

Support analog demodulation analysis (optional)

Support digital demodulation analysis (optional)

Support tracking source output function

10.1 inch 1280x800 HD capacitive touch screen

Provide USB/LAN interface, support SCPI protocol
