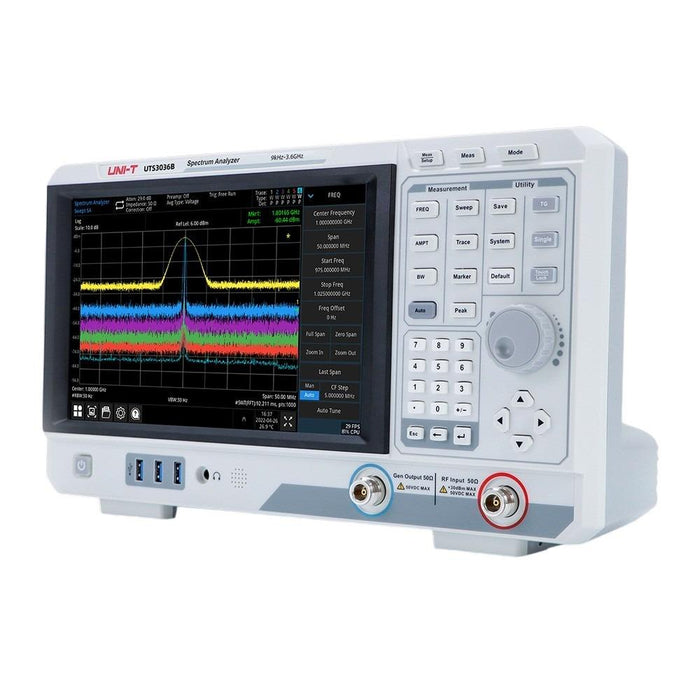

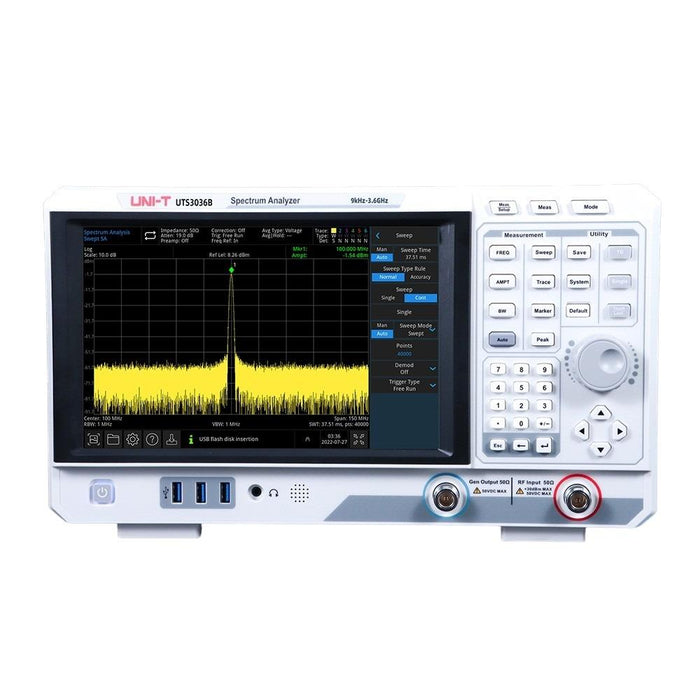

UTS3036B Touch Screen Spectrum Analyzer 9kHz-3.6GHz Uni-T

by Uni-T
SKU 488962


Out of stock
Sold out
Original price £2,496.17 - Original price £2,496.17
Original price
£2,496.17 Inc VAT
£2,496.17 - £2,496.17
Current price £2,496.17 Inc VAT
The UTS3036B is an affordable 3.6GHz spectrum analyzer for finding and improving EMI defects in advance. The model features excellent selectivity and provides up to 40,001 sweep point, providing higher frequency resolution, making it easier to capture signals that are difficult to detect. The UTS3036B utilises a 10.1 inch high definition capacitive touch screen, supporting multiple gesture operations, providing a user friendly experience.

  • Frequency measurement range: 9 kHz~3.6 GHz
  • Display average noise level can be as low as -161 dBm/Hz (typical value)
  • Phase noise <-98 dBc/Hz_Offset 10 kHz, typical value)
  • Full amplitude accuracy <0.7 dB
  • Up to 40001 scanning points
  • Minimum resolution bandwidth (RBW) 1Hz
  • Advanced function one key measurement (optional)
  • EMI Pre-compliance analysis function (optional)
  • Support analog demodulation analysis (optional)
  • Support digital demodulation analysis (optional)
  • Support tracking source output function (optional)
  • 10.1 inch 1280x800 HD capacitive touch screen
  • Provide USB/LAN interface, support
  • Specification
    Back order lead time 10 Days
