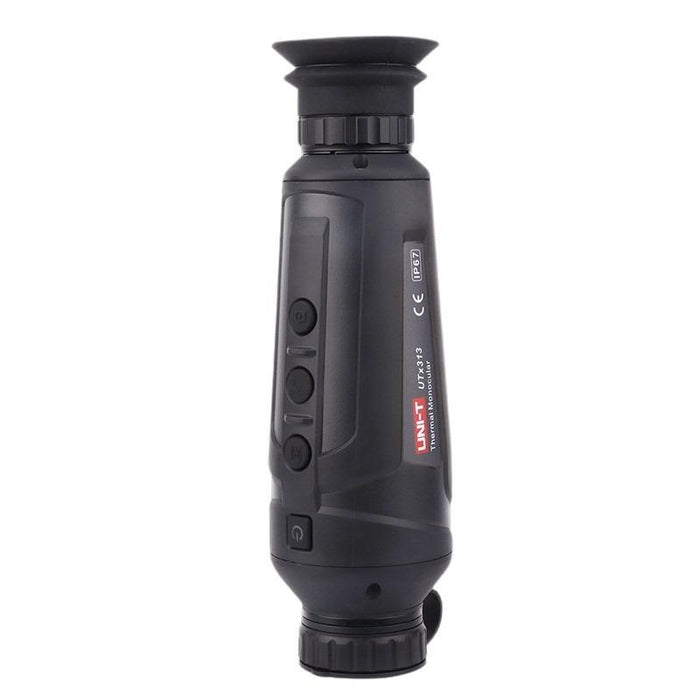

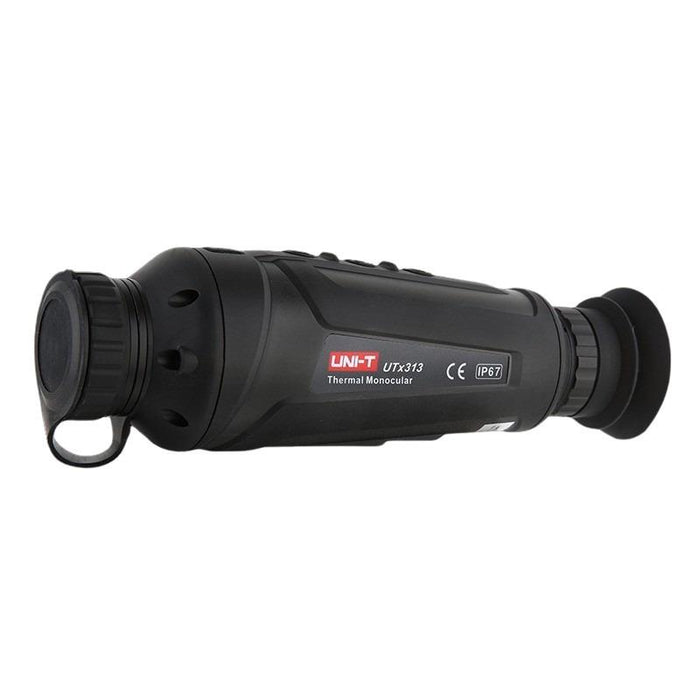

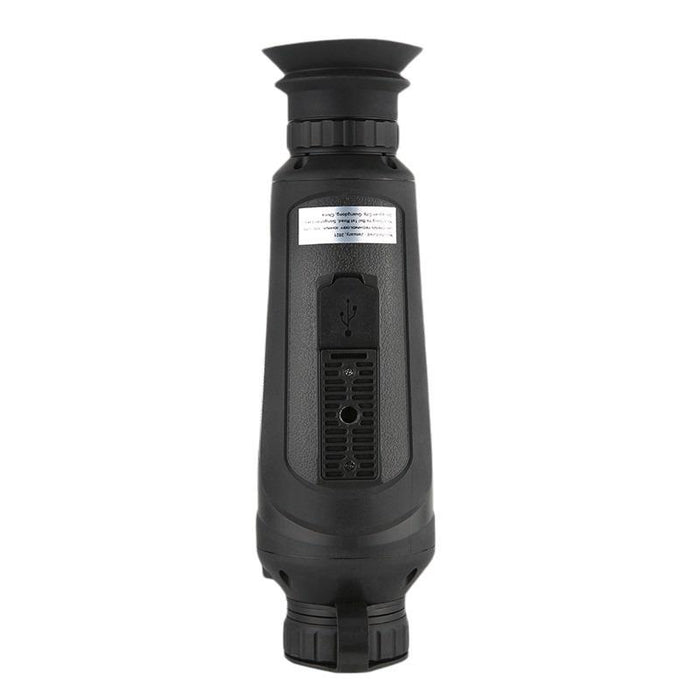

UTx313 Thermal Imaging Monocular 13.5mm Focal Length Uni-T

by Uni-T
SKU 488641

MPN: UTx313

Out of stock
Sold out
Original price £1,170.99 - Original price £1,170.99
Original price
£1,170.99 Inc VAT
£1,170.99 - £1,170.99
Current price £1,170.99 Inc VAT
The UTx313 is a lightweight and portable thermal imaging monocular that is equipped with a 384×288 infrared detector and a 1280×960 0.4”LCOS display. This thermal imaging monocular can take photos, storage and connect to the external screen for viewing. The 50Hz frame frequency enables users to observe moving objects without delay. With hot spot tracking take accurately location and tracking; It can be widely used in many applications: outdoor observation, hunting, navigation, security, camping & search, law enforcement etc.

  • Lightweight and portable
  • IR resolution: 384×288
  • Display: 1280×960 0.4”LCOS
  • Digital zoom: 2x, 4x / 1.0~4x continuous
  • Focal length: 13.5mm
  • Manual focus
  • Hot trace
  • Color palettes: 5 (Blackhot, Whitehot, Hottest, Ironbow, Rainbow)
  • PC software analysis
  • IP67
  • 2m drop proof
  • Specification
    Back order lead time 10 Days
    Battery 4000mAh Rechargeable Li-ion Battery
    Battery operation time ≥ 8 hours
    Colour palettes 5
    Connectivity USB-C
    Display 0.4” LCOS
    Field of view 20.3°×15.2°
    Focus Manual
    Frame rate ≤50Hz
    Ip rating IP67
    Ir resolution 384x288
    Spectral range 8~14µm
    Thermal sensitivity ≤40mK
