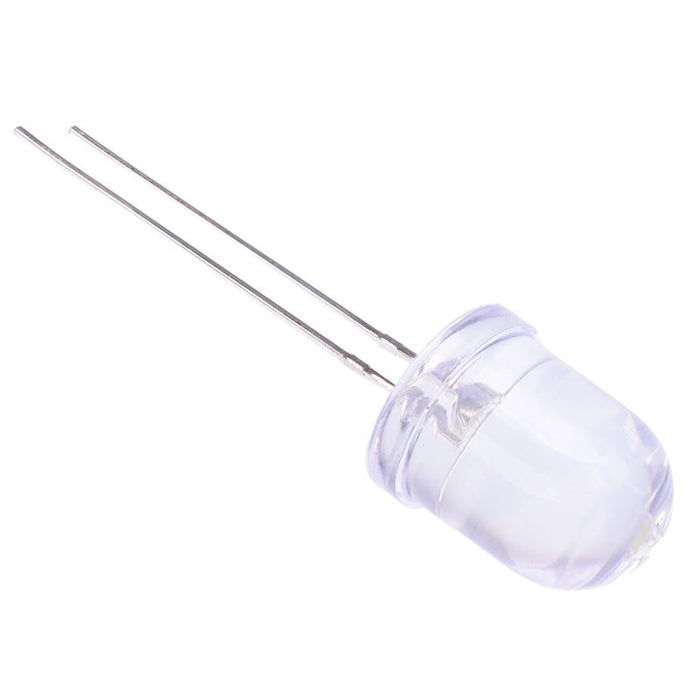

UV 10mm Water Clear LED 395nm 210mcd 20°

SKU 484886

MPN: 1004UVAC2R-Q5C

Availability:
1342 in stock
Original price £0.27 - Original price £0.27
Original price
£0.27 Inc VAT
£0.27 - £0.27
Current price £0.27 Inc VAT
Ultra violet 10mm LED featuring a water clear package and 210mcd luminous intensity suitable for applications including use as indicators, backlighting and illumination.

  • Luminous intensity: 210mcd
  • Wavelength: 395nm
  • Viewing angle: 20°
  • Forward voltage: 3.2V
  • Forward current: 20mA
  • Suitable for through-hole mounting
  • Cathode identified as the shorter lead
  • 2.54mm lead pitch
  • Water clear lens
  • Excellent weather resistance
  • Long lifespan
  • Specification
    Back order lead time 40 Days
    Colour UV
    Diameter 10mm
    Forward current 20mA
    Forward voltage 3.2V
    Lens colour Clear
    Lens shape Round
    Luminous intensity 210mcd
    Mode Constant
    Moq 5
    Mounting style Through Hole
    Number of pins 2
    Operating temperature -40°C to +80°C
    Package 10mm
    Packaging Bulk
    Power dissipation 80mW
    Viewing angle 20°
    Wavelength 395nm
