V000100 APEM 1 Key 20mm Stainless Steel Keypad IP65

by APEM
SKU 487462

MPN: V000100

Availability:
58 in stock
Original price £8.91 - Original price £8.91
Original price
£8.91
£8.91 - £8.91
Current price £8.91

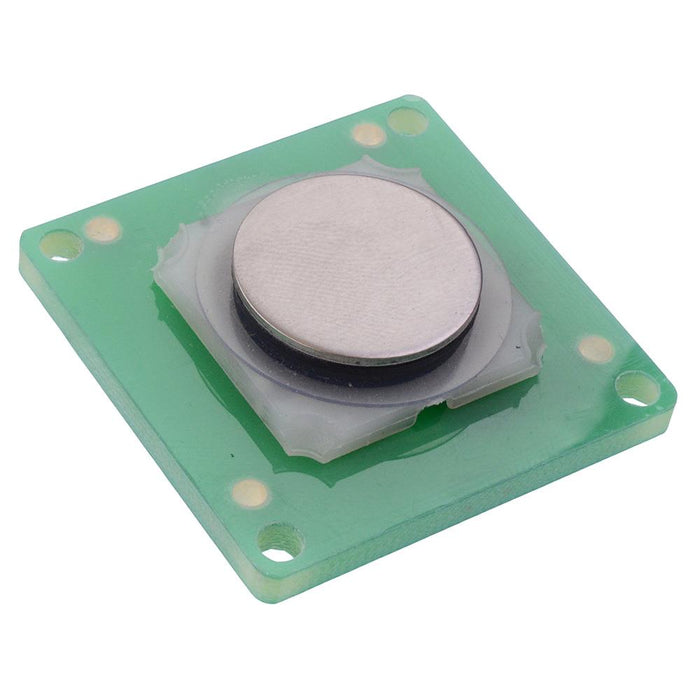

The V00100 is a stainless steel keypad by APEM, manufactured from 316L stainless steel, suitable for harsh environments. They keypad is designed for rear mounting and is sealed to IP65. The keypad features a 20mm diameter key and can be combined with other keys to form a complete keypad.

  • Rear mounting
  • Sealed to IP65
  • Material: 316L stainless steel
  • Output: matrix (NO contacts)
  • Max rating: 50mA 12VDC with resistive load
  • Contact force: 4N
  • Panel thickness: 2.5mm
  • Panel cut-out: 20mm
  • Dimensions: 40.0 x 40.0mm (length x width)
  • Specification
    Actuation Momentary
    Back Order Lead Time 10 Days
    Contact Configuration NO
    Contact Material Gold Plated
    Contact Rating 50mA 12VDC
    Current Rating 50mA
    Illuminated No
    Material Stainless Steel
    MOQ 1
    Mounting Style Panel
    Operating Temperature -20°C to +70°C
    Panel Cut Out 20mm
    Panel Thickness 1.5-2.5mm
    Product Series PR
    Protection Level IP65
    Switch Operation Off-(On)
    Terminal Type Connector
    Voltage Rating 12VDC
