Vandal Resistant 19mm Stainless Steel Momentary Push Button Switch 2A SPST
by Langir
SKU 550475
MPN: V19FP1S
Availability:
56 in stock
Original price
£4.70
-
Original price
£4.70
Original price
£4.70
Inc VAT
£4.70
-
£4.70
Current price
£4.70
Inc VAT

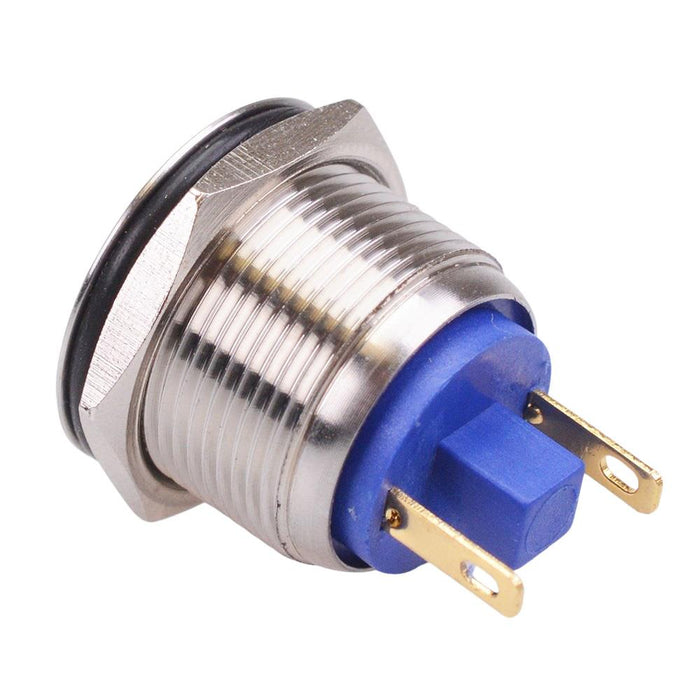

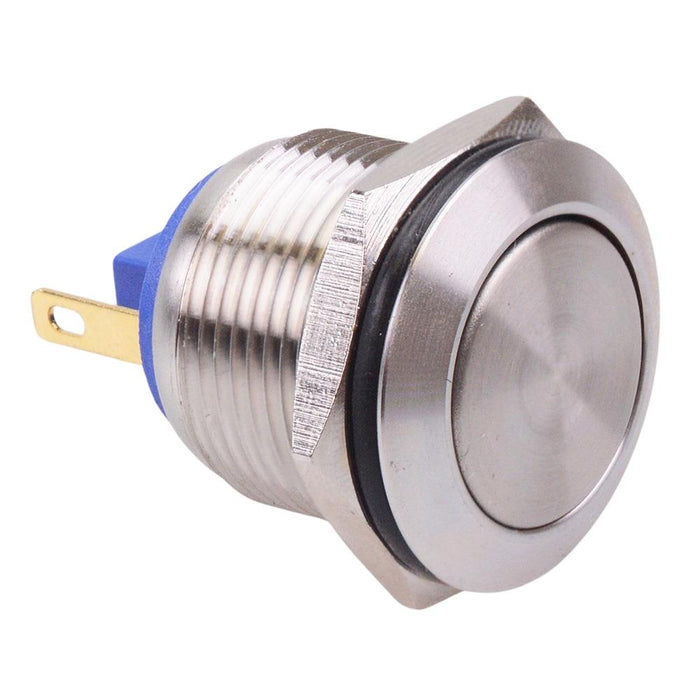

Vandal resistant push button switch offering excellent durability housed in attractive stainless steel design. The switch features NO contacts and a IP65 sealed construction, suitable for a wide range of applications.
Momentary action SPST contacts 19mm panel cut-out Stainless steel body material Solder terminals 2A 48VDC rating 1,000,000 cycles mechanical life
Specification
| Actuation | Momentary |
| Back order lead time | 45 Days |
| Contact configuration | SPST |
| Contact rating | 2A 48VDC |
| Current rating | 2A |
| Electrical life | 200,000 Cycles |
| Illuminated | No |
| Illumination colour | Non Illuminated |
| Material | Stainless Steel |
| Mounting style | Panel |
| Number of positions | 2 |
| Operating temperature | -20°C to +55°C |
| Panel cut out | 19mm |
| Protection level | IP65 |
| Switch operation | Off-(On) |
| Terminal type | Solder |
| Voltage rating | 48VDC |
